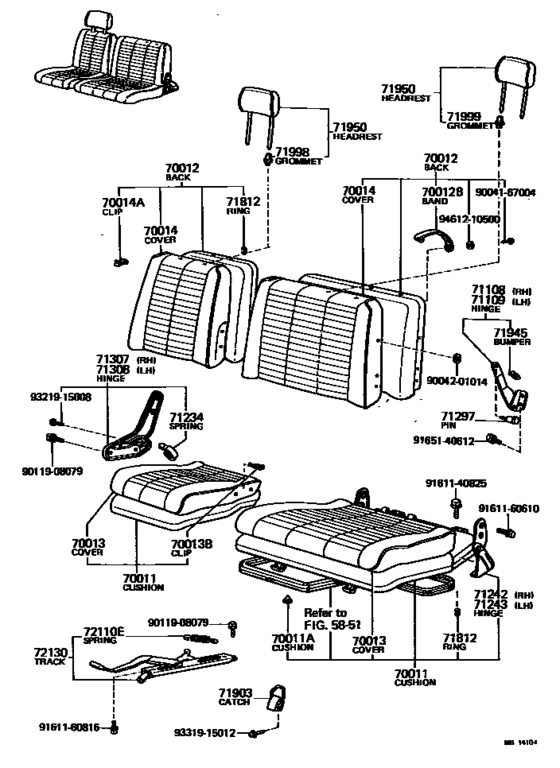

Seat & Seat Track ([05.1971 - 08.1974] (7105-7408)TR ; (7607-7909)T3) Diagram Toyota LITEACE
- Year
- 1971 - 1974
- Sales region
- General
- Frame
- KM10
- body
- TR
- ENGINE
- 3K
- Model
- LITEACE
- From
- 05.1971
- To
- 08.1974
- Vehicle Model
- LITEACE
- Driver's Position
- T3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
70011
|
70011
71410-87401-04 Cushion Assy, No.1 SeatNO.1 SEAT [05.1971 - 07.1973] KM10..TR RH. BLUE,BLUE |
71410-87401-04 |
US $345.07 |
||
| replacement | |||||
|
70011
|
70011
71410-87402-04
Cushion Assy, No.1 Seat
[05.1971 - 07.1973] KM10..TR RH. BLUE,BLUE |
71410-87402-04 |
— | ||
|
70011
|
70011
71410-87402-04
Cushion Assy, No.1 Seat
[07.1973 - 08.1974] KM10..TR RH. BLUE,BLUE |
71410-87402-04 |
— | ||
|
70011
|
70011
71410-87404
Cushion Assy, No.1 Seat
[10.1976 - 09.1979] KM1#..T3 RH. |
71410-87404 |
— | ||
|
70011
|
70011
71420-87401-04
Cushion Assy, No.1 Seat
[05.1971 - 08.1974] KM10..TR LH. BLUE,BLUE |
71420-87401-04 |
— | ||
|
70011
|
70011
71420-87405-04
Cushion Assy, No.1 Seat
[07.1976 - 10.1976] KM10..T3 LH. BLUE,BLUE |
71420-87405-04 |
— | ||
|
70011
|
70011
71420-87407
Cushion Assy, No.1 Seat
[10.1976 - 02.1978] KM10..T3 LH. |
71420-87407 |
— | ||
|
70011A
|
70011A
90541-10009 Cushion, Rubber (For Seat Cushion Assy)[05.1971 - 08.1974] KM10..TR |
90541-10009 |
US $2.77 |
||
|
70012
|
70012
71430-87401-04 Back Assy, No.1 SeatNO.1 SEAT [05.1971 - 07.1973] KM10..TR RH. BLUE,BLUE |
71430-87401-04 |
US $177.63 |
||
| replacement | |||||
|
70012
|
70012
71430-87402-04
Back Assy, No.1 Seat
[05.1971 - 07.1973] KM10..TR RH. BLUE,BLUE |
71430-87402-04 |
— | ||
|
70012
|
70012
71430-87402-04
Back Assy, No.1 Seat
[07.1973 - 08.1974] KM10..TR RH. BLUE,BLUE |
71430-87402-04 |
— | ||
|
70012
|
70012
71430-87404
Back Assy, No.1 Seat
[10.1976 - 09.1979] KM1#..T3 RH. |
71430-87404 |
— | ||
|
70012
|
70012
71440-87401-04
Back Assy, No.1 Seat
[05.1971 - 08.1974] KM10..TR LH. BLUE,BLUE |
71440-87401-04 |
— | ||
|
70012
|
70012
71440-87403-04
Back Assy, No.1 Seat
[07.1976 - 10.1976] KM10..T3 LH. BLUE,BLUE |
71440-87403-04 |
— | ||
|
70012
|
70012
71440-87405
Back Assy, No.1 Seat
[10.1976 - 02.1978] KM10..T3 LH. |
71440-87405 |
— | ||
|
70012B
|
70012B
58930-95700
Band, Engine Service Hole Cover Support
[12.1974 - 12.1976] KM10 L=210 |
58930-95700 |
— | ||
|
70012B
|
70012B
58930-95701 Band, Engine Service Hole Cover SupportENGINE SERVICE HOLE COVER SUPPORT [12.1976 - 02.1978] KM10 L=225 |
58930-95701 |
US $9.17 |
||
| replacement | |||||
|
70012B
|
70012B
58930-95701-01 Band Assy, Engine Service Hole Cover Support[12.1976 - 02.1978] KM10 L=225 |
58930-95701-01 |
US $8.59 |
||
|
70012B
|
70012B
58936-95700
Band, Engine Service Hole Cover Support
[05.1971 - 12.1974] KM10 |
58936-95700 |
— | ||
|
70013
|
70013
71071-87401-04
Cover Assy, No.1 Seat Cushion
[05.1971 - 08.1974] KM10..TR RH. BLUE,BLUE |
71071-87401-04 |
— | ||
|
70013
|
70013
71071-87403
Cover Assy, No.1 Seat Cushion
[10.1976 - 09.1979] KM1#..T3 RH. |
71071-87403 |
— | ||
|
70013
|
70013
71072-87401-04
Cover Assy, No.1 Seat Cushion
[05.1971 - 08.1974] KM10..TR LH. BLUE,BLUE |
71072-87401-04 |
— | ||
|
70013
|
70013
71072-87405
Cover Assy, No.1 Seat Cushion
[10.1976 - 02.1978] KM10..T3 LH. |
71072-87405 |
— | ||
|
70013B
|
70013B
90044-67010
Clip, Spring, No.1
[05.1971 - 08.1974] KM10..TR |
90044-67010 |
— | ||
|
70014
|
70014
71073-87401-04
Cover Assy, No.1 Seat Back
[05.1971 - 08.1974] KM10..TR RH. BLUE,BLUE |
71073-87401-04 |
— | ||
|
70014
|
70014
71073-87403
Cover Assy, No.1 Seat Back
[10.1976 - 09.1979] KM1#..T3 RH. |
71073-87403 |
— | ||
|
70014
|
70014
71074-87401-04
Cover Assy, No.1 Seat Back
[05.1971 - 08.1974] KM10..TR LH. BLUE,BLUE |
71074-87401-04 |
— | ||
|
70014
|
70014
71074-87403
Cover Assy, No.1 Seat Back
[10.1976 - 02.1978] KM10..T3 LH. |
71074-87403 |
— | ||
|
70014A
|
70014A
71811-87401
Clip, Spring, No.1
[05.1971 - 08.1974] KM10..TR |
71811-87401 |
— | ||
|
71108
|
71108
71108-87401
Hinge Sub-Assy, Front Seat Back, Upper Rh
[05.1971 - 08.1974] KM10..TR |
71108-87401 |
— | ||
|
71109
|
71109
71109-87401
Hinge Sub-Assy, Front Seat Back, Upper Lh
[05.1971 - 08.1974] KM10..TR |
71109-87401 |
— | ||
|
71234
|
71234
71234-87401
Spring, Seat Back Stop, Rh
[05.1971 - 08.1974] KM10..TR |
71234-87401 |
— | ||
|
71242
|
71242
71301-95700
Hinge, Passenger Seat Back, Rh
[05.1971 - 02.1978] KM10 |
71301-95700 |
— | ||
|
71243
|
71243
71302-95700
Hinge, Passenger Seat Back, Lh
[05.1971 - 02.1978] KM10 |
71302-95700 |
— | ||
|
71297
|
71297
71297-87401 Pin, Passenger Seat Back Support[05.1971 - 08.1974] KM10..TR |
71297-87401 |
US $3.49 |
||
|
71307
|
71307
72501-87401
Hinge Sub-Assy, Driver Seat, Rh
[05.1971 - 08.1974] KM10..TR |
72501-87401 |
— | ||
|
71308
|
71308
72502-87401
Hinge Sub-Assy, Driver Seat, Lh
[05.1971 - 08.1974] KM10..TR |
72502-87401 |
— | ||
|
71812
|
71812
71812-87401 Clip (For Front Seat Cushion Cover)[05.1971 - 08.1974] KM10..TR |
71812-87401 |
US $3.06 |
||
|
71903
|
71903
71901-95010 Catch Sub-Assy, Seat Cushion, RearSEAT CUSHION, FRONT [05.1971 - 08.1973] KM10 |
71901-95010 |
US $11.94 |
||
| replacement | |||||
|
71903
|
71903
71901-95016 Catch Sub-Assy, Seat Cushion, RearSEAT CUSHION, REAR [05.1971 - 08.1973] KM10 |
71901-95016 |
US $11.36 |
||
|
71903
|
71903
71901-95016 Catch Sub-Assy, Seat Cushion, RearSEAT CUSHION, REAR [08.1973 - 09.1979] KM1# |
71901-95016 |
US $11.36 |
||
|
71945
|
71945
71298-87401
Bumper, Seat Back
[05.1971 - 08.1974] KM10..TR |
71298-87401 |
— | ||
|
71950
|
71950
71950-87401-04 Headrest Assy, Front SeatFRONT SEAT [05.1971 - 08.1974] KM10..TR BLUE,BLUE |
71950-87401-04 |
US $99.01 |
||
| replacement | |||||
|
71950
|
71950
71950-87403-04
Headrest Assy, Front Seat
[05.1971 - 08.1974] KM10..TR BLUE,BLUE |
71950-87403-04 |
— | ||
|
71950
|
71950
71950-87403-01
Headrest Assy, Front Seat
[10.1976 - 09.1979] KM1#..T3 BLACK,BLACK |
71950-87403-01 |
— | ||
|
71950
|
71950
71950-87403-04
Headrest Assy, Front Seat
[07.1976 - 10.1976] KM10..T3 BLUE,BLUE |
71950-87403-04 |
— | ||
|
71998
|
71998
71998-87401
Grommet, Front Seat Headrest, Rh
[05.1971 - 08.1974] KM10..TR |
71998-87401 |
— | ||
|
71999
|
71999
71998-87401
Grommet, Front Seat Headrest, Rh
[05.1971 - 08.1974] KM10..TR |
71998-87401 |
— | ||
|
72110E
|
72110E
90506-14147 Spring, Tension, No.1 (For Seat Track)TENSION, NO.1 (FOR SEAT TRACK) [05.1971 - 09.1979] KM1# |
90506-14147 |
US $6.55 |
||
|
72130
|
72130
72120-95701
Track Assy, Rh Seat, Inner
[05.1971 - 09.1971] KM10 |
72120-95701 |
— | ||
|
72130
|
72130
72120-95702
Track Assy, Rh Seat, Inner
[09.1971 - 09.1979] KM1# |
72120-95702 |
— | ||
|
9004167004
|
9004167004
90041-67004 New Genuine Part |
90041-67004 |
US $1.89 |
||
|
9004201014
|
9004201014
90042-01014
New Genuine Part
|
90042-01014 |
— | ||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
|
9161140825
|
9161140825
91611-40825
Bolt(For Clutch Release Cylinder Setting)
|
91611-40825 |
— | ||
| replacement | |||||
|
9161140825
|
9161140825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9321915008
|
9321915008
93219-15008
New Genuine Part
|
93219-15008 |
— | ||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
|
9461210500
|
9461210500
94612-10500 WASHERPLATE |
94612-10500 |
US $1.25 |
||
