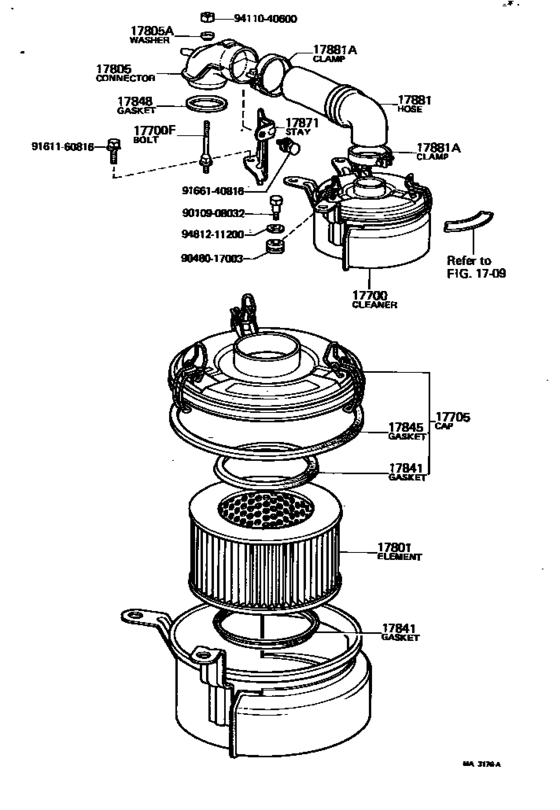

Air Cleaner ([02.1978 - 09.1979] (7802-7909)) Diagram Toyota LITEACE
- Year
- 1978 - 1979
- Sales region
- General
- Frame
- KM11
- body
- TR
- ENGINE
- 4KJ
- Model
- LITEACE
- From
- 02.1978
- To
- 09.1979
- Vehicle Model
- LITEACE
- Driver's Position
- T3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-13030 Cleaner Assy, AirAIR [02.1978 - 09.1979] 4KJ..KM11 |
17700-13030 |
US $243.15 |
||
| replacement | |||||
|
17700
|
17700
17700-13031
Cleaner Assy, Air
[02.1978 - 09.1979] 4KJ..KM11 |
17700-13031 |
— | ||
|
17700F
|
17700F
90116-06222 Bolt, Stud(For Air Cleaner Setting)[11.1975 - 09.1979] 3KJ,4KJ..KM1# L=80,S=12&28 |
90116-06222 |
US $3.32 |
||
|
17705
|
17705
17705-24250 Cap Sub-Assy, Air CleanerAIR CLEANER [02.1978 - 09.1979] 4KJ..KM11 |
17705-24250 |
US $49.21 |
||
| replacement | |||||
|
17705
|
17705
17705-24251
Cap Sub-Assy, Air Cleaner
[02.1978 - 09.1979] 4KJ..KM11 |
17705-24251 |
— | ||
|
17801
|
17801
17801-23020 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [05.1971 - 09.1979] 3K#,4KJ..KM1# |
17801-23020 |
US $12.06 |
||
|
17805
|
17805
17861-13010
Connector Sub-Assy, Intake Air
[02.1978 - 09.1979] 4KJ..KM11 |
17861-13010 |
— | ||
|
17805A
|
17805A
90210-06023
Washer, Seal(For Air Cleaner)
[04.1974 - 09.1979] 3K#,4KJ..KM1# |
90210-06023 |
— | ||
|
17841
|
17841
17841-24030 Gasket, Filter ElementFILTER ELEMENT [05.1971 - 09.1979] 3K#,4KJ..KM1# |
17841-24030 |
US $14.41 |
||
|
17845
|
17845
17845-24030
Gasket, Air Cleaner Cap
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
17845-24030 |
— | ||
|
17848
|
17848
90430-63187
Gasket, Air Cleaner To Carburetor
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90430-63187 |
— | ||
|
17871
|
17871
17871-13010 Stay, Air Connector[02.1978 - 09.1979] 4KJ..KM11 |
17871-13010 |
US $33.92 |
||
| replacement | |||||
|
17871
|
17871
17313-13010
Stay, Air Connector
[02.1978 - 09.1979] 4KJ..KM11 |
17313-13010 |
— | ||
|
17881
|
17881
17881-13020 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [02.1978 - 09.1979] 4KJ..KM11 |
17881-13020 |
US $59.55 |
||
|
17881A
|
17881A
90460-78001
Clamp(For Air Cleaner Hose, No.1)
[02.1978 - 09.1979] 4KJ..KM11 |
90460-78001 |
— | ||
|
9010908032
|
9010908032
90109-08032
New Genuine Part
|
90109-08032 |
— | ||
|
9048017003
|
9048017003
90480-17003
New Genuine Part
|
90480-17003 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9166140816
|
9166140816
91661-40816
New Genuine Part
|
91661-40816 |
— | ||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9461211200
|
9461211200
94612-11200 Washer |
94612-11200 |
from US $0.72 |
||
