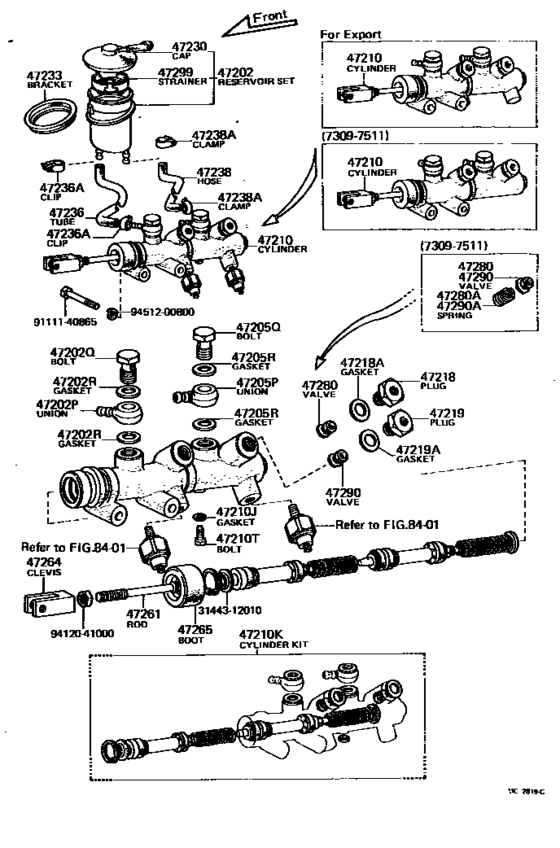

Brake Master Cylinder ([09.1973 - 09.1979] (7309-7909)) Diagram Toyota LITEACE
- Year
- 1978 - 1979
- Sales region
- Europe
- Frame
- KM11
- body
- V
- ENGINE
- 4KJ
- Model
- LITEACE
- From
- 02.1978
- To
- 09.1979
- Vehicle Model
- LITEACE
- Driver's Position
- HRF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47202
|
47202
47202-27012
Reservoir Sub-Assy, Brake Master Cylinder
[09.1973 - 09.1979] KM1# |
47202-27012 |
— | ||
|
47202P
|
47202P
90405-10003 Union, Reservoir(For Brake Master Cylinder Side)[12.1977 - 09.1979] KM1# |
90405-10003 |
US $24.46 |
||
|
47202Q
|
47202Q
90401-16002 Bolt, Reservoir Union(For Brake Master Cylinder Side)[12.1977 - 09.1979] KM1# |
90401-16002 |
US $8.01 |
||
|
47202R
|
47202R
90430-16242 Gasket, W/head Straight Screw Plug[10.1974 - 09.1979] KM1# |
90430-16242 |
from US $0.82 |
||
|
47205P
|
47205P
90405-10003 Union, Reservoir(For Brake Master Cylinder Side)[12.1977 - 09.1979] KM1# |
90405-10003 |
US $24.46 |
||
|
47205Q
|
47205Q
90401-16002 Bolt, Reservoir Union(For Brake Master Cylinder Side)[12.1977 - 09.1979] KM1# |
90401-16002 |
US $8.01 |
||
|
47205R
|
47205R
90430-16242 Gasket, W/head Straight Screw Plug[10.1974 - 09.1979] KM1# |
90430-16242 |
from US $0.82 |
||
|
47210
|
47210
47210-27012 Cylinder Assy, Master, W/o BoosterMASTER, W/O BOOSTER [09.1973 - 09.1979] KM1# L/BOOSTER |
47210-27012 |
US $463.01 |
||
|
47210J
|
47210J
90430-06014
Gasket(For Master Cylinder)
[09.1973 - 09.1979] KM1# |
90430-06014 |
— | ||
|
47210K
|
47210K
04493-27011
Cylinder Kit, Brake Master
[11.1975 - 09.1979] KM1# L/BOOSTER |
04493-27011 |
— | ||
|
47210T
|
47210T
90109-06008 Bolt(For Brake Master Cylinder)[08.1979 - 09.1979] KM11 |
90109-06008 |
US $0.44 |
||
|
47210T
|
47210T
90109-06011
Bolt(For Brake Master Cylinder)
[09.1973 - 08.1979] KM1# |
90109-06011 |
— | ||
|
47218
|
47218
47218-27010
Plug, Master Cylinder Fluid Outlet
[12.1975 - 09.1979] KM1# |
47218-27010 |
— | ||
|
47218A
|
47218A
90430-16242 Gasket, W/head Straight Screw Plug[11.1975 - 09.1979] KM1# |
90430-16242 |
from US $0.82 |
||
|
47219
|
47219
47218-27010
Plug, Master Cylinder Fluid Outlet
[12.1975 - 09.1979] KM1# |
47218-27010 |
— | ||
|
47219A
|
47219A
90430-16242 Gasket, W/head Straight Screw Plug[11.1975 - 09.1979] KM1# |
90430-16242 |
from US $0.82 |
||
|
47230
|
47230
47230-27010 Cap Assy, Brake Master Cylinder Reservoir FillerBRAKE MASTER CYLINDER RESERVOIR FILLER [05.1971 - 09.1979] KM1# |
47230-27010 |
US $10.05 |
||
|
47233
|
47233
47226-27010
Bracket, Reservoir
[05.1971 - 09.1979] KM1# |
47226-27010 |
— | ||
|
47236
|
47236
47234-27011
Tube, Reservoir Brake
[09.1973 - 09.1979] KM1# |
47234-27011 |
— | ||
|
47236A
|
47236A
90460-16069
Clip(For Reservoir Tube)
[05.1971 - 09.1979] KM1# |
90460-16069 |
— | ||
|
47238
|
47238
47235-27021
Hose, Master Cylinder Bridge
[09.1973 - 09.1979] KM1# L/BOOSTER |
47235-27021 |
— | ||
|
47238A
|
47238A
90460-16069
Clip(For Reservoir Tube)
[09.1973 - 09.1979] KM1# |
90460-16069 |
— | ||
|
47261
|
47261
47261-27010
Rod, Master Cylinder Push
[09.1973 - 09.1979] KM1# L=80.0,L/BOOSTER |
47261-27010 |
— | ||
|
47264
|
47264
47264-12010
Clevis, Master Cylinder Push Rod
[09.1973 - 09.1979] KM1# |
47264-12010 |
— | ||
|
47265
|
47265
47265-27010 Boot, Master CylinderMASTER CYLINDER [09.1973 - 09.1979] KM1# L/BOOSTER |
47265-27010 |
US $4.22 |
||
|
47280
|
47280
47280-20020
Valve Assy, Brake Master Cylinder Outlet Check
[11.1975 - 09.1979] KM1# |
47280-20020 |
— | ||
| replacement | |||||
|
47280
|
47280
47280-20030 Valve Assy, Brake Master Cylinder Outlet Check[11.1975 - 09.1979] KM1# |
47280-20030 |
US $5.97 |
||
|
47290
|
47290
47280-20020
Valve Assy, Brake Master Cylinder Outlet Check
[11.1975 - 09.1979] KM1# |
47280-20020 |
— | ||
| replacement | |||||
|
47290
|
47290
47280-20030 Valve Assy, Brake Master Cylinder Outlet Check[11.1975 - 09.1979] KM1# |
47280-20030 |
US $5.97 |
||
|
47299
|
47299
47299-22010
Strainer, Brake Master Cylinder Reservoir
[09.1973 - 09.1979] KM1# |
47299-22010 |
— | ||
|
3144312010
|
3144312010
31443-12010 New Genuine Part |
31443-12010 |
US $4.37 |
||
|
9111140865
|
9111140865
91111-40865 Bolt, Accelerator Pedal Stopper |
91111-40865 |
US $1.75 |
||
| replacement | |||||
|
9111140865
|
9111140865
91131-40865 Bolt, Accelerator Pedal Stopper |
91131-40865 |
US $1.89 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
