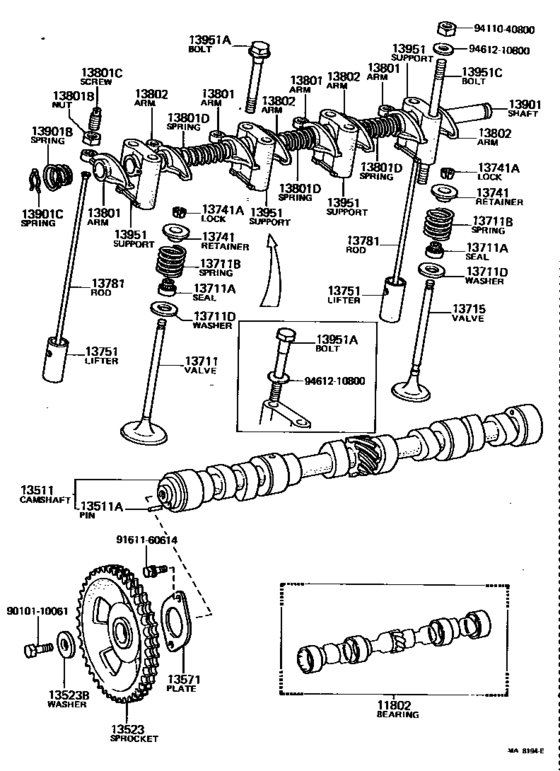

Camshaft & Valve ([10.1974 - 09.1979] (7410-7909)) Diagram Toyota LITEACE
- Year
- 1978 - 1979
- Sales region
- Europe
- Frame
- KM11
- body
- V
- ENGINE
- 4KJ
- Model
- LITEACE
- From
- 02.1978
- To
- 09.1979
- Vehicle Model
- LITEACE
- Driver's Position
- HRF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11802
|
11802
11802-22010 Bearing Set, CamshaftCAMSHAFT [05.1971 - 09.1979] 3K#,4KJ..KM1# STD |
11802-22010 |
US $63.48 |
||
| replacement | |||||
|
11802
|
11802
11802-13030 Bearing Set, Camshaft[05.1971 - 09.1979] 3K#,4KJ..KM1# STD |
11802-13030 |
from US $24.49 |
||
|
11802
|
11802
11804-22010 Bearing Set, CamshaftCAMSHAFT [05.1971 - 09.1979] 3K#,4KJ..KM1# U/S 0.25 |
11804-22010 |
US $77.17 |
||
| replacement | |||||
|
11802
|
11802
11804-13030 Bearing Set, Camshaft[05.1971 - 09.1979] 3K#,4KJ..KM1# U/S 0.25 |
11804-13030 |
US $70.32 |
||
|
13511
|
13511
13501-13010
Camshaft
[05.1977 - 09.1979] 3KJ,4KJ..KM1# |
13501-13010 |
— | ||
| replacement | |||||
|
13511
|
13511
13501-13012
Camshaft
[05.1977 - 09.1979] 3KJ,4KJ..KM1# |
13501-13012 |
— | ||
|
13511A
|
13511A
90250-05121 Pin, Straight, No.3(For Camshaft Knock)[05.1971 - 09.1979] 3K#,4KJ..KM1# L=15,OD=5,L=15,OD=5 |
90250-05121 |
from US $1.19 |
||
|
13523
|
13523
13523-22010 Gear Or Sprocket, Camshaft TimingCAMSHAFT TIMING [12.1972 - 09.1979] 3K#,4KJ..KM1# N=36 |
13523-22010 |
US $96.10 |
||
|
13523B
|
13523B
90201-10489 Washer, Plate(For Timing Gear)[06.1972 - 09.1979] 3K#,4KJ..KM1# |
90201-10489 |
US $2.87 |
||
|
13571
|
13571
13571-13010
Plate, Camshaft Thrust
[05.1977 - 09.1979] 3KJ,4KJ..KM1# |
13571-13010 |
— | ||
|
13711
|
13711
13711-24011 Valve, Intake[10.1974 - 09.1979] 3K#,4KJ..KM1# |
13711-24011 |
from US $13.77 |
||
|
13711A
|
13711A
90913-02023 Seal Or Ring, O(For Valve Stem Oil)[04.1977 - 09.1979] 3KJ,4KJ..KM1# |
90913-02023 |
US $9.26 |
||
|
13711B
|
13711B
90501-42293
Spring, Compression(For Inner)
[05.1971 - 09.1979] 3K#,4KJ..KM1# WD=4.2,CW=6.5 |
90501-42293 |
— | ||
|
13711D
|
13711D
90201-16002 Washer, Plate(For Valve Spring Seat)[10.1975 - 09.1979] 3K#,4KJ..KM1# |
90201-16002 |
US $1.93 |
||
|
13715
|
13715
13715-24012
Valve, Exhaust
[10.1974 - 09.1979] 3K#,4KJ..KM1# |
13715-24012 |
— | ||
|
13741
|
13741
13741-24020
Retainer, Valve Spring
[10.1974 - 09.1979] 3K#,4KJ..KM1# |
13741-24020 |
— | ||
|
13741A
|
13741A
90913-03005 Lock, Valve Spring Retainer[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90913-03005 |
US $3.84 |
||
|
13751
|
13751
13751-22013
Lifter, Valve
[06.1976 - 09.1979] 3KJ,4KJ..KM1# STD |
13751-22013 |
— | ||
| replacement | |||||
|
13751
|
13751
13751-22014
Lifter, Valve
[06.1976 - 09.1979] 3KJ,4KJ..KM1# STD |
13751-22014 |
— | ||
|
13751
|
13751
13755-22013
Lifter, Valve
[06.1976 - 09.1979] 3KJ,4KJ..KM1# 0/S 0.05 |
13755-22013 |
— | ||
| replacement | |||||
|
13751
|
13751
13755-22014
Lifter, Valve
[06.1976 - 09.1979] 3KJ,4KJ..KM1# 0/S 0.05 |
13755-22014 |
— | ||
|
13781
|
13781
13781-13010
Rod, Valve Push
[02.1978 - 09.1979] 4KJ..KM11 |
13781-13010 |
— | ||
| replacement | |||||
|
13781
|
13781
13781-13020 Rod, Valve Push[02.1978 - 09.1979] 4KJ..KM11 |
13781-13020 |
US $9.86 |
||
|
13801
|
13801
13811-22011 Arm Sub-Assy, Valve Rocker, No.1[05.1971 - 09.1979] 3K#,4KJ..KM1# |
13811-22011 |
US $27.08 |
||
|
13801B
|
13801B
90170-08005 Nut, Hexagon(For Valve Adjusting)[02.1979 - 09.1979] 4KJ..KM11 |
90170-08005 |
US $2.51 |
||
|
13801B
|
13801B
90170-08094
Nut, Hexagon(For Valve Adjusting)
[05.1971 - 02.1979] 3K#,4KJ..KM1# |
90170-08094 |
— | ||
| replacement | |||||
|
13801B
|
13801B
90170-08005 Nut, Hexagon(For Valve Adjusting)[05.1971 - 02.1979] 3K#,4KJ..KM1# |
90170-08005 |
US $2.51 |
||
|
13801C
|
13801C
90913-05013 Screw, Valve Adjusting[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90913-05013 |
US $4.51 |
||
| replacement | |||||
|
13801C
|
13801C
90913-05020 Screw, Valve Adjusting[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90913-05020 |
from US $4.23 |
||
|
13801D
|
13801D
90501-11008 Spring, Compression(For Rocker Arm)COMPRESSION(FOR ROCKER ARM) [03.1979 - 09.1979] 4KJ..KM11 |
90501-11008 |
US $2.62 |
||
| replacement | |||||
|
13801D
|
13801D
90501-14064 Spring, Compression(For Rocker Arm)[03.1979 - 09.1979] 4KJ..KM11 |
90501-14064 |
US $2.18 |
||
|
13801D
|
13801D
90501-12008 Spring, Compression(For Rocker Arm)[02.1976 - 03.1979] 3KJ,4KJ..KM1# |
90501-12008 |
US $2.18 |
||
| replacement | |||||
|
13801D
|
13801D
90501-14064 Spring, Compression(For Rocker Arm)[02.1976 - 03.1979] 3KJ,4KJ..KM1# |
90501-14064 |
US $2.18 |
||
|
13802
|
13802
13812-22011 Arm Sub-Assy, Valve Rocker, No.2[05.1971 - 09.1979] 3K#,4KJ..KM1# |
13812-22011 |
US $27.08 |
||
|
13901
|
13901
13901-22010 Shaft Sub-Assy, Valve Rocker, No.1VALVE ROCKER, NO.1 [05.1971 - 03.1979] 3K#,4KJ..KM1# |
13901-22010 |
US $32.18 |
||
| replacement | |||||
|
13901
|
13901
13901-22011 Shaft Sub-Assy, Valve Rocker, No.1[05.1971 - 03.1979] 3K#,4KJ..KM1# |
13901-22011 |
from US $36.34 |
||
|
13901
|
13901
13901-22011 Shaft Sub-Assy, Valve Rocker, No.1[03.1979 - 09.1979] 4KJ..KM11 |
13901-22011 |
from US $36.34 |
||
|
13901B
|
13901B
90502-14022 Spring, Conical(For Valve Rocker Shaft)[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90502-14022 |
US $2.62 |
||
|
13901C
|
13901C
90524-13009 Spring, Retainer(For Valve Rocker Shaft)[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90524-13009 |
US $1.31 |
||
|
13951
|
13951
13951-24010 Support, Valve Rocker, No.1VALVE ROCKER, NO.1 [07.1975 - 03.1979] 3K#,4KJ..KM1# L/OIL HOLE |
13951-24010 |
US $24.46 |
||
| replacement | |||||
|
13951
|
13951
13952-24H00
Support, Valve Rocker, No.1
[07.1975 - 03.1979] 3K#,4KJ..KM1# L/OIL HOLE |
13952-24H00 |
— | ||
|
13951
|
13951
13951-24012
Support, Valve Rocker, No.1
[03.1979 - 09.1979] 4KJ..KM11 L/OIL HOLE |
13951-24012 |
— | ||
| replacement | |||||
|
13951
|
13951
13952-24012 Support, Valve Rocker, No.1[03.1979 - 09.1979] 4KJ..KM11 L/OIL HOLE |
13952-24012 |
US $17.47 |
||
|
13951
|
13951
13952-24010 Support, Valve Rocker, No.1VALVE ROCKER, NO.2 [07.1975 - 03.1979] 3K#,4KJ..KM1# W/OIL HOLE |
13952-24010 |
US $24.46 |
||
| replacement | |||||
|
13951
|
13951
13952-24H00
Support, Valve Rocker, No.1
[07.1975 - 03.1979] 3K#,4KJ..KM1# W/OIL HOLE |
13952-24H00 |
— | ||
|
13951
|
13951
13952-24012 Support, Valve Rocker, No.1[03.1979 - 09.1979] 4KJ..KM11 W/OIL HOLE |
13952-24012 |
US $17.47 |
||
|
13951A
|
13951A
90105-08028 Bolt(For Rocker Support Set)[03.1979 - 09.1979] 4KJ..KM11 |
90105-08028 |
US $3.94 |
||
|
13951A
|
13951A
90910-01011 Bolt(For Rocker Support Set)[07.1975 - 03.1979] 3K#,4KJ..KM1# |
90910-01011 |
US $2.33 |
||
|
13951C
|
13951C
90116-08082 Bolt, Stud(For Rocker Support)[03.1979 - 09.1979] 4KJ..KM11 L=100,S=10&54 |
90116-08082 |
US $1.31 |
||
|
13951C
|
13951C
90116-08127 Bolt, Stud(For Head To Cylinder Head Cover)STUD(FOR ROCKER SUPPORT) [05.1971 - 03.1979] 3K#,4KJ..KM1# L=96,S=10&50 |
90116-08127 |
US $3.06 |
||
|
9010110061
|
9010110061
90101-10061 Bolt(For Backing Plate To Rear Axle Housing Setting) |
90101-10061 |
US $5.73 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.84 |
||
