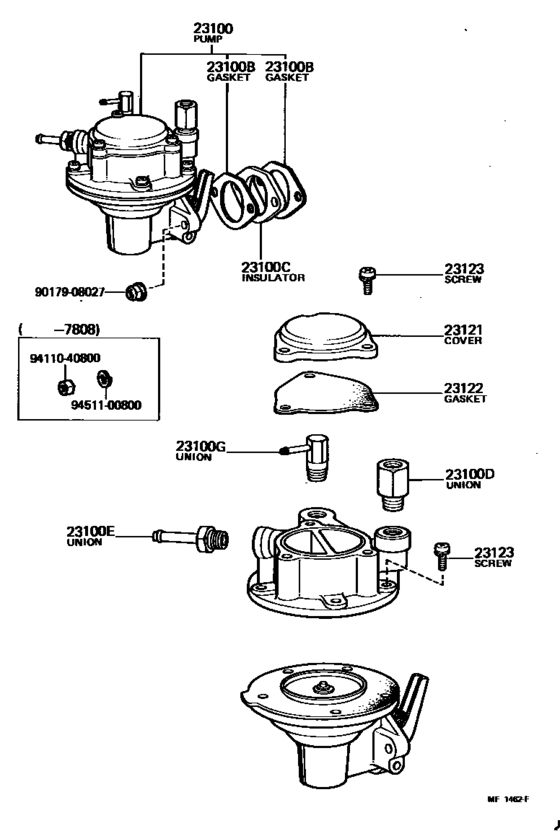

Fuel Pump & Pipe ([02.1978 - 03.1979] (7802-7903)) Diagram Toyota LITEACE
- Year
- 1978 - 1979
- Sales region
- Europe
- Frame
- KM11
- body
- V
- ENGINE
- 4KJ
- Model
- LITEACE
- From
- 02.1978
- To
- 09.1979
- Vehicle Model
- LITEACE
- Driver's Position
- HRF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-19035 Pump Assy, FuelFUEL [02.1978 - 03.1979] 4KJ..KM11 |
23100-19035 |
US $123.76 |
||
| replacement | |||||
|
23100
|
23100
23100-19036
Pump Assy, Fuel
[02.1978 - 03.1979] 4KJ..KM11 |
23100-19036 |
— | ||
|
23100
|
23100
23100-19085 Pump Assy, FuelFUEL [03.1979 - 09.1979] 4KJ..KM11 |
23100-19085 |
US $113.57 |
||
| replacement | |||||
|
23100
|
23100
23100-19088 Pump Assy, Fuel[03.1979 - 09.1979] 4KJ..KM11 |
23100-19088 |
US $115.02 |
||
|
23100B
|
23100B
90923-05006
Gasket, Cylinder Block Side Cover, No.2
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90923-05006 |
— | ||
| replacement | |||||
|
23100B
|
23100B
90923-05021 Gasket, Fuel Pump[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90923-05021 |
US $4.48 |
||
|
23100C
|
23100C
90923-06003
Insulator, Cylinder Block Side Cover
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90923-06003 |
— | ||
| replacement | |||||
|
23100C
|
23100C
90923-06015 Insulator, Cylinder Block Side Cover[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90923-06015 |
US $4.89 |
||
|
23100D
|
23100D
23116-24011 Union, Nipple(For Fuel Outlet)NIPPLE(FOR FUEL OUTLET) [02.1978 - 03.1979] 4KJ..KM11 |
23116-24011 |
US $33.20 |
||
| replacement | |||||
|
23100D
|
23100D
23116-24010
Union, Nipple(For Fuel Outlet)
[02.1978 - 03.1979] 4KJ..KM11 |
23116-24010 |
— | ||
|
23100E
|
23100E
90404-51244 Union, Nipple(For Fuel Outlet)NIPPLE(FOR FUEL INLET) [04.1974 - 03.1979] 3K#,4KJ..KM1# |
90404-51244 |
US $21.84 |
||
|
23100G
|
23100G
23116-13010
Union, Nipple(For Fuel Return Hose)
[02.1978 - 03.1979] 4KJ..KM11 |
23116-13010 |
— | ||
|
23121
|
23121
23121-24040
Cover, Fuel Pump
[02.1978 - 03.1979] 4KJ..KM11 |
23121-24040 |
— | ||
|
23122
|
23122
23122-24040
Gasket, Fuel Pump Cover
[02.1978 - 03.1979] 4KJ..KM11 |
23122-24040 |
— | ||
|
23123
|
23123
93319-15014 Screw, Cover Set, No.1[02.1978 - 03.1979] 4KJ..KM11 |
93319-15014 |
US $2.51 |
||
|
9017908027
|
9017908027
90179-08027 New Genuine Part |
90179-08027 |
US $1.75 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
