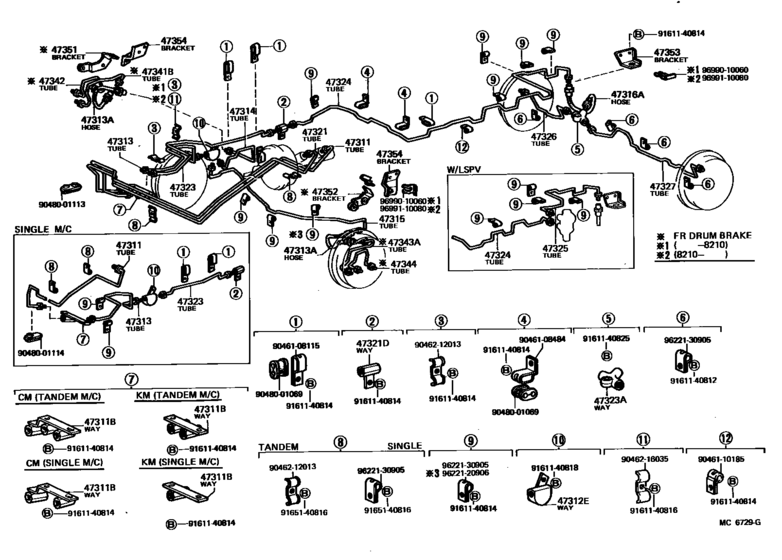

Brake Tube & Clamp ([10.1979 - ] (7910- )LHD..GEN) Diagram Toyota LITEACE
- Year
- 1979 - 1985
- Sales region
- Europe
- Frame
- KM20
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 4K
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 10.1979
- To
- 08.1985
- Gear Shift Type
- 4H
- No.of Doors
- V4D
- Seating Capacity
- 06S
- Vehicle Model
- LITEACE
- Driver's Position
- LHD
- Building Condition
- CBU
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-27090
Tube, Front Brake, No.1
[10.1979 - 08.1985] CM20,KM20..LHD..GEN SINGLE MASTER CYLINDER |
47311-27090 |
— | ||
|
47311
|
47311
47311-27100
Tube, Front Brake, No.1
[10.1979 - 10.1982] KM20..LHD..GEN TANDEM MASTER CYLINDER |
47311-27100 |
— | ||
|
47311
|
47311
47311-27101
Tube, Front Brake, No.1
[10.1982 - 08.1985] CM20,KM20..LHD..GEN TANDEM MASTER CYLINDER |
47311-27101 |
— | ||
|
47311B
|
47311B
90412-10057 Way, No.1(For Front Brake Tube)NO.1(FOR FRONT BRAKE TUBE) [10.1979 - 10.1982] KM20..(HRF,SRF)..GEN TANDEM MASTER CYLINDER |
90412-10057 |
US $12.23 |
||
| replacement | |||||
|
47311B
|
47311B
90412-10098 Way, No.1(For Front Brake Tube)NO.1(FOR FRONT BRAKE TUBE) [10.1979 - 10.1982] KM20..(HRF,SRF)..GEN TANDEM MASTER CYLINDER |
90412-10098 |
US $11.94 |
||
|
47311B
|
47311B
90412-10058 Way, No.1(For Front Brake Tube)NO.1(FOR FRONT BRAKE TUBE) [10.1979 - 10.1982] KM20..V..GEN SINGLE MASTER CYLINDER |
90412-10058 |
US $10.77 |
||
|
47311B
|
47311B
90412-10098 Way, No.1(For Front Brake Tube)NO.1(FOR FRONT BRAKE TUBE) [10.1982 - 08.1985] KM20..GEN TANDEM MASTER CYLINDER |
90412-10098 |
US $11.94 |
||
|
47312E
|
47312E
90413-10096 Way, No.2(For Front Brake Tube)NO.2(FOR FRONT BRAKE TUBE) [10.1979 - 10.1982] KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S TANDEM MASTER CYLINDER |
90413-10096 |
US $13.25 |
||
|
47312E
|
47312E
90413-10133 Way, No.2(For Front Brake Tube)NO.2(FOR FRONT BRAKE TUBE) [10.1982 - 08.1985] CM20,KM20,YM2# TANDEM MASTER CYLINDER |
90413-10133 |
US $13.10 |
||
|
47312E
|
47312E
90414-10005
Way, No.2(For Front Brake Tube)
[10.1979 - 10.1982] KM20..GEN SINGLE MASTER CYLINDER |
90414-10005 |
— | ||
|
47312E
|
47312E
90414-10013 Way, No.2(For Front Brake Tube)NO.2(FOR FRONT BRAKE TUBE) [10.1982 - 08.1985] CM20,KM20..GEN SINGLE MASTER CYLINDER |
90414-10013 |
US $13.54 |
||
|
47313
|
47313
47312-27040
Tube, Front Brake, No.3
[10.1979 - 10.1982] KM20..(HRF,SRF)..GEN |
47312-27040 |
— | ||
|
47313
|
47313
47312-27041
Tube, Front Brake, No.3
[10.1982 - 08.1985] CM20,KM20,YM20..GEN |
47312-27041 |
— | ||
|
47313A
|
47313A
96940-32805 Hose, Flexible, No.1(For Front)[10.1982 - 10.1983] CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S FR DISC BRAKE,L=280 |
96940-32805 |
US $19.99 |
||
|
47313A
|
47313A
96940-32855 Hose, Flexible, No.1[10.1983 - 08.1985] CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S FR DISC BRAKE,L=285 |
96940-32855 |
US $19.99 |
||
|
47313A
|
47313A
96950-32805 Hose, Flexible, No.1(For Front)FLEXIBLE, NO.1(FOR FRONT) [10.1979 - 10.1982] KM20..VSP..02S;KM20..03S,05S,06S,09S FR DRUM BRAKE |
96950-32805 |
US $17.33 |
||
|
47313A
|
47313A
96950-32905 Hose, Flexible, No.1(For Front)[10.1982 - 08.1985] CM20,KM20..GEN FR DRUM BRAKE |
96950-32905 |
US $10.83 |
||
|
47314
|
47314
47313-27030
Tube, Front Brake, No.4
[10.1979 - 10.1982] KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
47313-27030 |
— | ||
|
47314
|
47314
47313-27031
Tube, Front Brake, No.4
[10.1982 - 08.1985] CM20,KM20,YM2# |
47313-27031 |
— | ||
|
47315
|
47315
47314-27040
Tube, Front Brake, No.5
[10.1979 - 10.1982] KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
47314-27040 |
— | ||
|
47315
|
47315
47314-27041 Tube, Front Brake, No.5FRONT BRAKE, NO.5 [10.1982 - 08.1985] CM20,KM20,YM2# |
47314-27041 |
US $23.30 |
||
|
47316A
|
47316A
96940-33805 Hose, Clutch, No.1[10.1979 - 08.1985] CM20,KM20,YM2# |
96940-33805 |
from US $22.18 |
||
|
47321
|
47321
47321-27050 Tube, Rear Brake, No.1REAR BRAKE, NO.1 [10.1979 - 04.1980] KM20..LHD..GEN |
47321-27050 |
US $17.04 |
||
| replacement | |||||
|
47321
|
47321
47321-27051
Tube, Rear Brake, No.1
[10.1979 - 04.1980] KM20..LHD..GEN |
47321-27051 |
— | ||
|
47321
|
47321
47321-27051
Tube, Rear Brake, No.1
[04.1980 - 10.1982] KM20..LHD..GEN |
47321-27051 |
— | ||
|
47321
|
47321
47321-27052
Tube, Rear Brake, No.1
[10.1982 - 08.1985] CM20,KM20..LHD..GEN |
47321-27052 |
— | ||
|
47321D
|
47321D
90412-10063 Way, No.2(For Front Brake Tube)[10.1979 - 08.1985] CM20,KM20,YM20..GEN |
90412-10063 |
US $10.92 |
||
|
47323
|
47323
47322-27020
Tube, Rear Brake, No.3
[10.1979 - 10.1982] KM20..(HRF,SRF)..GEN |
47322-27020 |
— | ||
|
47323
|
47323
47322-27021
Tube, Rear Brake, No.3
[10.1982 - 08.1985] CM20,KM20,YM20..GEN TANDEM MASTER CYLINDER |
47322-27021 |
— | ||
|
47323
|
47323
47323-27021
Tube, Rear Brake, No.3
[10.1982 - 08.1985] CM20,KM20..GEN SINGLE MASTER CYLINDER |
47323-27021 |
— | ||
|
47323A
|
47323A
90413-10098 Way, No.2(For Rear Brake Tube)[10.1979 - 01.1981] KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
90413-10098 |
US $19.49 |
||
|
47324
|
47324
47323-27010
Tube, Rear Brake, No.4
[10.1979 - 10.1982] KM20..V..GEN W/O LSPV |
47323-27010 |
— | ||
|
47324
|
47324
47323-27030 Tube, Rear Brake, No.4REAR BRAKE, NO.4 [10.1979 - 10.1982] KM20..(HRF,SRF)..GEN W/LSPV |
47323-27030 |
US $22.71 |
||
|
47324
|
47324
47323-27140
Tube, Rear Brake, No.4
[10.1982 - 08.1985] CM20,KM20..V..GEN W/O LSPV |
47323-27140 |
— | ||
|
47325
|
47325
47324-27010
Tube, Rear Brake, No.5
[10.1979 - 10.1982] KM20..(HRF,SRF)..GEN |
47324-27010 |
— | ||
|
47325
|
47325
47324-27011
Tube, Rear Brake, No.5
[10.1982 - 08.1985] CM20,KM20,YM20..GEN |
47324-27011 |
— | ||
|
47326
|
47326
47325-27030 Tube, Rear Brake, No.6REAR BRAKE, NO.6 [10.1979 - 01.1981] KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
47325-27030 |
US $11.94 |
||
|
47327
|
47327
47326-27010 Tube, Rear Brake, No.7REAR BRAKE, NO.7 [10.1979 - 01.1981] KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
47326-27010 |
US $18.93 |
||
|
47341B
|
47341B
47341-27020 Tube, Wheel Cylinder, Front Rh No.1[10.1979 - 10.1982] KM20..VSP..02S;KM20..03S,05S,06S,09S |
47341-27020 |
US $20.24 |
||
|
47342
|
47342
47342-27020 Tube, Wheel Cylinder, Front Rh No.1[10.1979 - 10.1982] KM20..VSP..02S;KM20..03S,05S,06S,09S |
47342-27020 |
US $9.61 |
||
|
47343A
|
47343A
47343-27020 Tube, Wheel Cylinder, Front Lh No.1[10.1979 - 10.1982] KM20..VSP..02S;KM20..03S,05S,06S,09S |
47343-27020 |
US $20.24 |
||
|
47344
|
47344
47344-27020 Tube, Wheel Cylinder, Front Lh No.1[10.1979 - 10.1982] KM20..VSP..02S;KM20..03S,05S,06S,09S |
47344-27020 |
US $9.61 |
||
|
47351
|
47351
47351-27020
Bracket, Flexible Hose(For Front Rh)
[10.1979 - 10.1982] KM20..VSP..02S;KM20..03S,05S,06S,09S |
47351-27020 |
— | ||
|
47351
|
47351
47351-28030 Bracket, Flexible Hose(For Front Rh)[10.1982 - 08.1985] CM20,KM20..GEN |
47351-28030 |
US $26.21 |
||
|
47352
|
47352
47352-27030
Bracket, Flexible Hose(For Front Lh)
[10.1979 - 10.1982] KM20..VSP..02S;KM20..03S,05S,06S,09S |
47352-27030 |
— | ||
|
47352
|
47352
47352-28030 Bracket, Flexible Hose(For Front Lh)[10.1982 - 08.1985] CM20,KM20..GEN |
47352-28030 |
US $26.21 |
||
|
47353
|
47353
47355-27010
Bracket, Flexible Hose(For Rear)
[10.1979 - 08.1985] CM20,KM20,YM2#..HRF,SRF |
47355-27010 |
— | ||
|
47354
|
47354
47353-27030
Bracket, Front Flexible Hose
[10.1979 - 10.1982] KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) RH |
47353-27030 |
— | ||
|
47354
|
47354
47353-27031
Bracket, Front Flexible Hose
[10.1982 - 08.1985] CM20,KM20,YM2# RH |
47353-27031 |
— | ||
|
47354
|
47354
47354-27020
Bracket, Front Flexible Hose
[10.1979 - 10.1982] KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) LH |
47354-27020 |
— | ||
|
47354
|
47354
47354-27021
Bracket, Front Flexible Hose
[10.1982 - 08.1985] CM20,KM20,YM2# LH |
47354-27021 |
— | ||
|
9046108115
|
9046108115
90461-08115
New Genuine Part
|
90461-08115 |
— | ||
|
9046108484
|
9046108484
90461-08484 New Genuine Part |
90461-08484 |
US $3.35 |
||
|
9046110185
|
9046110185
90461-10185 Clamp, Brake Tube, No.3 |
90461-10185 |
US $5.24 |
||
|
9046212013
|
9046212013
90462-12013 New Genuine Part |
90462-12013 |
US $2.77 |
||
|
9046216035
|
9046216035
90462-16035
New Genuine Part
|
90462-16035 |
— | ||
|
9048001069
|
9048001069
90480-01069 Grommet(For Brake Tube) |
90480-01069 |
US $4.30 |
||
|
9048001113
|
9048001113
90480-01113 New Genuine Part |
90480-01113 |
US $7.86 |
||
|
9048001114
|
9048001114
90480-01114 New Genuine Part |
90480-01114 |
US $8.01 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161140818
|
9161140818
91611-40818
Bolt(for Oil Receiver Pipe)
|
91611-40818 |
— | ||
| replacement | |||||
|
9161140818
|
9161140818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.79 |
||
|
9161140825
|
9161140825
91611-40825
Bolt(For Clutch Release Cylinder Setting)
|
91611-40825 |
— | ||
| replacement | |||||
|
9161140825
|
9161140825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9622120906
|
9622120906
96221-20906
New Genuine Part
|
96221-20906 |
— | ||
|
9622130905
|
9622130905
96221-30905 CLAMP |
96221-30905 |
from US $6.63 |
||
|
9699010060
|
9699010060
96990-10060 CLIP |
96990-10060 |
from US $1.54 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.19 |
||
