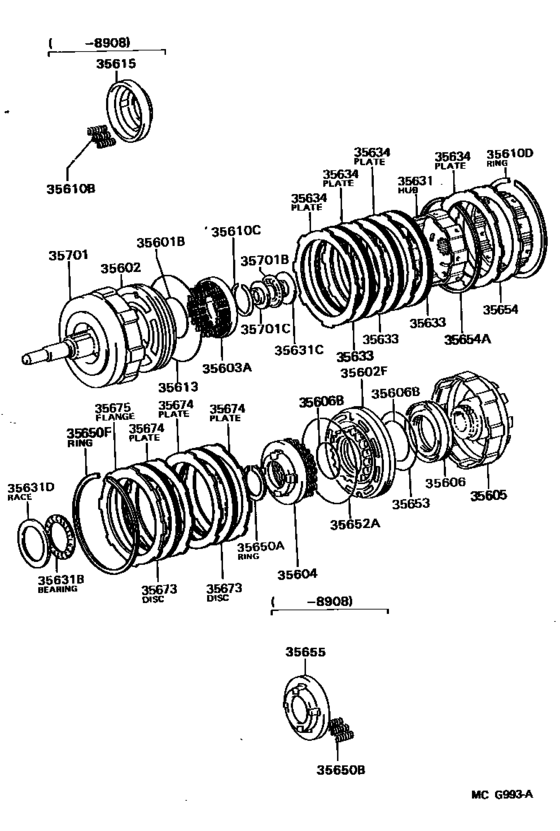

Brake Band & Multiple Disc Clutch (Atm) ([08.1988 - ] (8808- )3FC) Diagram Toyota LITEACE
- Year
- 1989 - 1992
- Sales region
- Japan
- Frame
- KM30
- grade
- SW
- body
- WG
- Roof
- HRF
- ENGINE
- 5KU
- TRANSMISSION
- ATM
- Model
- LITEACE VAN,WAGON
- From
- 10.1989
- To
- 01.1992
- Gear Shift Type
- 3FC
- No.of Doors
- W5D
- Vehicle Model
- LITEACE VAN,WAGON
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35601B
|
35601B
90301-57188 Ring, O (For Underdrive Clutch Piston)[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
90301-57188 |
US $11.29 |
||
| replacement | |||||
|
35601B
|
35601B
90301-56007 Ring, O (For Underdrive Clutch Piston)[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
90301-56007 |
US $3.05 |
||
|
35602
|
35602
35602-12031 Piston Sub-Assy, Front Clutch[08.1988 - 01.1992] CM31,36,KM30,31,36,YM3#..ATM |
35602-12031 |
US $72.80 |
||
|
35602F
|
35602F
35602-12031 Piston Sub-Assy, Front Clutch[08.1988 - 01.1992] KM30,31,36..3FC |
35602-12031 |
US $72.80 |
||
|
35603A
|
35603A
35603-22010 Spring Sub-Assy, Forward Clutch Return[08.1988 - 01.1992] CM31,36,KM30,31,36,YM3#..ATM |
35603-22010 |
US $9.61 |
||
|
35604
|
35604
35603-22010 Spring Sub-Assy, Forward Clutch Return[08.1989 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
35603-22010 |
US $9.61 |
||
|
35605
|
35605
35605-30021
Drum Sub-Assy, Rear Clutch W/2Nd Sun Gear
[08.1988 - 01.1992] CM3#,KM30,31,36..ATM |
35605-30021 |
— | ||
|
35606
|
35606
35606-22010
Piston Sub-Assy, Rear Clutch
[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
35606-22010 |
— | ||
|
35606B
|
35606B
90301-57188 Ring, O (For Underdrive Clutch Piston)[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
90301-57188 |
US $11.29 |
||
| replacement | |||||
|
35606B
|
35606B
90301-56007 Ring, O (For Underdrive Clutch Piston)[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
90301-56007 |
US $3.05 |
||
|
35610C
|
35610C
90520-39261
Ring, Shaft Snap (For Front Clutch Piston Return Spring)
[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
90520-39261 |
— | ||
|
35610D
|
35610D
90521-99139
Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
90521-99139 |
— | ||
|
35613
|
35613
90301-99016 Ring, O (For Overdrive Direct Clutch Piston)[08.1990 - 01.1992] CM3#,40,KM3#,YM3#,40..ATM |
90301-99016 |
US $14.34 |
||
|
35631
|
35631
35631-30050 Hub, Clutch(For Multiple Disc Clutch)[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
35631-30050 |
US $87.36 |
||
|
35631B
|
35631B
90374-28014 Bearing, Thrust Needle Roller(For Overdrive)[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
90374-28014 |
US $4.89 |
||
|
35631C
|
35631C
35789-22050 Race, Thrust Bearing (For Rear Planetary Ring Gear Front)[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
35789-22050 |
US $8.91 |
||
|
35631D
|
35631D
35789-22020 Race, Thrust Bearing (For Rear Planetary Ring Gear Rear)[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
35789-22020 |
US $8.91 |
||
|
35633
|
35633
35677-30030
Disc, Clutch (For Overdrive)
[08.1988 - 01.1992] CM31,36,KM30,31,36,YM3#..ATM |
35677-30030 |
— | ||
| replacement | |||||
|
35633
|
35633
35677-30160 Disc, Clutch (For Overdrive)[08.1988 - 01.1992] CM31,36,KM30,31,36,YM3#..ATM |
35677-30160 |
from US $39.14 |
||
|
35634
|
35634
35634-22040 Plate, Clutch (For Overdrive)[08.1988 - 01.1992] CM31,36,KM30,31,36,YM3#..ATM 厚さ＝１．８ |
35634-22040 |
US $18.93 |
||
|
35650A
|
35650A
90520-39261
Ring, Shaft Snap (For Front Clutch Piston Return Spring)
[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
90520-39261 |
— | ||
|
35650F
|
35650F
90521-99139
Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
90521-99139 |
— | ||
|
35653
|
35653
90301-84184
Ring, O (For Transfer Low Speed Brake Piston)
[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
90301-84184 |
— | ||
| replacement | |||||
|
35653
|
35653
90301-83001 Ring, O (For Rear Clutch Piston)[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
90301-83001 |
US $5.68 |
||
|
35654
|
35654
35654-22010 Hub, Rear Clutch[08.1988 - 01.1992] CM31,36,KM30,31,36,YM3#..ATM |
35654-22010 |
US $117.94 |
||
|
35654A
|
35654A
90521-99146
Ring, Hole Snap, No.1 (For Overdrive)
[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
90521-99146 |
— | ||
|
35673
|
35673
35677-30030
Disc, Clutch (For Overdrive)
[08.1988 - 01.1992] KM30,31,36..3FC |
35677-30030 |
— | ||
| replacement | |||||
|
35673
|
35673
35677-30160 Disc, Clutch (For Overdrive)[08.1988 - 01.1992] KM30,31,36..3FC |
35677-30160 |
from US $39.14 |
||
|
35674
|
35674
35634-22040 Plate, Clutch (For Overdrive)[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
35634-22040 |
US $18.93 |
||
|
35675
|
35675
35675-22010
Flange, Overdrive Clutch
[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM 厚さ＝４．０ |
35675-22010 |
— | ||
| replacement | |||||
|
35675
|
35675
35675-22140
Flange, Overdrive Clutch
[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM 厚さ＝４．０ |
35675-22140 |
— | ||
|
35701
|
35701
35701-12011 Shaft Sub-Assy, Input[08.1988 - 08.1990] KM30,31,36..3FC |
35701-12011 |
US $390.21 |
||
| replacements | |||||
|
35701
|
35701
35701-12012 Shaft Sub-assy, Input[08.1988 - 08.1990] KM30,31,36..3FC |
35701-12012 |
US $422.24 |
||
|
35701
|
35701
90520-99012
Ring, Hole Snap (For Front Multiple Disc Clutch)
[08.1988 - 08.1990] KM30,31,36..3FC |
90520-99012 |
— | ||
|
35701
|
35701
35701-27010 Shaft Sub-Assy, Input[08.1990 - 01.1992] KM3#..3FC |
35701-27010 |
US $422.24 |
||
| replacements | |||||
|
35701
|
35701
35701-27012 Shaft Sub-Assy, Input[08.1990 - 01.1992] KM3#..3FC |
35701-27012 |
US $422.24 |
||
|
35701
|
35701
90520-99012
Ring, Hole Snap (For Front Multiple Disc Clutch)
[08.1990 - 01.1992] KM3#..3FC |
90520-99012 |
— | ||
|
35701B
|
35701B
90374-23012 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
90374-23012 |
from US $5.42 |
||
|
35701C
|
35701C
35789-22010 Race, Thrust Bearing(For Overdrive Planetary Gear)[08.1988 - 01.1992] CM3#,40,KM30,31,36,YM3#,40..ATM |
35789-22010 |
US $6.99 |
||
