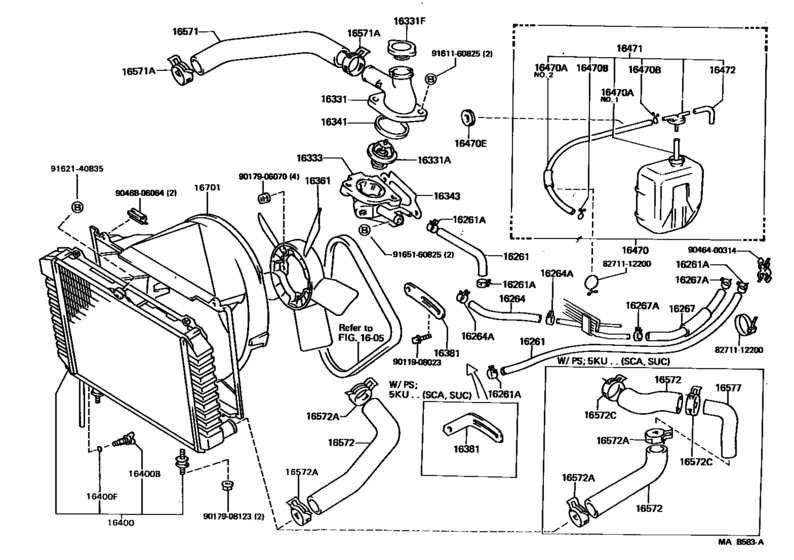

Radiator & Water Outlet ([08.1988 - ] (8808- )4KJ,5K#) Diagram Toyota LITEACE
- Year
- 1990 - 1992
- Sales region
- Japan
- Frame
- KM30
- grade
- SW
- body
- WG
- Roof
- SRF
- ENGINE
- 5KU
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 08.1990
- To
- 01.1992
- Gear Shift Type
- 5H
- No.of Doors
- W4D
- Vehicle Model
- LITEACE VAN,WAGON
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
99555-00450 Hose, Water By-Pass[08.1990 - 01.1992] 5K#..KM3# ＊Ｈ，Ｌ＝４５０ |
99555-00450 |
US $12.23 |
||
| replacement | |||||
|
16261
|
16261
99555-00500 Hose, Water By-Pass, No.3[08.1990 - 01.1992] 5K#..KM3# ＊Ｈ，Ｌ＝４５０ |
99555-00500 |
US $13.10 |
||
|
16261A
|
16261A
90467-11009
Clamp Or Clip, Hose(For Water By-Pass Hose)
[01.1989 - 01.1992] 5K#..KM30,31,36 |
90467-11009 |
— | ||
| replacement | |||||
|
16261A
|
16261A
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[01.1989 - 01.1992] 5K#..KM30,31,36 |
96135-51100 |
from US $1.83 |
||
|
16264
|
16264
99555-00200 Hose, Water By-Pass[08.1990 - 01.1992] 5KU..KM30 ＊Ｈ，Ｌ＝２００; 5KJ..KM36 ＊Ｈ，Ｌ＝２００; 5KJ..KM31 ＊Ｈ，Ｌ＝２００ |
99555-00200 |
US $7.88 |
||
|
16264A
|
16264A
90467-11009
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1990 - 01.1992] 5KU..KM30; 5KJ..KM36; 5KJ..KM31 |
90467-11009 |
— | ||
| replacement | |||||
|
16264A
|
16264A
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[08.1990 - 01.1992] 5KU..KM30; 5KJ..KM36; 5KJ..KM31 |
96135-51100 |
from US $1.83 |
||
|
16267
|
16267
90447-12070 Hose, Water By-Pass, No.3[08.1990 - 01.1992] 5KU..KM30 長さ＝１７０; 5KJ..KM36 長さ＝１７０; 5KJ..KM31 長さ＝１７０ |
90447-12070 |
US $10.05 |
||
|
16267A
|
16267A
90467-11009
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1990 - 01.1992] 5KU..KM30; 5KJ..KM36; 5KJ..KM31 |
90467-11009 |
— | ||
| replacement | |||||
|
16267A
|
16267A
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[08.1990 - 01.1992] 5KU..KM30; 5KJ..KM36; 5KJ..KM31 |
96135-51100 |
from US $1.83 |
||
|
16331
|
16331
16304-13020
Outlet, Water
[04.1989 - 01.1992] 4KJ,5K#..KM3# |
16304-13020 |
— | ||
| replacement | |||||
|
16331
|
16331
16304-13050
Outlet, Water
[04.1989 - 01.1992] 4KJ,5K#..KM3# |
16304-13050 |
— | ||
|
16331A
|
16331A
90916-03078 Thermostat[08.1988 - 01.1992] 4KJ,5K#..KM3# ＊ＷＡＸ ８８−１００ |
90916-03078 |
from US $17.14 |
||
|
16331F
|
16331F
16401-71010
Cap Sub-Assy(For Water Outlet)
[08.1988 - 01.1992] 4KJ,5K#..KM3# |
16401-71010 |
— | ||
| replacement | |||||
|
16331F
|
16331F
16401-54750 Radiator Cap[08.1988 - 01.1992] 4KJ,5K#..KM3# |
16401-54750 |
from US $16.13 |
||
|
16333
|
16333
16333-13130 Housing, Water Outlet[08.1990 - 01.1992] 5KU..KM30; 5KJ..KM36; 5KJ..KM31; 5KJ..KM36..SUP ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
16333-13130 |
US $78.62 |
||
|
16341
|
16341
16341-13040 Gasket, Water Outlet[12.1989 - 01.1992] 4KJ,5K#..KM3# |
16341-13040 |
US $5.73 |
||
|
16343
|
16343
16343-13020 Gasket, Water Outlet Housing[12.1989 - 01.1992] 4KJ,5K#..KM3# |
16343-13020 |
US $8.96 |
||
|
16361
|
16361
16361-38010 Fan[08.1988 - 01.1992] 2C..CM3#,41; 5K#..KM30,31,36 |
16361-38010 |
from US $79.42 |
||
|
16381
|
16381
16381-13020 Bar, Fan Belt Adjusting[08.1988 - 01.1992] 5KU..KM30..SCA,SUC; 5K#..KM30,31,36..DLX,LD,SUP,SW ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
16381-13020 |
US $6.12 |
||
|
16381
|
16381
16381-24011
Bar, Fan Belt Adjusting
[08.1988 - 01.1992] 4KJ,5K#..KM3#..DLX,LD,SUP,SW |
16381-24011 |
— | ||
|
16400
|
16400
16400-13380 Radiator Assy[10.1989 - 01.1992] 4KJ,5KU..KM30,35..MTM |
16400-13380 |
US $449.90 |
||
| replacement | |||||
|
16400
|
16400
16400-13400 Radiator Assy[10.1989 - 01.1992] 4KJ,5KU..KM30,35..MTM |
16400-13400 |
US $351.19 |
||
|
16400B
|
16400B
16417-24200 Plug, Radiator Drain Cock[08.1988 - 01.1992] 2C#..CM3#,4#; 4KJ,5K#..KM3#; 2Y#,3YU..YM3#,40 |
16417-24200 |
from US $3.59 |
||
|
16400F
|
16400F
16418-24200 Packing(For Radiator Drain Cock)[08.1988 - 01.1992] 2C#..CM3#,4#; 4KJ,5K#..KM3#; 2Y#,3YU..YM3#,40 |
16418-24200 |
from US $1.27 |
||
|
16470
|
16470
16470-13060
Tank Assy, Radiator Reserve
[08.1988 - 01.1992] 4KJ,5K#..KM3# |
16470-13060 |
— | ||
| replacement | |||||
|
16470
|
16470
16470-13070
Tank Assy, Radiator Reserve
[08.1988 - 01.1992] 4KJ,5K#..KM3# |
16470-13070 |
— | ||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[08.1988 - 01.1992] 4KJ,5K#..KM3# ＊Ｈ，Ｌ＝７００; 2Y#,3YU..YM3#,40 長さ＝６００,ＮＯ．３ |
90445-12078 |
from US $6.75 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[08.1988 - 01.1992] 2C#..CM3#,4#; 4KJ,5K#..KM3#; 2Y#,3YU..YM3#,40 |
90467-11085 |
from US $0.72 |
||
|
16470E
|
16470E
90480-24173
Grommet, Radiator Reserve Tank Hose
[08.1988 - 01.1992] 4KJ,5K#..KM3# |
90480-24173 |
— | ||
|
16471
|
16471
16405-13060
Cap Sub-Assy, Reserve Tank
[08.1988 - 01.1992] 4KJ,5K#..KM3# |
16405-13060 |
— | ||
|
16472
|
16472
85338-30010
Hose(For Radiator Drain Cock)
[08.1988 - 01.1992] 4KJ,5K#..KM3#; 2Y#,3YU..YM3#,40 |
85338-30010 |
— | ||
|
16571
|
16571
16571-13170 Hose, Radiator, Inlet[08.1988 - 01.1992] 4KJ,5K#..KM3# |
16571-13170 |
US $29.12 |
||
|
16571A
|
16571A
90467-31001
Clamp Or Clip, Hose(For Radiator Inlet)
[04.1989 - 01.1992] 4KJ,5K#..KM3# ラジエータ側 |
90467-31001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90466-30001 Clip Or Clamp(For Ventilation Hose)[04.1989 - 01.1992] 4KJ,5K#..KM3# ラジエータ側 |
90466-30001 |
from US $3.37 |
||
|
16571A
|
16571A
90467-31003 Clip(For Ventilation Hose)[04.1989 - 01.1992] 4KJ,5K#..KM3# エンジン側 |
90467-31003 |
US $4.30 |
||
|
16572
|
16572
16572-13140
Hose, Radiator, Outlet
[08.1988 - 01.1992] 4KJ,5K#..KM3#..DLX,LD,SUP,SW |
16572-13140 |
— | ||
|
16572
|
16572
16572-13150 Hose, Radiator, Outlet[08.1988 - 01.1992] 5K#..KM30,31,36 エンジン側 |
16572-13150 |
US $16.85 |
||
|
16572
|
16572
16573-13020 Hose, Radiator, Outlet[10.1989 - 01.1992] 5K#..KM30,31,36 ラジエータ側 |
16573-13020 |
US $23.33 |
||
|
16572A
|
16572A
90467-37001
Clip(For Water Inlet Hose)
[08.1988 - 01.1992] 4KJ,5K#..KM3# ラジエータ側 |
90467-37001 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)[08.1988 - 01.1992] 4KJ,5K#..KM3# ラジエータ側 |
90467-37003 |
from US $4.56 |
||
|
16572A
|
16572A
90467-37002
Clip(For Water Inlet Hose)
[08.1988 - 01.1992] 4KJ,5K#..KM3# エンジン側 |
90467-37002 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-37005 Clip(For Water Inlet Hose)[08.1988 - 01.1992] 4KJ,5K#..KM3# エンジン側 |
90467-37005 |
from US $3.98 |
||
|
16572C
|
16572C
90467-37002
Clip(For Water Inlet Hose)
[08.1988 - 01.1992] 5K#..KM30,31,36 |
90467-37002 |
— | ||
| replacement | |||||
|
16572C
|
16572C
90467-37005 Clip(For Water Inlet Hose)[08.1988 - 01.1992] 5K#..KM30,31,36 |
90467-37005 |
from US $3.98 |
||
|
16577
|
16577
16577-13020
Pipe, Radiator, No.7
[08.1988 - 01.1992] 5K#..KM30,31,36 |
16577-13020 |
— | ||
|
16701
|
16701
16711-13240
Shroud Sub-Assy, Fan
[08.1988 - 01.1992] 5K#..KM30,31,36 |
16711-13240 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
9011908023
|
9011908023
90119-08023 BOLT |
90119-08023 |
US $2.48 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9046400314
|
9046400314
90464-00314 Clip(For Water By-Pass Hose) |
90464-00314 |
US $2.89 |
||
|
9046806064
|
9046806064
90468-06064
Clip(For Fan Shroud)
|
90468-06064 |
— | ||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9162140835
|
9162140835
91621-40835 New Genuine Part |
91621-40835 |
US $2.48 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
