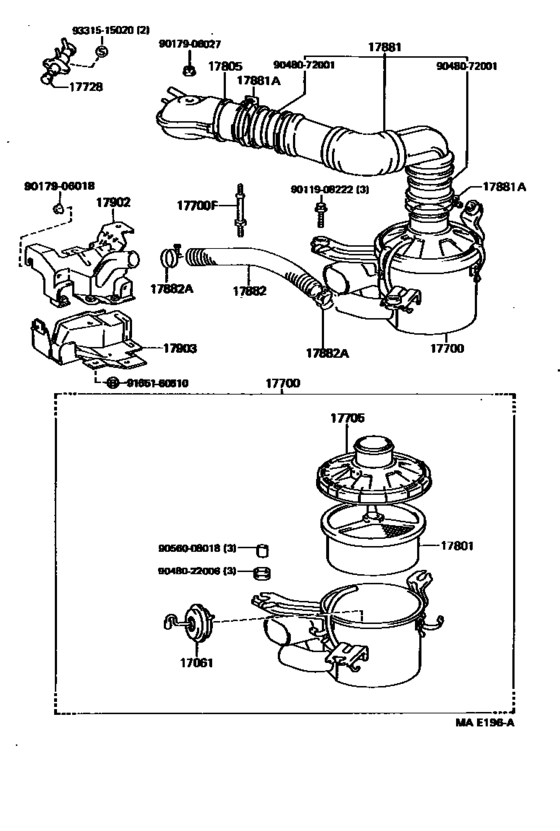

Air Cleaner ([08.1990 - ] (9008- )5K#) Diagram Toyota LITEACE
- Year
- 1990 - 1992
- Sales region
- Japan
- Frame
- KM30
- grade
- SW
- body
- WG
- Roof
- HRF
- ENGINE
- 5KU
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 08.1990
- To
- 01.1992
- Gear Shift Type
- 5H
- No.of Doors
- W4D
- Vehicle Model
- LITEACE VAN,WAGON
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-13040 Diaphragm Sub-Assy[08.1988 - 01.1992] 4KJ,5K#..KM3#; 2Y#,3YU..YM3#,40 |
17061-13040 |
US $50.67 |
||
|
17700
|
17700
17700-13560 Cleaner Assy, Air[08.1990 - 01.1992] 5K#..KM3# |
17700-13560 |
US $474.66 |
||
|
17700F
|
17700F
90116-06060 Bolt, Stud(For Air Cleaner Setting)[08.1988 - 01.1992] 4KJ,5K#..KM3# |
90116-06060 |
US $3.32 |
||
|
17705
|
17705
17705-13130 Cap Sub-Assy, Air Cleaner[08.1990 - 01.1992] 5K#..KM3# |
17705-13130 |
US $40.91 |
||
|
17728
|
17728
17728-13050 Valve, Thermostatic[08.1988 - 01.1992] 5K#..KM30,31,36 |
17728-13050 |
US $84.45 |
||
|
17801
|
17801
17801-13050 Element Sub-Assy, Air Cleaner Filter[08.1988 - 01.1992] 4KJ,5K#..KM3#; 2Y#,3YU..YM3#,40 |
17801-13050 |
US $40.66 |
||
|
17805
|
17805
17805-13050 Connector Sub-Assy, Intake Air[08.1988 - 01.1992] 5K#..KM30,31,36 |
17805-13050 |
US $71.78 |
||
|
17881
|
17881
17881-13140 Hose, Air Cleaner, No.1[08.1988 - 01.1992] 4KJ,5K#..KM3# |
17881-13140 |
US $65.67 |
||
|
17881A
|
17881A
90460-80001
Clamp, Hose
[08.1988 - 01.1992] 4KJ,5K#..KM3#; 2Y#,3YU..YM3#,40 |
90460-80001 |
— | ||
| replacement | |||||
|
17881A
|
17881A
90460-80006 Clamp, Hose[08.1988 - 01.1992] 4KJ,5K#..KM3#; 2Y#,3YU..YM3#,40 |
90460-80006 |
from US $8.33 |
||
|
17882
|
17882
17882-72040 Hose, Air Cleaner, No.2[08.1988 - 01.1992] 4KJ,5K#..KM3# |
17882-72040 |
US $43.83 |
||
|
17882A
|
17882A
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[08.1988 - 01.1992] 4KJ,5K#..KM3#; 2Y#,3YU..YM3#,40 |
96111-10460 |
from US $2.83 |
||
|
17902
|
17902
17167-13080 Inlet Sub-Assy, Hot Air Intake, No.1[08.1990 - 01.1992] 5KU..KM30 |
17167-13080 |
US $72.07 |
||
|
17903
|
17903
17168-13030 Inlet Sub-Assy, Hot Air Intake, No.2[08.1990 - 01.1992] 5KU..KM30 |
17168-13030 |
US $54.02 |
||
|
9011908222
|
9011908222
90119-08222
New Genuine Part
|
90119-08222 |
— | ||
|
9017906018
|
9017906018
90179-06018 New Genuine Part |
90179-06018 |
US $0.83 |
||
|
9017906027
|
9017906027
90179-06027
Nut, Wing(For Air Connector)
|
90179-06027 |
— | ||
|
9048022006
|
9048022006
90480-22006 New Genuine Part |
90480-22006 |
US $3.14 |
||
|
9048072001
|
9048072001
90480-72001 New Genuine Part |
90480-72001 |
US $6.84 |
||
|
9056008018
|
9056008018
90560-08018 Spacer, Air Cleaner Inlet |
90560-08018 |
US $2.91 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
US $2.15 |
||
|
9331515020
|
9331515020
93315-15020
New Genuine Part
|
93315-15020 |
— | ||
