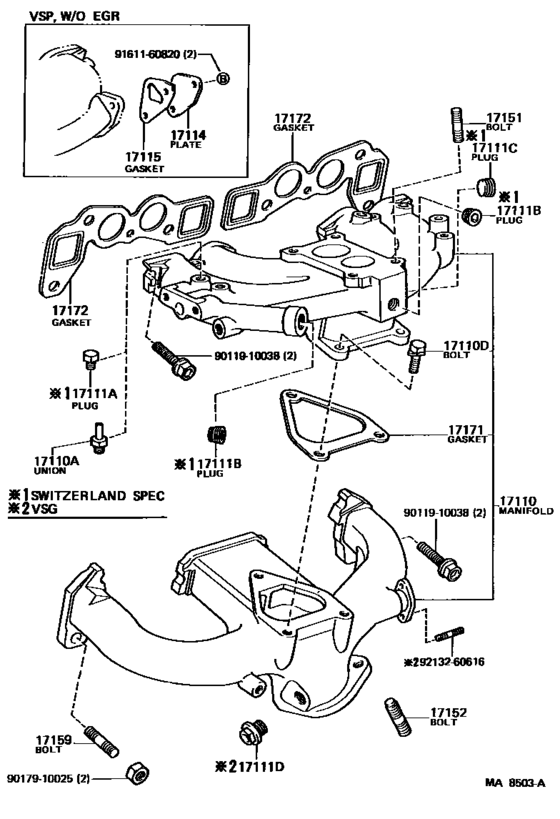

Manifold ([10.1985 - ] (8510- )5K) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- Europe
- Frame
- KM30
- grade
- STD
- body
- WG
- Roof
- MRF
- ENGINE
- 5K
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 10.1985
- To
- 08.1988
- Gear Shift Type
- 5F
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17110
|
17110
17110-13160 Manifold Assy[10.1985 - 08.1988] 5K..KM30,36..02S,08S; 5K..KM36..4F..05S W/O EGR |
17110-13160 |
US $588.22 |
||
| replacements | |||||
|
17110
|
17110
17110-13280 Manifold Assy[10.1985 - 08.1988] 5K..KM30,36..02S,08S; 5K..KM36..4F..05S W/O EGR |
17110-13280 |
US $591.14 |
||
|
17110
|
17110
17172-13050 Gasket, Manifold To Cylinder Head[10.1985 - 08.1988] 5K..KM30,36..02S,08S; 5K..KM36..4F..05S W/O EGR |
17172-13050 |
US $49.80 |
||
|
17110
|
17110
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[10.1985 - 08.1988] 5K..KM30,36..02S,08S; 5K..KM36..4F..05S W/O EGR |
90116-10063 |
from US $0.98 |
||
|
17110
|
17110
90179-10051 NUT[10.1985 - 08.1988] 5K..KM30,36..02S,08S; 5K..KM36..4F..05S W/O EGR |
90179-10051 |
US $4.66 |
||
|
17110
|
17110
90179-10175 NUT[10.1985 - 08.1988] 5K..KM30,36..02S,08S; 5K..KM36..4F..05S W/O EGR |
90179-10175 |
from US $0.98 |
||
|
17110A
|
17110A
90404-51010 Union, Vacuum Hose[10.1985 - 08.1988] 5K..KM3# |
90404-51010 |
US $3.32 |
||
|
17110D
|
17110D
91611-60822 Bolt[10.1985 - 08.1988] 5K..KM3# |
91611-60822 |
from US $1.19 |
||
|
17114
|
17114
11495-13020 Plate, Intake Manifold Hole CoverINTAKE MANIFOLD HOLE COVER [10.1985 - 08.1988] 5K..KM30,36..02S,08S; 5K..KM36..4F..05S W/O EGR |
11495-13020 |
US $6.12 |
||
|
17115
|
17115
25627-13020 Gasket, Egr Valve[10.1985 - 08.1988] 5K..KM30,36..02S,08S; 5K..KM36..4F..05S W/O EGR |
25627-13020 |
US $4.08 |
||
| replacement | |||||
|
17115
|
17115
25627-13021 Gasket, Egr Valve[10.1985 - 08.1988] 5K..KM30,36..02S,08S; 5K..KM36..4F..05S W/O EGR |
25627-13021 |
US $3.93 |
||
|
17151
|
17151
90116-08010 Bolt, Stud(For Manifold To Carburetor)[10.1985 - 08.1988] 5K..KM3# |
90116-08010 |
US $2.75 |
||
|
17152
|
17152
90116-10056
Bolt, Stud(For Turbocharger)
[10.1985 - 05.1987] 5K..KM3# |
90116-10056 |
— | ||
| replacement | |||||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[10.1985 - 05.1987] 5K..KM3# |
90116-10087 |
from US $2.30 |
||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[05.1987 - 08.1988] 5K..KM3# |
90116-10087 |
from US $2.30 |
||
|
17159
|
17159
92122-41028
Bolt, Stud(For Manifold To Cylinder Head)
[10.1985 - 08.1988] 5K..KM3# L=43,S=15&15 |
92122-41028 |
— | ||
|
17171
|
17171
17171-13040
Gasket, Intake To Exhaust Manifold
[10.1985 - 08.1988] 5K..KM3# |
17171-13040 |
— | ||
| replacement | |||||
|
17171
|
17171
17171-13050 Gasket, Intake To Exhaust Manifold[10.1985 - 08.1988] 5K..KM3# |
17171-13050 |
from US $4.99 |
||
|
17172
|
17172
17172-13021
Gasket, Manifold To Cylinder Head
[10.1985 - 08.1988] 5K..KM3# |
17172-13021 |
— | ||
| replacement | |||||
|
17172
|
17172
17172-13030 Gasket, Manifold To Cylinder Head[10.1985 - 08.1988] 5K..KM3# |
17172-13030 |
US $16.84 |
||
|
9011910038
|
9011910038
90119-10038 New Genuine Part |
90119-10038 |
US $6.45 |
||
|
9017910025
|
9017910025
90179-10025 NUT |
90179-10025 |
US $2.51 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9213260616
|
9213260616
92132-60616 New Genuine Part |
92132-60616 |
US $2.62 |
||
