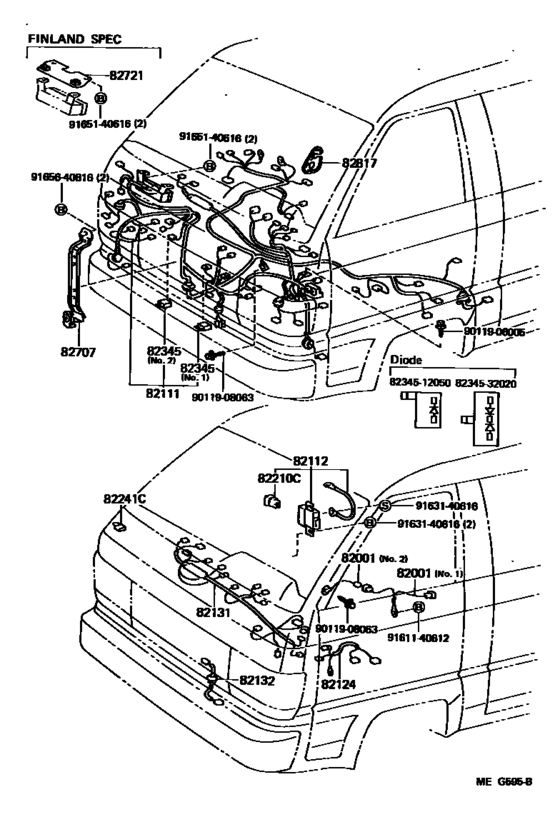

Wiring & Clamp ([10.1985 - ] (8510- )KM3#..LHD) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- Europe
- Frame
- KM30
- grade
- STD
- body
- WG
- Roof
- MRF
- ENGINE
- 5K
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 10.1985
- To
- 08.1988
- Gear Shift Type
- 5F
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07260 Cable, Bond, No.1BOND, NO.1 [10.1985 - 08.1988] KM3#..LHD NO.2 |
90980-07260 |
US $5.39 |
||
|
82001
|
82001
90980-07261 Cable, Bond, No.1[10.1985 - 08.1988] KM3# NO.1 |
90980-07261 |
US $5.39 |
||
|
82111
|
82111
82111-95G02 Wire, Engine Room MainENGINE ROOM MAIN [10.1985 - 08.1986] KM30; KM31,36..LHD W/*RWD,*RFL,*RW,*REH;W/LIGHTING WARNING |
82111-95G02 |
US $1,499.68 |
||
| replacement | |||||
|
82111
|
82111
82111-95G75 Wire, Engine Room MainENGINE ROOM MAIN [10.1985 - 08.1986] KM30; KM31,36..LHD W/*RWD,*RFL,*RW,*REH;W/LIGHTING WARNING |
82111-95G75 |
US $1,499.68 |
||
|
82111
|
82111
82111-95G75 Wire, Engine Room MainENGINE ROOM MAIN [08.1986 - 08.1987] KM30; KM36..LHD W/*RWD,*RW,*REH;W/LIGHTING WARNING |
82111-95G75 |
US $1,499.68 |
||
|
82111
|
82111
82115-95746 Wire, Engine Room MainENGINE ROOM MAIN [08.1987 - 08.1988] KM30; KM36..LHD W/*RWD,*RW,*REH;W/LIGHTING WARNING |
82115-95746 |
US $1,688.96 |
||
|
82112
|
82112
82112-95705 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [10.1985 - 08.1988] KM3#..LHD |
82112-95705 |
US $471.74 |
||
|
82124
|
82124
82124-95701 Wire, Engine, No.4[10.1985 - 06.1986] KM3# |
82124-95701 |
US $36.84 |
||
|
82131
|
82131
82131-95742
Wire, Cowl
[10.1985 - 08.1986] KM30,31; CM35,KM36..05S; KM31;KM36..LHD..MRF..02S *FRG; CM35,KM36..LHD..02S W/*RWD,CLOCK,*REH; CM35,KM3#..LHD W/LIGHTING WARNING |
82131-95742 |
— | ||
|
82131
|
82131
82131-95G11
Wire, Cowl
[08.1986 - 10.1986] KM30; CM35,KM36..05S; KM36..LHD..MRF..02S *FRG; CM35,KM36..LHD..02S W/*RWD,CLOCK,*REH; CM35,KM3#..LHD W/LIGHTING WARNING |
82131-95G11 |
— | ||
|
82131
|
82131
82131-95G23 Wire, CowlCOWL [10.1986 - 08.1988] KM30; CM35,KM36..05S; KM36..LHD..MRF..02S *FRG; CM35,KM36..LHD..02S W/*RWD,CLOCK,*REH; CM35,KM3#..LHD W/LIGHTING WARNING |
82131-95G23 |
US $247.52 |
||
|
82132
|
82132
82132-95701 Wire, Cowl, No.2COWL, NO.2 [10.1985 - 08.1988] CM35,KM3#..LHD |
82132-95701 |
US $61.30 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[10.1985 - 08.1988] CM35,KM3# 40A,TERMINAL:FEMALE,40A |
90982-08189 |
US $7.88 |
||
|
82210C
|
82210C
90982-08228 Fusible Link[10.1985 - 08.1988] KM3#..LHD 50A,TERMINAL:MALE,50A |
90982-08228 |
US $10.39 |
||
|
82241C
|
82241C
82241-95701 Wire, RelayRELAY [10.1985 - 08.1988] CM35,KM3#..LHD W/*RFL |
82241-95701 |
US $3.93 |
||
|
82241C
|
82241C
82241-95702 Wire, RelayRELAY [10.1985 - 08.1988] KM36..LHD..4F..02S;CM35,KM30..LHD..5F..STD..(02S,08S) W/*RFL,*SWZ OR FRANCE SPEC |
82241-95702 |
US $3.93 |
||
|
82345
|
82345
82345-12050 Diode[08.1987 - 08.1988] CM35,KM3# NO.2 |
82345-12050 |
US $14.16 |
||
|
82345
|
82345
82345-32020 Diode[08.1986 - 08.1988] CM35,KM3#..LHD NO.1 |
82345-32020 |
US $13.45 |
||
|
82707
|
82707
82701-95701 Support Sub-Assy, Wiring HarnessWIRING HARNESS [10.1985 - 08.1988] CM35,KM3#..LHD |
82701-95701 |
US $31.89 |
||
|
82817
|
82817
82817-95703 Protector, Wiring Harness, No.1[10.1985 - 08.1988] CM35,KM3# |
82817-95703 |
US $9.90 |
||
|
8234512050
|
8234512050
82345-12050 Diode |
82345-12050 |
US $14.16 |
||
|
8234532020
|
8234532020
82345-32020 Diode |
82345-32020 |
US $13.45 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.51 |
||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9163140616
|
9163140616
91631-40616 Bolt(For Head To Camshaft Bearing Cap) |
91631-40616 |
US $3.05 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165640816
|
9165640816
91656-40816
New Genuine Part
|
91656-40816 |
— | ||
| replacements | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9165640816
|
9165640816
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
