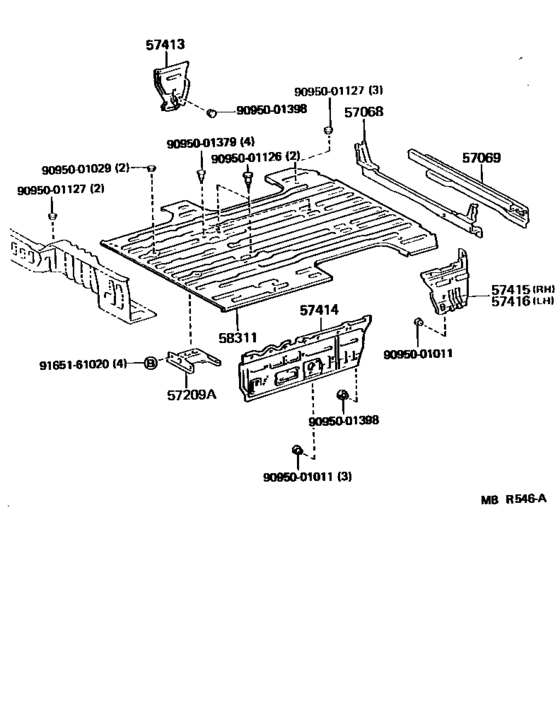

Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )LHD..V4D) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- General
- Frame
- KM37
- grade
- STD
- body
- BUS
- Roof
- SRF
- ENGINE
- 5K
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 4H
- No.of Doors
- V4D
- Seating Capacity
- 09S
- Vehicle Model
- LITEACE
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57068
|
57068
57068-95700 Member Sub-Assy, Rear Floor Rear Cross, Inner[08.1988 - 04.1998] CM36,KM3#,YM31,35 |
57068-95700 |
US $145.60 |
||
| replacement | |||||
|
57068
|
57068
57068-95704 Member Sub-Assy, Rear Floor Rear Cross, Inner[08.1988 - 04.1998] CM36,KM3#,YM31,35 |
57068-95704 |
US $164.53 |
||
|
57069
|
57069
57069-95701 Member Sub-Assy, Rear Floor Rear Cross, Outer[08.1988 - 01.1992] CM36..5H;CM36..SRF;CM36,KM36,37,YM30,35..(4FC,4H,5F)..(02S,03S,06S,08S,09S) |
57069-95701 |
US $158.70 |
||
| replacements | |||||
|
57069
|
57069
57069-95702 Member Sub-Assy, Rear Floor Rear Cross, OuterREAR FLOOR REAR CROSS, OUTER [08.1988 - 01.1992] CM36..5H;CM36..SRF;CM36,KM36,37,YM30,35..(4FC,4H,5F)..(02S,03S,06S,08S,09S) |
57069-95702 |
US $164.53 |
||
|
57069
|
57069
90333-20001 PLUG[08.1988 - 01.1992] CM36..5H;CM36..SRF;CM36,KM36,37,YM30,35..(4FC,4H,5F)..(02S,03S,06S,08S,09S) |
90333-20001 |
from US $1.21 |
||
|
57069
|
57069
57069-95702 Member Sub-Assy, Rear Floor Rear Cross, OuterREAR FLOOR REAR CROSS, OUTER [08.1988 - 11.1988] KM36..4H..GEN;CM36,KM37..4F,4H,5H ROUGH ROAD PACKAGE |
57069-95702 |
US $164.53 |
||
|
57209A
|
57209A
57209-95710 Member Sub-Assy, Engine Rear Mounting[08.1988 - 04.1998] KM3#..LHD |
57209-95710 |
US $100.46 |
||
|
57413
|
57413
57413-95735 Rail, Floor Side, Center Rh[08.1988 - 04.1996] KM36..V5D;CM36,KM3#..LHD..V4D |
57413-95735 |
US $65.67 |
||
| replacements | |||||
|
57413
|
57413
57405-95719 Rail, Floor Side, Center Rh[08.1988 - 04.1996] KM36..V5D;CM36,KM3#..LHD..V4D |
57405-95719 |
US $63.04 |
||
|
57413
|
57413
90333-15002 PLUG[08.1988 - 04.1996] KM36..V5D;CM36,KM3#..LHD..V4D |
90333-15002 |
US $1.61 |
||
|
57413
|
57413
90333-25001 Plug, Hole(For Hood)[08.1988 - 04.1996] KM36..V5D;CM36,KM3#..LHD..V4D |
90333-25001 |
from US $1.29 |
||
|
57414
|
57414
57406-95708 Rail, Floor Side, Center LhFLOOR SIDE, CENTER LH [08.1988 - 01.1992] KM37 W(RR HEATER-PUT FLOOR TYPE) |
57406-95708 |
US $211.12 |
||
|
57414
|
57414
57406-95711 Rail, Floor Side, Center LhFLOOR SIDE, CENTER LH [08.1988 - 01.1992] CM36,KM36,37..LHD..V4D |
57406-95711 |
US $211.12 |
||
|
57415
|
57415
57047-95705 Rail, Floor Side, Rear Rh[08.1988 - 01.1992] CM36,KM36,37,YM31,35 |
57047-95705 |
US $90.27 |
||
|
57416
|
57416
57048-95705 Rail, Floor Side, Rear Lh[08.1988 - 01.1992] CM36,KM36,37,YM31,35 |
57048-95705 |
US $90.27 |
||
|
58311
|
58311
58311-95780 Pan, Rear FloorREAR FLOOR [08.1988 - 01.1992] KM37 W(RR HEATER-PUT FLOOR TYPE) |
58311-95780 |
US $618.80 |
||
|
58311
|
58311
58311-95781 Pan, Rear FloorREAR FLOOR [08.1988 - 01.1992] KM37 |
58311-95781 |
US $618.80 |
||
|
9095001011
|
9095001011
90950-01011 Grommet(For Upper Back Panel) |
90950-01011 |
US $3.05 |
||
|
9095001029
|
9095001029
90950-01029
Plug, Hole, No.1(For Dash Panel)
|
90950-01029 |
— | ||
| replacement | |||||
|
9095001029
|
9095001029
90950-01882 Cover, Hole |
90950-01882 |
from US $2.01 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $6.45 |
||
|
9095001127
|
9095001127
90950-01127
Grommet (For Cooler Unit)
|
90950-01127 |
— | ||
|
9095001379
|
9095001379
90950-01379 New Genuine Part |
90950-01379 |
US $4.48 |
||
|
9095001398
|
9095001398
90950-01398 CUSHION |
90950-01398 |
from US $0.92 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.33 |
||
