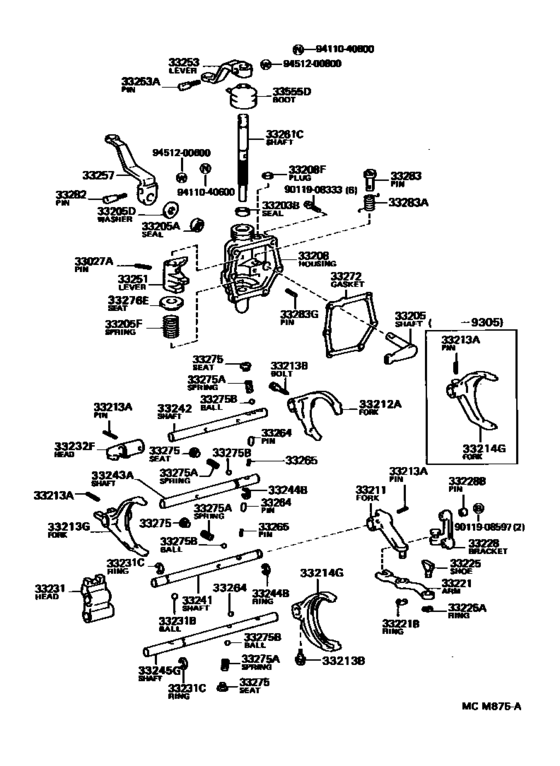

Gear Shift Fork & Lever Shaft (Mtm) ([01.1992 - ] G53,G57 (9201- )) Diagram Toyota LITEACE
- Year
- 1992 - 1994
- Sales region
- Europe
- Frame
- KR21
- grade
- DX
- Roof
- MRF
- ENGINE
- 5K
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 05.1994
- No.of Doors
- 4D
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33027A
|
33027A
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90254-05001 |
from US $0.98 |
||
|
33203B
|
33203B
90311-18002 Seal, Oil(For Extension Housing Rear)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90311-18002 |
from US $2.87 |
||
|
33205
|
33205
33262-28020 Shaft Sub-Assy, Select Lever[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33262-28020 |
US $26.21 |
||
|
33205A
|
33205A
90313-13001 Seal, Oil(For Shift Lever Shaft)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90313-13001 |
from US $2.87 |
||
|
33205D
|
33205D
94612-11300 Washer(For Outer Lever Oil Setting)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
94612-11300 |
from US $0.70 |
||
|
33205F
|
33205F
90501-18044 Spring, Compression(For Select Return)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90501-18044 |
US $7.51 |
||
|
33208
|
33208
33271-28010 Housing Sub-Assy, Shift Lever Shaft[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33271-28010 |
US $61.30 |
||
|
33208F
|
33208F
96411-41200 Plug, Tight, No.1[01.1992 - 01.1995] CR2#,KR2#,YR2# |
96411-41200 |
US $3.58 |
||
|
33211
|
33211
33211-28010 Fork, Reverse Shift[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33211-28010 |
US $29.12 |
||
|
33212A
|
33212A
33212-26030 Fork, Gear Shift, No.1[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33212-26030 |
US $26.38 |
||
|
33213A
|
33213A
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[05.1993 - 01.1995] CR2#,KR2#,YR2# |
90254-05001 |
from US $0.98 |
||
|
33213B
|
33213B
90105-06143 Bolt(For Shift Fork Set)[01.1992 - 05.1993] CR2#,KR2#,YR2# |
90105-06143 |
US $1.10 |
||
|
33213G
|
33213G
33213-28011 Fork, Gear Shift, No.2[01.1992 - 09.1992] CR2#,KR2#,YR2# |
33213-28011 |
US $88.82 |
||
| replacements | |||||
|
33213G
|
33213G
33220-26010 Fork, Gear Shift, No.2[01.1992 - 09.1992] CR2#,KR2#,YR2# |
33220-26010 |
US $53.64 |
||
|
33213G
|
33213G
33364-26020 Sleeve, Transmission Hub, No.2[01.1992 - 09.1992] CR2#,KR2#,YR2# |
33364-26020 |
from US $59.23 |
||
|
33213G
|
33213G
33220-26010 Fork, Gear Shift, No.2[09.1992 - 01.1995] CR2#,KR2#,YR2# |
33220-26010 |
US $53.64 |
||
|
33214G
|
33214G
33214-26020 Fork, 5Th Shift[05.1993 - 01.1995] CR2#,KR2#,YR2# |
33214-26020 |
US $42.52 |
||
|
33214G
|
33214G
33214-28010 Fork, 5Th Shift[01.1992 - 05.1993] CR2#,KR2#,YR2# |
33214-28010 |
US $88.82 |
||
| replacements | |||||
|
33214G
|
33214G
33395-35020 Sleeve, Transmission Hub, No.3[01.1992 - 05.1993] CR2#,KR2#,YR2# |
33395-35020 |
US $111.52 |
||
|
33214G
|
33214G
33214-26020 Fork, 5Th Shift[01.1992 - 05.1993] CR2#,KR2#,YR2# |
33214-26020 |
US $42.52 |
||
|
33214G
|
33214G
33245-26010 Shaft, 5Th Shift Fork[01.1992 - 05.1993] CR2#,KR2#,YR2# |
33245-26010 |
US $35.82 |
||
|
33214G
|
33214G
90105-06143 Bolt(For Shift Fork Set)[01.1992 - 05.1993] CR2#,KR2#,YR2# |
90105-06143 |
US $1.10 |
||
|
33221
|
33221
33221-28010 Arm, Reverse Shift[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33221-28010 |
US $28.39 |
||
|
33221B
|
33221B
96160-01000 Ring, E(For Clutch Booster Air Valve)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
96160-01000 |
US $0.42 |
||
|
33225
|
33225
33225-35030 Shoe, Shift Arm[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33225-35030 |
US $10.63 |
||
|
33225A
|
33225A
96160-00800 Ring, E(For Counter Weight)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
96160-00800 |
from US $0.88 |
||
|
33228
|
33228
33228-28010 Bracket, Reverse Shift Arm[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33228-28010 |
US $22.28 |
||
|
33228B
|
33228B
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90253-11001 |
US $2.15 |
||
|
33231
|
33231
33231-28010 Head, Reverse Shift[01.1992 - 10.1992] CR2#,KR2#,YR2# |
33231-28010 |
US $46.88 |
||
| replacements | |||||
|
33231
|
33231
33220-26010 Fork, Gear Shift, No.2[01.1992 - 10.1992] CR2#,KR2#,YR2# |
33220-26010 |
US $53.64 |
||
|
33231
|
33231
33231-28020 Head, Reverse Shift[01.1992 - 10.1992] CR2#,KR2#,YR2# |
33231-28020 |
US $29.56 |
||
|
33231
|
33231
33232-28020 Head, 1St & 2Nd Shift[01.1992 - 10.1992] CR2#,KR2#,YR2# |
33232-28020 |
US $29.56 |
||
|
33231
|
33231
33364-26020 Sleeve, Transmission Hub, No.2[01.1992 - 10.1992] CR2#,KR2#,YR2# |
33364-26020 |
from US $59.23 |
||
|
33231
|
33231
33231-28020 Head, Reverse Shift[10.1992 - 01.1995] CR2#,KR2#,YR2# |
33231-28020 |
US $29.56 |
||
|
33231B
|
33231B
90360-10003 Ball(For Transmission Oil Pump Cover)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90360-10003 |
from US $1.19 |
||
|
33231C
|
33231C
90520-12006 Ring(For Reverse Shift Head)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90520-12006 |
US $1.43 |
||
|
33232F
|
33232F
33232-28010 Head, 1St & 2Nd Shift[01.1992 - 10.1992] CR2#,KR2#,YR2# |
33232-28010 |
US $46.88 |
||
| replacements | |||||
|
33232F
|
33232F
33220-26010 Fork, Gear Shift, No.2[01.1992 - 10.1992] CR2#,KR2#,YR2# |
33220-26010 |
US $53.64 |
||
|
33232F
|
33232F
33231-28020 Head, Reverse Shift[01.1992 - 10.1992] CR2#,KR2#,YR2# |
33231-28020 |
US $29.56 |
||
|
33232F
|
33232F
33232-28020 Head, 1St & 2Nd Shift[01.1992 - 10.1992] CR2#,KR2#,YR2# |
33232-28020 |
US $29.56 |
||
|
33232F
|
33232F
33364-26020 Sleeve, Transmission Hub, No.2[01.1992 - 10.1992] CR2#,KR2#,YR2# |
33364-26020 |
from US $59.23 |
||
|
33232F
|
33232F
33232-28020 Head, 1St & 2Nd Shift[10.1992 - 01.1995] CR2#,KR2#,YR2# |
33232-28020 |
US $29.56 |
||
|
33241
|
33241
33244-28011 Shaft, Reverse Shift Fork[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33244-28011 |
US $30.58 |
||
|
33242
|
33242
33242-26020 Shaft, Gear Shift Fork, No.1[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33242-26020 |
US $32.85 |
||
|
33243A
|
33243A
33243-35051 Shaft, Gear Shift Fork, No.2[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33243-35051 |
US $30.58 |
||
|
33244B
|
33244B
90520-12006 Ring(For Reverse Shift Head)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90520-12006 |
US $1.43 |
||
|
33245G
|
33245G
33245-26010 Shaft, 5Th Shift Fork[05.1993 - 01.1995] CR2#,KR2#,YR2# |
33245-26010 |
US $35.82 |
||
|
33245G
|
33245G
33245-28011 Shaft, 5Th Shift Fork[01.1992 - 05.1993] CR2#,KR2#,YR2# |
33245-28011 |
US $56.78 |
||
| replacements | |||||
|
33245G
|
33245G
33395-35020 Sleeve, Transmission Hub, No.3[01.1992 - 05.1993] CR2#,KR2#,YR2# |
33395-35020 |
US $111.52 |
||
|
33245G
|
33245G
33214-26020 Fork, 5Th Shift[01.1992 - 05.1993] CR2#,KR2#,YR2# |
33214-26020 |
US $42.52 |
||
|
33245G
|
33245G
33245-26010 Shaft, 5Th Shift Fork[01.1992 - 05.1993] CR2#,KR2#,YR2# |
33245-26010 |
US $35.82 |
||
|
33245G
|
33245G
90105-06143 Bolt(For Shift Fork Set)[01.1992 - 05.1993] CR2#,KR2#,YR2# |
90105-06143 |
US $1.10 |
||
|
33251
|
33251
33251-28012 Lever, Shift & Select[01.1992 - 10.1992] CR2#,KR2#,YR2# |
33251-28012 |
US $43.83 |
||
| replacements | |||||
|
33251
|
33251
33251-28030 Lever, Shift & Select[01.1992 - 10.1992] CR2#,KR2#,YR2# |
33251-28030 |
US $26.91 |
||
|
33251
|
33251
33261-28030 Shaft, Shift & Select Lever[01.1992 - 10.1992] CR2#,KR2#,YR2# |
33261-28030 |
US $16.45 |
||
|
33251
|
33251
33251-28030 Lever, Shift & Select[10.1992 - 01.1995] CR2#,KR2#,YR2# |
33251-28030 |
US $26.91 |
||
|
33253
|
33253
33253-28050 Lever, Shift Outer, No.1[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33253-28050 |
US $62.61 |
||
|
33253A
|
33253A
33281-16020 Pin, Lever Lock (For Shift Outer Lever)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33281-16020 |
from US $1.35 |
||
|
33257
|
33257
33257-28041 Lever, Select Outer[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33257-28041 |
US $59.40 |
||
|
33261C
|
33261C
33261-28011 Shaft, Shift & Select Lever[01.1992 - 10.1992] CR2#,KR2#,YR2# |
33261-28011 |
US $58.39 |
||
| replacements | |||||
|
33261C
|
33261C
33251-28030 Lever, Shift & Select[01.1992 - 10.1992] CR2#,KR2#,YR2# |
33251-28030 |
US $26.91 |
||
|
33261C
|
33261C
33261-28030 Shaft, Shift & Select Lever[01.1992 - 10.1992] CR2#,KR2#,YR2# |
33261-28030 |
US $16.45 |
||
|
33261C
|
33261C
33261-28030 Shaft, Shift & Select Lever[10.1992 - 01.1995] CR2#,KR2#,YR2# |
33261-28030 |
US $16.45 |
||
|
33264
|
33264
90360-10003 Ball(For Transmission Oil Pump Cover)[01.1992 - 01.1995] CR2#,KR2#,YR2# OD=9.52,STEEL,BALL |
90360-10003 |
from US $1.19 |
||
|
33264
|
33264
90361-10002 Pin, Or Ball, Shift Inter Lock, No.1[01.1992 - 01.1995] CR2#,KR2#,YR2# L=21.6,PIN,PIN |
90361-10002 |
US $4.08 |
||
|
33264
|
33264
90361-10003 Pin, Or Ball, Shift Inter Lock, No.1[01.1992 - 01.1995] CR2#,KR2#,YR2# L=13.6,PIN,PIN |
90361-10003 |
from US $1.65 |
||
|
33265
|
33265
90250-05020 Pin, Straight (For Shift & Select Lever Shaft)[01.1992 - 01.1995] CR2#,KR2#,YR2# L=11.1,OD=4.8 |
90250-05020 |
US $1.49 |
||
|
33272
|
33272
33272-28010 Gasket, Shift Lever Shaft Housing[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33272-28010 |
from US $2.91 |
||
|
33275
|
33275
90341-12014 Plug, W/head Straight Screw, No.1(For Cylinder Block)[01.1992 - 01.1995] CR2# OD=17,OD=17; KR2#,YR2# OD=17,OD=17 |
90341-12014 |
from US $1.97 |
||
|
33275A
|
33275A
90501-14123 Spring, Compression (For Shift Detent Ball Low Side)[01.1992 - 01.1995] CR2#,KR2#,YR2# L=20.2,L=20.2 |
90501-14123 |
US $0.73 |
||
|
33275A
|
33275A
90501-14132 Spring, Compression (For Shift Detent Ball Low Side)[01.1992 - 01.1995] CR2#,KR2#,YR2# L=31,L=31.0 |
90501-14132 |
US $0.70 |
||
|
33275B
|
33275B
90360-10003 Ball(For Transmission Oil Pump Cover)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90360-10003 |
from US $1.19 |
||
|
33276E
|
33276E
33276-28011 Seat(For Select Return Spring)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33276-28011 |
US $6.12 |
||
|
33282
|
33282
33282-35010 Pin, Lever Lock (For Shift Outer Lever)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33282-35010 |
from US $1.74 |
||
|
33283
|
33283
33283-27010 Pin, Reverse Restrict, No.1[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33283-27010 |
US $10.77 |
||
|
33283A
|
33283A
90504-10008 Spring, Compression (For Reverse Restrict Pin)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90504-10008 |
US $1.31 |
||
|
33283G
|
33283G
90254-04015 Pin, Slotted Spring (For Reverse Restrict Pin)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90254-04015 |
US $1.14 |
||
|
33555D
|
33555D
33555-28010 Boot, Shift Lever[01.1992 - 01.1995] CR2#,KR2#,YR2# |
33555-28010 |
from US $5.01 |
||
|
9011908333
|
9011908333
90119-08333 BOLT |
90119-08333 |
US $2.15 |
||
|
9011908597
|
9011908597
90119-08597 Bolt(For Rocker Support Set) |
90119-08597 |
US $2.48 |
||
| replacement | |||||
|
9011908597
|
9011908597
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
US $2.15 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.33 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
