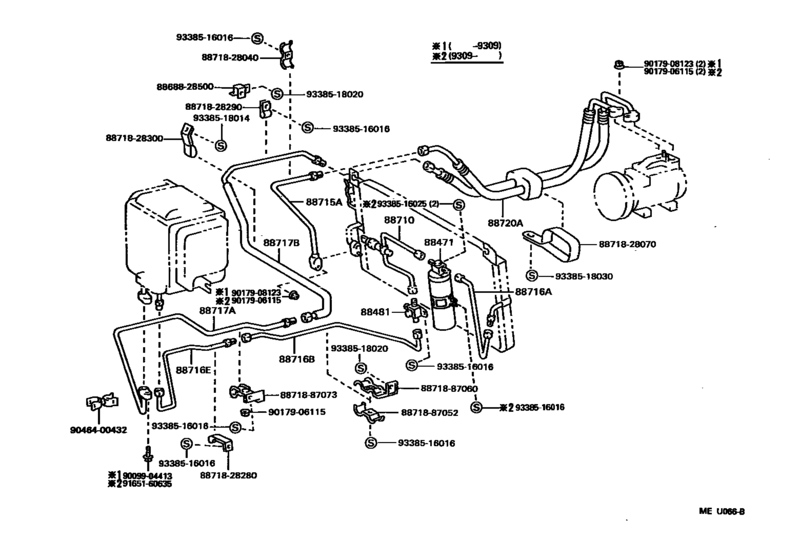

Heating & Air Conditioning - Cooler Piping ([01.1992 - ] PIPING---SINGLE(DEALER OPTION) (9201- )YR22,39..02S,08S) Diagram Toyota LITEACE
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- YR39
- grade
- STD
- Roof
- SRF
- ENGINE
- 3YC
- TRANSMISSION
- ATM
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 10.1996
- No.of Doors
- 4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88471
|
88471
88470-14010
Receiver & Dryer Assy, Cooler
[01.1992 - 09.1993] CR27,KR2#,YR2#,39 |
88470-14010 |
— | ||
| replacement | |||||
|
88471
|
88471
04884-33110 New Genuine Part[01.1992 - 09.1993] CR27,KR2#,YR2#,39 |
04884-33110 |
US $85.28 |
||
|
88471
|
88471
88471-28100 Tank, Receiver Air Conditioner[09.1993 - 07.2000] CR27,KR2#,YR2#,39 |
88471-28100 |
US $95.12 |
||
|
88481
|
88481
88481-87004
Glass Sub-Assy, Sight
[01.1992 - 09.1993] CR27,KR27,YR22,39..RHD |
88481-87004 |
— | ||
|
88710
|
88710
88710-28640 Tube Assy, Air Conditioner[01.1992 - 09.1993] CR27,KR27,YR39..RHD; YR22 DEALER OPTION SINGLE AIR CONDITIONER |
88710-28640 |
US $256.26 |
||
|
88710
|
88710
88710-2J420 Tube Assy, Air Conditioner[09.1993 - 10.1996] CR27,KR27,YR39..RHD; YR22 DEALER OPTION SINGLE AIR CONDITIONER |
88710-2J420 |
US $187.82 |
||
|
88715A
|
88715A
88715-28130 Pipe, Cooler Refrigerant Discharge, A[01.1992 - 09.1993] CR27..RHD..05S;KR27,YR39..4D..(02S,06S); YR22 DEALER OPTION SINGLE AIR CONDITIONER |
88715-28130 |
US $66.98 |
||
|
88715A
|
88715A
88715-28310 Pipe, Cooler Refrigerant Discharge, A[09.1993 - 10.1996] CR27,KR27,YR39..RHD; YR22 DEALER OPTION SINGLE AIR CONDITIONER |
88715-28310 |
US $59.26 |
||
|
88716A
|
88716A
88716-2J860 Pipe, Cooler Refrigerant Liquid, A[09.1993 - 10.1996] CR27,KR27,YR22,39..RHD |
88716-2J860 |
US $33.63 |
||
|
88716A
|
88716A
88716-87055 Pipe, Cooler Refrigerant Liquid, A[01.1992 - 09.1993] CR27,KR27,YR22,39..RHD |
88716-87055 |
US $33.63 |
||
|
88716B
|
88716B
88716-28550 Pipe, Cooler Refrigerant Liquid, B[01.1992 - 09.1993] CR27,KR27,YR22,39..RHD |
88716-28550 |
US $66.54 |
||
|
88716B
|
88716B
88716-2J570 Pipe, Cooler Refrigerant Liquid, B[09.1993 - 10.1996] CR27,KR27,YR22,39..RHD |
88716-2J570 |
US $68 |
||
|
88716E
|
88716E
88716-28540 Pipe, Cooler Refrigerant Liquid, E[01.1992 - 09.1993] CR27..RHD..05S;KR27,YR39..4D..(02S,06S); YR22 DEALER OPTION |
88716-28540 |
US $50.67 |
||
|
88716E
|
88716E
88716-2J590 Pipe, Cooler Refrigerant Liquid, E[09.1993 - 10.1996] CR27..RHD..05S;KR27,YR39..4D..(02S,06S); YR22 DEALER OPTION |
88716-2J590 |
US $51.11 |
||
|
88717A
|
88717A
88717-28360 Pipe, Cooler Refrigerant Suction, A[01.1992 - 09.1993] CR27..RHD..05S;KR27,YR39..4D..(02S,06S); YR22 DEALER OPTION SINGLE AIR CONDITIONER |
88717-28360 |
US $179.09 |
||
|
88717A
|
88717A
88717-2J180 Pipe, Cooler Refrigerant Suction, A[09.1993 - 10.1996] CR27..RHD..05S;KR27,YR39..4D..(02S,06S); YR22 DEALER OPTION SINGLE AIR CONDITIONER |
88717-2J180 |
US $171.81 |
||
|
88717B
|
88717B
88717-28370 Pipe, Cooler Refrigerant Suction, B[01.1992 - 09.1993] YR39; YR22 DEALER OPTION SINGLE AIR CONDITIONER |
88717-28370 |
US $160.16 |
||
|
88717B
|
88717B
88717-2J260 Pipe, Cooler Refrigerant Suction, B[09.1993 - 10.1996] YR39; YR22 DEALER OPTION SINGLE AIR CONDITIONER |
88717-2J260 |
US $163.07 |
||
|
88720A
|
88720A
88720-28020 Hose & Accessory, Air Conditioner[01.1992 - 09.1993] YR2#,39 |
88720-28020 |
US $435.34 |
||
|
88720A
|
88720A
88720-28060 Hose & Accessory, Air Conditioner[09.1993 - 08.1994] YR2#,39 |
88720-28060 |
US $444.08 |
||
| replacement | |||||
|
88720A
|
88720A
88720-28080 Hose & Accessory, Air Conditioner[09.1993 - 08.1994] YR2#,39 |
88720-28080 |
US $412.05 |
||
|
8868828500
|
8868828500
88688-28500
Bracket, Cooler Diaphragm
|
88688-28500 |
— | ||
|
8871828040
|
8871828040
88718-28040
Pipe, Cooler Refrigerant Suction, No.2
|
88718-28040 |
— | ||
|
8871828070
|
8871828070
88718-28070
Pipe, Cooler Refrigerant Suction, No.2
|
88718-28070 |
— | ||
|
8871828280
|
8871828280
88718-28280
Pipe, Cooler Refrigerant Suction, No.2
|
88718-28280 |
— | ||
|
8871828290
|
8871828290
88718-28290
Pipe, Cooler Refrigerant Suction, No.2
|
88718-28290 |
— | ||
|
8871828300
|
8871828300
88718-28300
Pipe, Cooler Refrigerant Suction, No.2
|
88718-28300 |
— | ||
|
8871887052
|
8871887052
88718-87052
Pipe, Cooler Refrigerant Suction, No.2
|
88718-87052 |
— | ||
|
8871887060
|
8871887060
88718-87060
Pipe, Cooler Refrigerant Suction, No.2
|
88718-87060 |
— | ||
|
8871887073
|
8871887073
88718-87073
Pipe, Cooler Refrigerant Suction, No.2
|
88718-87073 |
— | ||
|
9009904413
|
9009904413
90099-04413
New Genuine Part
|
90099-04413 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9046400432
|
9046400432
90464-00432 New Genuine Part |
90464-00432 |
US $2.77 |
||
|
9165160635
|
9165160635
91651-60635 BOLT |
91651-60635 |
US $2.87 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
|
9338518014
|
9338518014
93385-18014
New Genuine Part
|
93385-18014 |
— | ||
|
9338518020
|
9338518020
93385-18020
New Genuine Part
|
93385-18020 |
— | ||
|
9338518030
|
9338518030
93385-18030
New Genuine Part
|
93385-18030 |
— | ||
