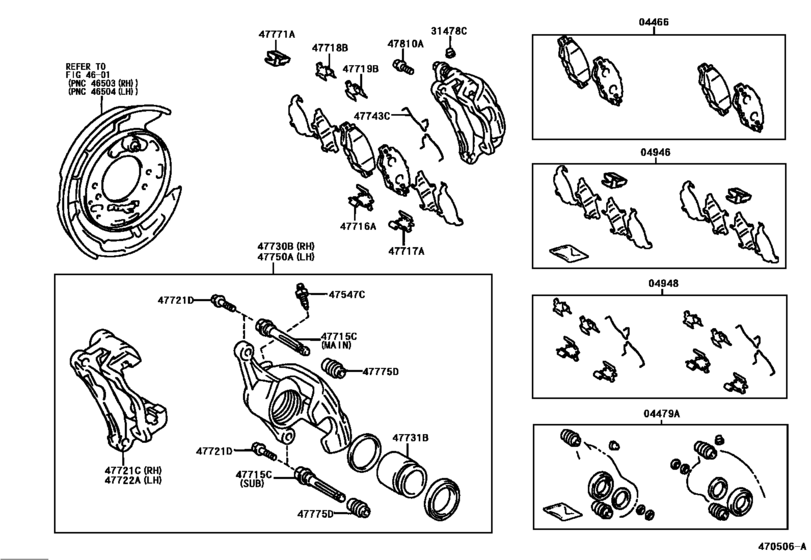

Rear Disc Brake Caliper & Dust Cover ([09.1996 - ] (9609- )TOUV ; (9609- )GX100,LX100) Diagram Toyota MARK 2
- Year
- 1996 - 2000
- Sales region
- Japan
- Frame
- GX100
- grade
- TOU
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 09.1996
- To
- 10.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04466
|
04466
04466-22150
Pad Kit, Disc Brake, Rear
[09.1996 - 05.1998] GX100,LX100;JZX100..TOUV |
04466-22150 |
— | ||
|
04466
|
04466
04466-22170
Pad Kit, Disc Brake, Rear
[05.1998 -] GX100,LX100 |
04466-22170 |
— | ||
|
04479A
|
04479A
04479-22130 Cylinder Kit, Disc Brake, Rear[09.1996 -] GX100,LX100 |
04479-22130 |
US $25.16 |
||
|
04946
|
04946
04946-22071 Shim Kit, Anti Squeal(For Rear Disc Brake)[09.1996 -] GX100,LX100;JZX100..TOUV |
04946-22071 |
US $34.36 |
||
| replacement | |||||
|
04946
|
04946
04946-22072 Shim Kit, Anti Squeal(For Rear Disc Brake)[09.1996 -] GX100,LX100;JZX100..TOUV |
04946-22072 |
US $42.84 |
||
|
04948
|
04948
04948-22070 Fitting Kit, Disc Brake, Rear[09.1996 -] GX100,LX100 |
04948-22070 |
US $27.26 |
||
|
31478C
|
31478C
31478-30010 Bleeder Plug Cap[09.1996 -] GX10#,JZX10#,LX100 |
31478-30010 |
from US $1.52 |
||
|
47547C
|
47547C
47547-35020 Plug, Bleeder(For Front Disc Brake)[09.1996 -] GX100,LX100;JZX100..TOUV |
47547-35020 |
from US $3.94 |
||
|
47715C
|
47715C
47715-22110 Pin, Cylinder Slide(For Rear Disc Brake)[09.1996 -] GX100,LX100;JZX100..TOUV サブ |
47715-22110 |
US $9.14 |
||
|
47715C
|
47715C
47715-22120 Pin, Cylinder Slide(For Rear Disc Brake)[09.1996 -] GX100,LX100;JZX100..TOUV メイン |
47715-22120 |
from US $5.95 |
||
|
47716A
|
47716A
47716-22060 Plate, Pad Support, No.1(For Rear Disc Brake)[09.1996 -] GX100,LX100;JZX100..TOUV |
47716-22060 |
from US $2.89 |
||
|
47717A
|
47717A
47717-22050 Plate, Pad Support, No.1(For Rear Disc Brake)[09.1996 -] GX100,LX100;JZX100..TOUV |
47717-22050 |
from US $3.26 |
||
|
47718B
|
47718B
47718-22040 Plate, Pad Support, No.3(For Rear Disk Brake)[09.1996 -] GX100,LX100;JZX100..TOUV |
47718-22040 |
from US $3.26 |
||
|
47719B
|
47719B
47719-22040 Plate, Pad Support, No.4(For Rear Disk Brake)[09.1996 -] GX100,LX100;JZX100..TOUV |
47719-22040 |
from US $3.26 |
||
|
47721C
|
47721C
47721-22230 Mounting, Rear Disc Brake Cylinder, Rh[09.1996 -] GX100,LX100 |
47721-22230 |
US $51.83 |
||
|
47721D
|
47721D
90105-08304 Bolt(For Front Disc Brake Cylinder Slide)[09.1996 -] GX100,LX100;JZX100..TOUV ＊８−１．００ＰＸ２０−９ |
90105-08304 |
from US $0.82 |
||
|
47722A
|
47722A
47721-22230 Mounting, Rear Disc Brake Cylinder, Rh[09.1996 -] GX100,LX100 |
47721-22230 |
US $51.83 |
||
|
47730B
|
47730B
47730-22350 Cylinder Assy, Rear Disc Brake, Rh[09.1996 -] GX100,LX100 |
47730-22350 |
US $560.56 |
||
|
47731B
|
47731B
47731-22080 Piston, Rear Disc Brake[09.1996 -] GX100,LX100 |
47731-22080 |
US $23.30 |
||
|
47743C
|
47743C
47743-22070 Spring, Anti-Squeal(For Rear Disc Brake)[09.1996 -] GX100,LX100 |
47743-22070 |
US $5.38 |
||
|
47750A
|
47750A
47750-22350 Cylinder Assy, Disc Brake, Rear Lh[09.1996 -] GX100,LX100 |
47750-22350 |
US $560.56 |
||
|
47771A
|
47771A
47771-22070 Plate, Pad Wear Indicator, No.1[09.1996 -] GX100,LX100;JZX100..TOUV |
47771-22070 |
from US $3.12 |
||
|
47775D
|
47775D
47775-22070 Boot, Bush Dust(For Rear Disc Brake)[09.1996 -] GX100,LX100;JZX100..TOUV |
47775-22070 |
from US $4.82 |
||
|
47810A
|
47810A
90119-10206 Bolt, Hexagon(For Rear Caliper)[09.1996 -] GX10#,JZX10#,LX100 |
90119-10206 |
US $3.58 |
||
