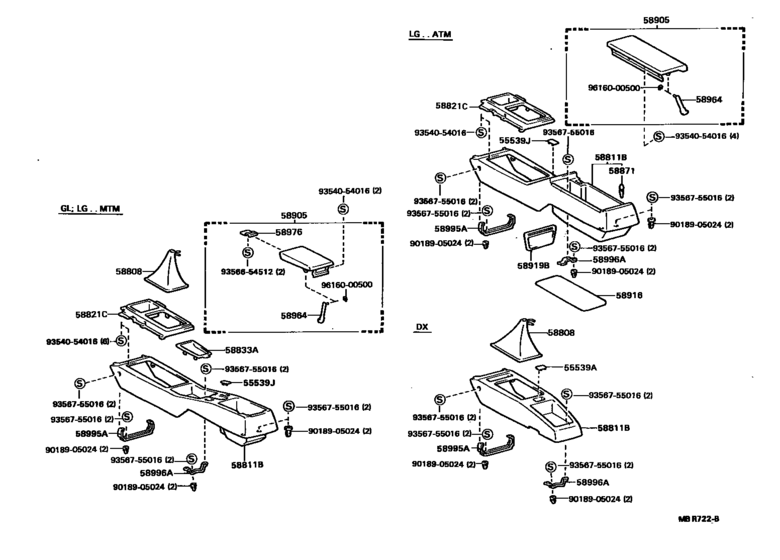

Console Box & Bracket ([10.1988 - ] (8810- )) Diagram Toyota MARK 2
- Year
- 1988 - 1997
- Sales region
- Japan
- Frame
- GX70
- grade
- LG
- body
- WG
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- MARK 2 V,WG
- From
- 10.1988
- To
- 04.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55539J
|
55539J
55539-24010-10 Cover, Spare Switch Hole[10.1988 - 02.1993] GX70 NEW MAROON,TRIM3# |
55539-24010-10 |
US $8.01 |
||
| replacement | |||||
|
55539J
|
55539J
55539-32010-C0 Cover, Cooler Switch Hole[10.1988 - 02.1993] GX70 NEW MAROON,TRIM3# |
55539-32010-C0 |
from US $3.04 |
||
|
55539J
|
55539J
55539-24010-20 Cover, Spare Switch Hole[10.1988 - 08.1990] GX70,YX76..GL,LG BLUE,TRIM8# |
55539-24010-20 |
US $8.01 |
||
| replacement | |||||
|
55539J
|
55539J
55539-32010-C0 Cover, Cooler Switch Hole[10.1988 - 08.1990] GX70,YX76..GL,LG BLUE,TRIM8# |
55539-32010-C0 |
from US $3.04 |
||
|
55539J
|
55539J
55539-24010-43 Cover, Choke Knob Hole[08.1990 - 04.1997] GX70,YX7#..GL,LG MEDIUM GRAY,TRIM1# |
55539-24010-43 |
US $8.01 |
||
| replacement | |||||
|
55539J
|
55539J
55539-32010-C0 Cover, Cooler Switch Hole[08.1990 - 04.1997] GX70,YX7#..GL,LG MEDIUM GRAY,TRIM1# |
55539-32010-C0 |
from US $3.04 |
||
|
55539J
|
55539J
55539-24010-56 Cover, Spare Switch Hole[10.1988 - 04.1997] GX70,YX76..GL,LG SABLE,TRIM4# |
55539-24010-56 |
US $8.01 |
||
| replacement | |||||
|
55539J
|
55539J
55539-32010-C0 Cover, Cooler Switch Hole[10.1988 - 04.1997] GX70,YX76..GL,LG SABLE,TRIM4# |
55539-32010-C0 |
from US $3.04 |
||
|
58811B
|
58811B
58801-22250-02 Box, Console[10.1988 - 02.1993] GX70..4FC NEW MAROON,TRIM3# |
58801-22250-02 |
US $388.75 |
||
|
58811B
|
58811B
58801-22250-03 Box, Console[08.1990 - 04.1997] GX70..4FC MEDIUM GRAY,TRIM1# |
58801-22250-03 |
US $388.75 |
||
|
58811B
|
58811B
58801-22250-04 Box, Console[10.1988 - 08.1990] GX70..4FC BLUE,TRIM8# |
58801-22250-04 |
US $388.75 |
||
|
58811B
|
58811B
58801-22250-06 Box, Console[10.1988 - 04.1997] GX70..4FC SABLE,TRIM4# |
58801-22250-06 |
US $388.75 |
||
|
58821C
|
58821C
58821-22091-06 Panel, Console, Upper[10.1988 - 04.1997] GX70;YX76..3FC SABLE,TRIM4# |
58821-22091-06 |
US $155.79 |
||
| replacement | |||||
|
58821C
|
58821C
58821-22091-13 Panel, Console, Upper[10.1988 - 04.1997] GX70;YX76..3FC SABLE,TRIM4# |
58821-22091-13 |
US $100.46 |
||
|
58821C
|
58821C
58821-22091-12 Panel, Console, Upper[10.1988 - 02.1993] GX70 NEW MAROON,TRIM3# |
58821-22091-12 |
US $155.79 |
||
| replacement | |||||
|
58821C
|
58821C
58821-22091-13 Panel, Console, Upper[10.1988 - 02.1993] GX70 NEW MAROON,TRIM3# |
58821-22091-13 |
US $100.46 |
||
|
58821C
|
58821C
58821-22091-13 Panel, Console, Upper[08.1990 - 04.1997] GX70;YX7#..3FC MEDIUM GRAY,TRIM1# |
58821-22091-13 |
US $100.46 |
||
|
58821C
|
58821C
58821-22091-14 Panel, Console, Upper[10.1988 - 08.1990] GX70;YX76..3FC BLUE,TRIM8# |
58821-22091-14 |
US $155.79 |
||
| replacement | |||||
|
58821C
|
58821C
58821-22091-13 Panel, Console, Upper[10.1988 - 08.1990] GX70;YX76..3FC BLUE,TRIM8# |
58821-22091-13 |
US $100.46 |
||
|
58871
|
58871
90541-03015 Cushion, Instrument Panel Box[10.1988 - 08.1990] GX70..4FC |
90541-03015 |
from US $1.56 |
||
|
58905
|
58905
58905-22070-06 Door Sub-Assy, Console Compartment[10.1988 - 04.1997] GX70..4FC SABLE,TRIM4# |
58905-22070-06 |
US $224.22 |
||
| replacement | |||||
|
58905
|
58905
58905-22070-13 Door Sub-Assy, Console Compartment[10.1988 - 04.1997] GX70..4FC SABLE,TRIM4# |
58905-22070-13 |
US $224.22 |
||
|
58905
|
58905
58905-22070-13 Door Sub-Assy, Console Compartment[08.1990 - 04.1997] GX70..4FC MEDIUM GRAY,TRIM1# |
58905-22070-13 |
US $224.22 |
||
|
58905
|
58905
58905-22070-14 Door Sub-Assy, Console Compartment[10.1988 - 08.1990] GX70..4FC BLUE,TRIM8# |
58905-22070-14 |
US $224.22 |
||
|
58905
|
58905
58905-22070-22 Door Sub-Assy, Console Compartment[10.1988 - 02.1993] GX70..4FC NEW MAROON,TRIM3# |
58905-22070-22 |
US $224.22 |
||
|
58916
|
58916
58916-22070-02 Mat, Box Bottom[10.1988 - 02.1993] GX70..4FC NEW MAROON,TRIM3# |
58916-22070-02 |
US $13.40 |
||
|
58916
|
58916
58916-22070-03 Mat, Box Bottom[08.1990 - 04.1997] GX70..4FC MEDIUM GRAY,TRIM1# |
58916-22070-03 |
US $13.40 |
||
|
58916
|
58916
58916-22070-04 Mat, Box Bottom[10.1988 - 08.1990] GX70..4FC BLUE,TRIM8# |
58916-22070-04 |
US $13.40 |
||
|
58916
|
58916
58916-22070-06 Mat, Box Bottom[10.1988 - 04.1997] GX70..4FC SABLE,TRIM4# |
58916-22070-06 |
US $13.40 |
||
|
58919B
|
58919B
58919-22030 Plate, Console Box[10.1988 - 02.1993] GX70..4FC |
58919-22030 |
US $9.90 |
||
|
58964
|
58964
58964-22030 Stopper, Console Compartment Door, No.1[10.1988 - 04.1997] GX70..4FC |
58964-22030 |
US $8.59 |
||
|
58995A
|
58995A
58995-22010 Bracket, Console Box Mounting, No.1[10.1988 - 04.1997] GX70,LX76,YX7# |
58995-22010 |
US $13.54 |
||
|
58996A
|
58996A
58996-22040 Bracket, Console Box Mounting, No.2[10.1988 - 04.1997] GX70..4FC |
58996-22040 |
US $15.14 |
||
|
9018905024
|
9018905024
90189-05024 NUT |
90189-05024 |
US $2.33 |
||
|
9354054016
|
9354054016
93540-54016 SCREW |
93540-54016 |
from US $0.78 |
||
|
9356654512
|
9356654512
93566-54512
SCREW
|
93566-54512 |
— | ||
| replacement | |||||
|
9356654512
|
9356654512
93568-54512 SCREW |
93568-54512 |
from US $0.64 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
|
9616000500
|
9616000500
96160-00500 Ring, E(For Over Center Lever) |
96160-00500 |
from US $1.01 |
||
