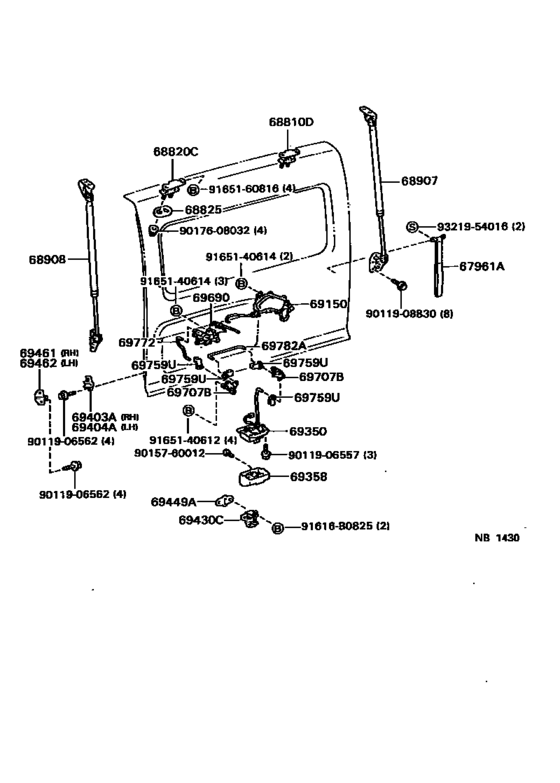

Back Door Lock & Hinge ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67961A
|
67961A
67961-26010 Strap, Back Door Pull[10.1996 -] BXD20 |
67961-26010 |
US $31.16 |
||
| replacement | |||||
|
67961A
|
67961A
67961-26020 Strap, Back Door Pull[10.1996 -] BXD20 |
67961-26020 |
US $24.32 |
||
|
68810D
|
68810D
68810-95J02 Hinge Assy, Back Door, Upper[10.1996 -] BXD20 |
68810-95J02 |
from US $24.64 |
||
|
68820C
|
68820C
68820-95J02 Hinge Assy, Back Door, Lower[10.1996 -] BXD20 |
68820-95J02 |
from US $24.36 |
||
|
68825
|
68825
68825-95700 Plate, Back Door Hinge[10.1996 -] BXD20 |
68825-95700 |
US $4.54 |
||
|
68907
|
68907
68907-65010
Stay Sub-Assy, Back Door Damper, Rh
[10.1996 -] BXD20 |
68907-65010 |
— | ||
|
68908
|
68908
68908-65010
Stay Sub-Assy, Back Door Damper, Lh
[10.1996 -] BXD20 |
68908-65010 |
— | ||
|
69150
|
69150
69150-65010 Actuator Assy, Back Door Lock[10.1996 -] BXD20 |
69150-65010 |
US $180.54 |
||
|
69350
|
69350
69350-65020
Lock Assy, Back Door
[10.1996 -] BXD20 |
69350-65020 |
— | ||
|
69358
|
69358
69358-95J00 Protector, Back Door Lock[10.1996 -] BXD20 |
69358-95J00 |
US $25.14 |
||
|
69403A
|
69403A
69403-26030
Stopper Sub-Assy, Back Door Side Female, Rh
[10.1996 -] BXD20 |
69403-26030 |
— | ||
| replacement | |||||
|
69403A
|
69403A
69403-26050 Stopper Sub-Assy, Back Door Side Female, Rh[10.1996 -] BXD20 |
69403-26050 |
from US $15.50 |
||
|
69404A
|
69404A
69403-26030
Stopper Sub-Assy, Back Door Side Female, Rh
[10.1996 -] BXD20 |
69403-26030 |
— | ||
| replacement | |||||
|
69404A
|
69404A
69403-26050 Stopper Sub-Assy, Back Door Side Female, Rh[10.1996 -] BXD20 |
69403-26050 |
from US $15.50 |
||
|
69430C
|
69430C
69430-95J01 Striker Assy, Back Door Lock[10.1996 -] BXD20 |
69430-95J01 |
from US $40.74 |
||
|
69449A
|
69449A
69449-95J00 Shim, Back Door Lock Striker[10.1996 -] BXD20 |
69449-95J00 |
US $4.30 |
||
|
69461
|
69461
69461-26030 Stopper, Back Door Side Male, Rh[10.1996 -] BXD20 |
69461-26030 |
US $9.90 |
||
|
69462
|
69462
69461-26030 Stopper, Back Door Side Male, Rh[10.1996 -] BXD20 |
69461-26030 |
US $9.90 |
||
|
69690
|
69690
69690-95J04 Control Assy, Back Door Remote[10.1996 -] BXD20 |
69690-95J04 |
US $78.96 |
||
|
69707B
|
69707B
69707-65010 Bellcrank Sub-Assy, Door Lock Control, Lower[10.1996 -] BXD20 |
69707-65010 |
US $11.36 |
||
|
69759U
|
69759U
69759-24090 Snap, Front Door Lock Control Rod[10.1996 -] BXD20 |
69759-24090 |
US $3.23 |
||
|
69772
|
69772
69772-65010 Rod, Back Door Lock Control[10.1996 -] BXD20 |
69772-65010 |
US $12.52 |
||
|
69782A
|
69782A
69782-65010
Rod, Back Door Lock Control, No.3
[10.1996 -] BXD20 |
69782-65010 |
— | ||
|
91616B0825
|
91616B0825
91616-B0825 New Genuine Part |
91616-B0825 |
US $2.87 |
||
|
9011906557
|
9011906557
90119-06557 New Genuine Part |
90119-06557 |
US $0.87 |
||
|
9011906562
|
9011906562
90119-06562 New Genuine Part |
90119-06562 |
US $0.87 |
||
|
9011908830
|
9011908830
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.79 |
||
| replacement | |||||
|
9011908830
|
9011908830
47327-60232 Tube, Rear Brake, No.7 |
47327-60232 |
US $16.13 |
||
|
9015760012
|
9015760012
90157-60012 New Genuine Part |
90157-60012 |
US $1.25 |
||
|
9017608032
|
9017608032
90176-08032 New Genuine Part |
90176-08032 |
US $1.51 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9321954016
|
9321954016
93219-54016 New Genuine Part |
93219-54016 |
US $1.60 |
||
