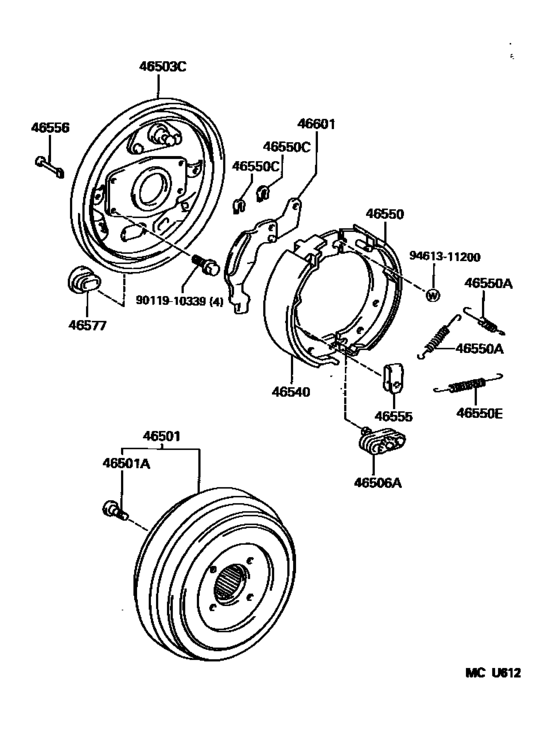

Parking Brake & Cable ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46501
|
46501
46501-36190 Drum Sub-Assy, Parking Brake[10.1996 -] BXD20 |
46501-36190 |
from US $117.29 |
||
|
46501A
|
46501A
90114-11124 Bolt (For Transfer Output Shaft Companion Flange)[10.1996 -] BXD20 |
90114-11124 |
from US $1.25 |
||
|
46503C
|
46503C
46503-65010 Plate Sub-Assy, Parking Brake[10.1996 -] BXD20 |
46503-65010 |
US $189.28 |
||
|
46506A
|
46506A
46506-36020 Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center[10.1996 -] BXD20 |
46506-36020 |
US $24.19 |
||
|
46540
|
46540
46540-36030
Shoe Assy, Parking Brake, Rh Or Center No.1
[10.1996 -] BXD20 |
46540-36030 |
— | ||
| replacement | |||||
|
46540
|
46540
46540-25010 Shoe Assy, Parking Brake, Rh Or Center No.1[10.1996 -] BXD20 |
46540-25010 |
from US $14.78 |
||
|
46550
|
46550
46550-36030
Shoe Assy, Parking Brake, Rh Or Center No.2
[10.1996 -] BXD20 |
46550-36030 |
— | ||
| replacement | |||||
|
46550
|
46550
46550-25010 Shoe Assy, Parking Brake, Rh Or Center No.2[10.1996 -] BXD20 |
46550-25010 |
from US $15.35 |
||
|
46550A
|
46550A
90506-18012 Spring, Tension, No.1(For Parking Brake Shoe Return)[10.1996 -] BXD20 |
90506-18012 |
from US $3.94 |
||
|
46550C
|
46550C
90213-06003 Washer, Type C(For Parking Brake Shoe)[10.1996 -] BXD20 |
90213-06003 |
from US $0.87 |
||
|
46550E
|
46550E
90506-14048 Spring, Tension, No.2(For Parking Brake Shoe Return)[10.1996 -] BXD20 |
90506-14048 |
from US $2.17 |
||
|
46555
|
46555
46555-35010 Spring, Brake Shoe Hold Down[10.1996 -] BXD20 |
46555-35010 |
from US $1.18 |
||
|
46556
|
46556
46556-35010 Pin, Shoe Hold Down Spring[10.1996 -] BXD20 |
46556-35010 |
from US $1.18 |
||
|
46577
|
46577
46577-36010 Cover, Adjusting Cam Hole[10.1996 -] BXD20 |
46577-36010 |
US $7.17 |
||
|
46601
|
46601
46601-36070 Lever Sub-Assy, Parking Brake Shoe[10.1996 -] BXD20 |
46601-36070 |
US $19.66 |
||
|
9011910339
|
9011910339
90119-10339 Bolt, Hexagon(For Front Disc Brake Caliper) |
90119-10339 |
US $1.61 |
||
|
9461311200
|
9461311200
94613-11200 WASHER |
94613-11200 |
US $1.25 |
||
