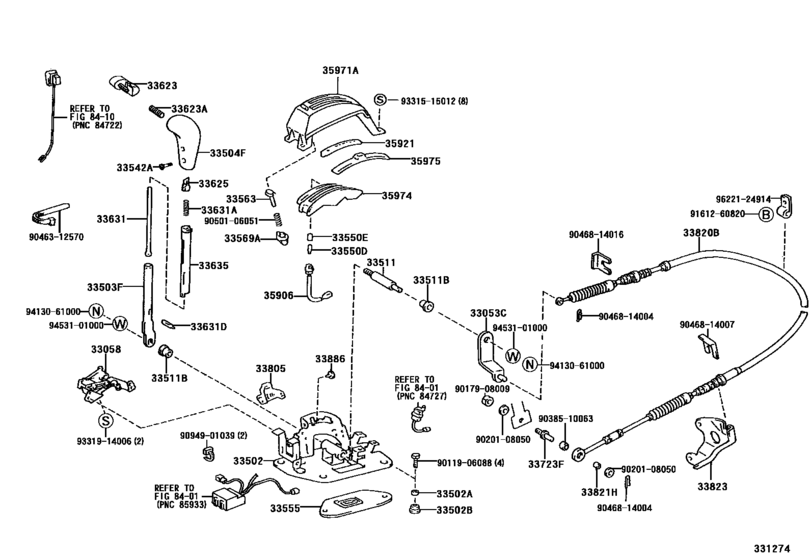

Shift Lever & Retainer ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33053C
|
33053C
33053-65010 Lever Sub-Assy, Control Select(For Floor Shift)[10.1996 -] BXD20 |
33053-65010 |
US $33.05 |
||
|
33058
|
33058
33058-65020 Bracket Sub-Assy, Shift Lock Solenoid[10.1996 -] BXD20 |
33058-65020 |
US $104.83 |
||
|
33502
|
33502
33502-65030 Plate Sub-Assy, Shift Lever[10.1996 -] BXD20 |
33502-65030 |
US $224.22 |
||
|
33502A
|
33502A
90387-06065 Collar (For Floor Shift Setting)[10.1996 -] BXD20 OD=8.8 |
90387-06065 |
US $3.23 |
||
|
33502B
|
33502B
90480-13018 Grommet (For Shift Lever Plate)[10.1996 -] BXD20 |
90480-13018 |
US $0.96 |
||
|
33503F
|
33503F
33055-65010 Lever Sub-Assy, Shift(For Floor Shift)[10.1996 -] BXD20 |
33055-65010 |
US $110.66 |
||
|
33504F
|
33504F
33542-20100-C0 Knob Sub-Assy, Shift Lever (Urethane) Black[10.1996 -] BXD20 BLACK,TRIM1# |
33542-20100-C0 |
US $51.74 |
||
|
33511
|
33511
33511-65010 Shaft, Control (For Floor Shift)[10.1996 -] BXD20 |
33511-65010 |
US $55.18 |
||
|
33511B
|
33511B
90386-15003 Bush (For Control Shaft)[10.1996 -] BXD20 |
90386-15003 |
US $1.38 |
||
|
33542A
|
33542A
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)[10.1996 -] BXD20 |
90159-40109 |
US $1.43 |
||
|
33550D
|
33550D
90981-16020 Bulb, Position Indicator Lamp[10.1996 -] BXD20 24V 1.8W |
90981-16020 |
US $6.09 |
||
|
33550E
|
33550E
90339-04014 Cap, Position Indicator Lamp[10.1996 -] BXD20 |
90339-04014 |
US $1.79 |
||
|
33555
|
33555
33555-65010
Boot, Shift Lever
[10.1996 -] BXD20 |
33555-65010 |
— | ||
|
33563
|
33563
33563-60010-C0
Button, Shift Lock Release
[10.1996 -] BXD20 BLACK,TRIM1# |
33563-60010-C0 |
— | ||
|
33569A
|
33569A
33569-60010 Guide, Shift Lock Release Button[10.1996 -] BXD20 |
33569-60010 |
US $2.97 |
||
|
33623
|
33623
33623-20060-C0 Button, Shift Lever Knob[10.1996 -] BXD20 BLACK,TRIM1# |
33623-20060-C0 |
US $17.02 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[10.1996 -] BXD20 |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-24010 Sleeve, Shift Lever Knob[10.1996 -] BXD20 |
33625-24010 |
US $5.78 |
||
|
33631
|
33631
33631-22050 Rod, Detent[10.1996 -] BXD20 |
33631-22050 |
US $8.15 |
||
|
33631A
|
33631A
90501-07074 Spring, Compression (For Detent Rod)[10.1996 -] BXD20 |
90501-07074 |
US $1.10 |
||
|
33631D
|
33631D
90256-04003 Pin, Slotted Spring (For Detent Rod)[10.1996 -] BXD20 |
90256-04003 |
US $2.97 |
||
|
33635
|
33635
33635-65020 Guide, Wire (For Shift Lever)[10.1996 -] BXD20 |
33635-65020 |
US $11.50 |
||
|
33723F
|
33723F
33723-28010 Swivel, Connecting Rod (For Column Shift)[10.1996 -] BXD20 |
33723-28010 |
US $2.62 |
||
|
33805
|
33805
33805-65010 Plate Sub-Assy, Shift Lock (For Floor Shift)[10.1996 -] BXD20 |
33805-65010 |
US $20.82 |
||
|
33820B
|
33820B
33820-65010
Cable Assy, Transmission Control
[10.1996 -] BXD20 |
33820-65010 |
— | ||
|
33821H
|
33821H
90560-08366 Spacer (For Floor Shift Control Cable)[10.1996 -] BXD20 |
90560-08366 |
US $2.33 |
||
|
33823
|
33823
33823-65010 Bracket, Transmission Control Cable, No.1[10.1996 -] BXD20 |
33823-65010 |
US $33.63 |
||
|
33886
|
33886
33886-16010 Stopper, Shift Lever[10.1996 -] BXD20 |
33886-16010 |
US $1.35 |
||
|
35906
|
35906
35906-65020 Wire Sub-Assy, Indicator Lamp[10.1996 -] BXD20 |
35906-65020 |
US $15 |
||
|
35921
|
35921
35921-60100 Plate, Control Position Indicator[10.1996 -] BXD20 |
35921-60100 |
US $10.87 |
||
|
35971A
|
35971A
35971-60080
Housing, Position Indicator, Upper
[10.1996 - 10.2001] BXD20 |
35971-60080 |
— | ||
|
35974
|
35974
35974-60050 Housing, Position Indicator, Lower[10.1996 -] BXD20 |
35974-60050 |
US $20.97 |
||
|
35975
|
35975
35975-60050 Cover, Slide (For Position Indicator)[10.1996 -] BXD20 |
35975-60050 |
US $26.91 |
||
|
9011906088
|
9011906088
90119-06088 Bolt, W/washer (For Floor Shift) |
90119-06088 |
US $1.14 |
||
|
9017908009
|
9017908009
90179-08009 New Genuine Part |
90179-08009 |
US $3.94 |
||
|
9020108050
|
9020108050
90201-08050 Washer, Plate (For Transmission Control Cable) |
90201-08050 |
US $1.16 |
||
|
9038510063
|
9038510063
90385-10063 Bush (For Floor Shift Control Shaft) |
90385-10063 |
US $3.14 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.58 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.65 |
||
|
9046814007
|
9046814007
90468-14007 New Genuine Part |
90468-14007 |
US $2.48 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.14 |
||
|
9050106051
|
9050106051
90501-06051 Spring, Compression (For Shift Lock Release Button) |
90501-06051 |
US $0.70 |
||
|
9094901039
|
9094901039
90949-01039 CLAMP |
90949-01039 |
US $1.60 |
||
|
9161260820
|
9161260820
91612-60820 Bolt(For Clutch Release Cylinder Setting) |
91612-60820 |
US $1.89 |
||
| replacement | |||||
|
9161260820
|
9161260820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.74 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.76 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
|
9622124914
|
9622124914
96221-24914 Clamp, Oil Cooler Tube, No.3 |
96221-24914 |
US $2.18 |
||
