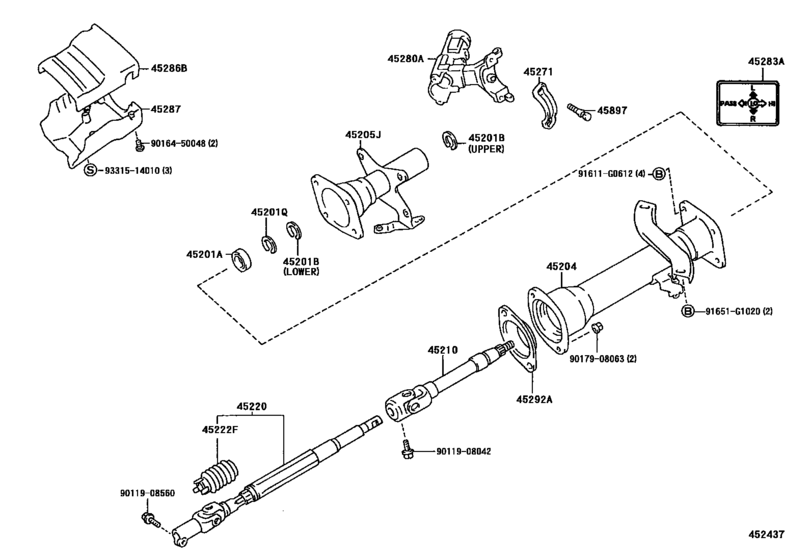

Steering Column & Shaft ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45201A
|
45201A
90363-30077
Bearing(For Steering Main Shaft)
[10.1996 -] BXD20 |
90363-30077 |
— | ||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[10.1996 -] BXD20 T=1.20,LOWER |
90520-17042 |
from US $0.80 |
||
|
45201B
|
45201B
90520-17269 Ring, Shaft Snap(For Steering Main Shaft)[10.1996 -] BXD20 T=1.20,UPPER |
90520-17269 |
US $2.15 |
||
|
45201Q
|
45201Q
96152-00300 Ring, Hole Snap (For Differential Side Gear Shaft)[10.1996 -] BXD20 |
96152-00300 |
US $0.70 |
||
|
45204
|
45204
45204-65010 Tube Assy, Steering Column, Lower[10.1996 -] BXD20 |
45204-65010 |
US $145.60 |
||
|
45205J
|
45205J
45205-65020 Tube Sub-Assy, Steering Column, Upper[10.1996 -] BXD20 |
45205-65020 |
US $90.27 |
||
|
45210
|
45210
45210-65020 Shaft Assy, Steering Main[10.1996 -] BXD20 |
45210-65020 |
US $349.44 |
||
|
45220
|
45220
45220-65010 Shaft Assy, Steering Intermediate[10.1996 -] BXD20 |
45220-65010 |
US $213.16 |
||
|
45222F
|
45222F
45222-60031 Cover, Steering Gear Dust[10.1996 -] BXD20 |
45222-60031 |
from US $5.91 |
||
|
45271
|
45271
45271-16020 Clamp, Steering Column, Upper[10.1996 -] BXD20 |
45271-16020 |
US $9.32 |
||
|
45280A
|
45280A
45280-65010 Bracket Assy, Steering Column, Upper[10.1996 -] BXD20 |
45280-65010 |
US $302.85 |
||
|
45283A
|
45283A
45283-22010 Plate, Safety Caution[10.1996 -] BXD20 |
45283-22010 |
US $2.69 |
||
|
45286B
|
45286B
45286-65010-C0 Cover, Steering Column, Upr[10.1996 -] BXD20 BLACK,TRIM1# |
45286-65010-C0 |
US $47.61 |
||
|
45287
|
45287
45287-65010-C0 Cover, Steering Column, Lwr[10.1996 -] BXD20 BLACK,TRIM1# |
45287-65010-C0 |
US $75.71 |
||
|
45292A
|
45292A
45292-27020 Seal, Main Shaft Lower Dust[10.1996 -] BXD20 |
45292-27020 |
US $11.53 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[10.1996 -] BXD20 |
45897-12020 |
from US $2.62 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
91651G1020
|
91651G1020
91651-G1020 BOLT |
91651-G1020 |
from US $1.03 |
||
|
9011908042
|
9011908042
90119-08042 Bolt(For Power Steering Pressure Control Valve) |
90119-08042 |
US $1.93 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.43 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 New Genuine Part |
90080-11555 |
US $4.23 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.84 |
||
|
9017908063
|
9017908063
90179-08063 NUT |
90179-08063 |
US $2.87 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.74 |
||
