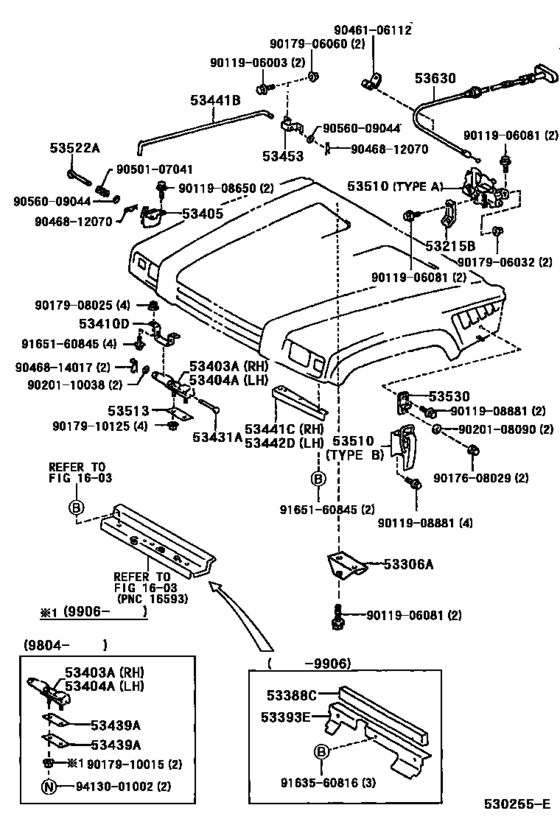

Hood Lock & Hinge ([01.1996 - ] (9601- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53215B
|
53215B
53215-65020 Support, Hood Lock[01.1996 -] BXD20 |
53215-65020 |
US $10.63 |
||
|
53306A
|
53306A
53306-65010 Reinforcement, Hood Lock Hook[01.1996 -] BXD20 |
53306-65010 |
US $32.18 |
||
|
53388C
|
53388C
53388-65020 Cushion, Hood, Rear[01.1996 - 06.1999] BXD20 |
53388-65020 |
US $27.23 |
||
|
53393E
|
53393E
53393-65010 Bracket, Radiator Seal, Upper[01.1996 - 06.1999] BXD20 |
53393-65010 |
US $53.87 |
||
|
53403A
|
53403A
53403-65020 Hinge Sub-Assy, Hood, Lower Rh[01.1996 - 04.1998] BXD20 |
53403-65020 |
US $52.12 |
||
| replacements | |||||
|
53403A
|
53403A
53403-65021 Hinge Sub-Assy, Hood, Lower Rh[01.1996 - 04.1998] BXD20 |
53403-65021 |
US $52.12 |
||
|
53403A
|
53403A
53404-65011 Hinge Sub-Assy, Hood, Lower Lh[01.1996 - 04.1998] BXD20 |
53404-65011 |
US $52.12 |
||
|
53403A
|
53403A
53439-65020 Shim, Hood Hinge[01.1996 - 04.1998] BXD20 |
53439-65020 |
US $9.03 |
||
|
53403A
|
53403A
90201-11369 New Genuine Part[01.1996 - 04.1998] BXD20 |
90201-11369 |
US $2.62 |
||
|
53403A
|
53403A
94130-01002 Nut, Booster Sleeve Cylinder[01.1996 - 04.1998] BXD20 |
94130-01002 |
from US $0.91 |
||
|
53403A
|
53403A
53403-65021 Hinge Sub-Assy, Hood, Lower Rh[04.1998 -] BXD20 |
53403-65021 |
US $52.12 |
||
|
53404A
|
53404A
53404-65010 Hinge Sub-Assy, Hood, Lower Lh[01.1996 - 04.1998] BXD20 |
53404-65010 |
US $52.12 |
||
| replacements | |||||
|
53404A
|
53404A
53403-65021 Hinge Sub-Assy, Hood, Lower Rh[01.1996 - 04.1998] BXD20 |
53403-65021 |
US $52.12 |
||
|
53404A
|
53404A
53404-65011 Hinge Sub-Assy, Hood, Lower Lh[01.1996 - 04.1998] BXD20 |
53404-65011 |
US $52.12 |
||
|
53404A
|
53404A
53439-65020 Shim, Hood Hinge[01.1996 - 04.1998] BXD20 |
53439-65020 |
US $9.03 |
||
|
53404A
|
53404A
90201-11369 New Genuine Part[01.1996 - 04.1998] BXD20 |
90201-11369 |
US $2.62 |
||
|
53404A
|
53404A
94130-01002 Nut, Booster Sleeve Cylinder[01.1996 - 04.1998] BXD20 |
94130-01002 |
from US $0.91 |
||
|
53404A
|
53404A
53404-65011 Hinge Sub-Assy, Hood, Lower Lh[04.1998 -] BXD20 |
53404-65011 |
US $52.12 |
||
|
53405
|
53405
53405-65030 Support Sub-Assy, Hood[01.1996 -] BXD20 |
53405-65030 |
US $37.86 |
||
|
53410D
|
53410D
53401-65030 Hinge Sub-Assy, Hood, Upper[01.1996 - 04.1998] BXD20 |
53401-65030 |
US $48.48 |
||
| replacement | |||||
|
53410D
|
53410D
53401-65031 Hinge Sub-Assy, Hood, Upper[01.1996 - 04.1998] BXD20 |
53401-65031 |
US $48.34 |
||
|
53410D
|
53410D
53401-65031 Hinge Sub-Assy, Hood, Upper[04.1998 -] BXD20 |
53401-65031 |
US $48.34 |
||
|
53431A
|
53431A
53431-65010 Pin, Hood Hinge[01.1996 -] BXD20 |
53431-65010 |
US $12.01 |
||
|
53439A
|
53439A
53439-65020 Shim, Hood Hinge[04.1998 -] BXD20 |
53439-65020 |
US $9.03 |
||
|
53441B
|
53441B
53441-65010 Support, Hood[01.1996 -] BXD20 |
53441-65010 |
US $19.36 |
||
|
53441C
|
53441C
53441-65020 Support, Hood, Rh[01.1996 -] BXD20 |
53441-65020 |
US $23.59 |
||
|
53442D
|
53442D
53442-65010 Support, Hood, Lh[01.1996 -] BXD20 |
53442-65010 |
US $23.59 |
||
|
53453
|
53453
53453-65030 Arm, Hood Balancer, Upper[01.1996 -] BXD20 |
53453-65030 |
US $3.49 |
||
|
53510
|
53510
53510-65010 Lock Assy, Hood[01.1996 -] BXD20 タイプ Ｂ |
53510-65010 |
US $64.21 |
||
| replacement | |||||
|
53510
|
53510
53510-65011 Lock Assy, Hood[01.1996 -] BXD20 タイプ Ｂ |
53510-65011 |
US $48.48 |
||
|
53510
|
53510
53510-65020 Lock Assy, Hood[01.1996 -] BXD20 タイプ Ａ |
53510-65020 |
US $43.10 |
||
|
53513
|
53513
53513-65020 Plate, Hood[06.1998 -] BXD20 |
53513-65020 |
US $11.36 |
||
|
53522A
|
53522A
53522-65010 Pin, Hood Lock Spring Guide[01.1996 -] BXD20 |
53522-65010 |
US $4.51 |
||
|
53530
|
53530
53530-65010 Latch Assy, Safety[01.1996 -] BXD20 |
53530-65010 |
US $10.48 |
||
|
53630
|
53630
53630-65010
Cable Assy, Hood Lock Control
[01.1996 -] BXD20 |
53630-65010 |
— | ||
|
9011906003
|
9011906003
90119-06003 New Genuine Part |
90119-06003 |
US $1.97 |
||
|
9011906081
|
9011906081
90119-06081 New Genuine Part |
90119-06081 |
US $2.87 |
||
|
9011908650
|
9011908650
90119-08650 New Genuine Part |
90119-08650 |
US $2.87 |
||
|
9011908881
|
9011908881
90119-08881 BOLT WWASHER |
90119-08881 |
US $1.89 |
||
|
9017608029
|
9017608029
90176-08029 Nut (For Front Wiper Arm Setting) |
90176-08029 |
US $9.86 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017906060
|
9017906060
90179-06060 Nut, Wing(For Air Cleaner) |
90179-06060 |
US $2.33 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.86 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.03 |
||
|
9017910125
|
9017910125
90179-10125
Nut(For Counter Gear Shaft)
|
90179-10125 |
— | ||
| replacement | |||||
|
9017910125
|
9017910125
90179-10132 Nut |
90179-10132 |
from US $0.91 |
||
|
9020108090
|
9020108090
90201-08090 New Genuine Part |
90201-08090 |
US $2.28 |
||
|
9020110038
|
9020110038
90201-10038 Washer |
90201-10038 |
US $3.05 |
||
|
9046106112
|
9046106112
90461-06112 Clamp, Brake Tube, No.6 |
90461-06112 |
US $2.33 |
||
|
9046812070
|
9046812070
90468-12070 Clip, Rear Seat Center Armrest |
90468-12070 |
US $0.52 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.80 |
||
|
9050107041
|
9050107041
90501-07041 SPRING |
90501-07041 |
US $3.23 |
||
|
9056009044
|
9056009044
90560-09044 New Genuine Part |
90560-09044 |
US $1.89 |
||
|
9163560816
|
9163560816
91635-60816 New Genuine Part |
91635-60816 |
US $0.73 |
||
|
9165160845
|
9165160845
91651-60845
Bolt(For Rocker Support Set)
|
91651-60845 |
— | ||
| replacement | |||||
|
9165160845
|
9165160845
91651-B0845 Bolt, Flange (For Idler) |
91651-B0845 |
US $1.79 |
||
|
9413001002
|
9413001002
94130-01002 Nut, Booster Sleeve Cylinder |
94130-01002 |
from US $0.91 |
||
