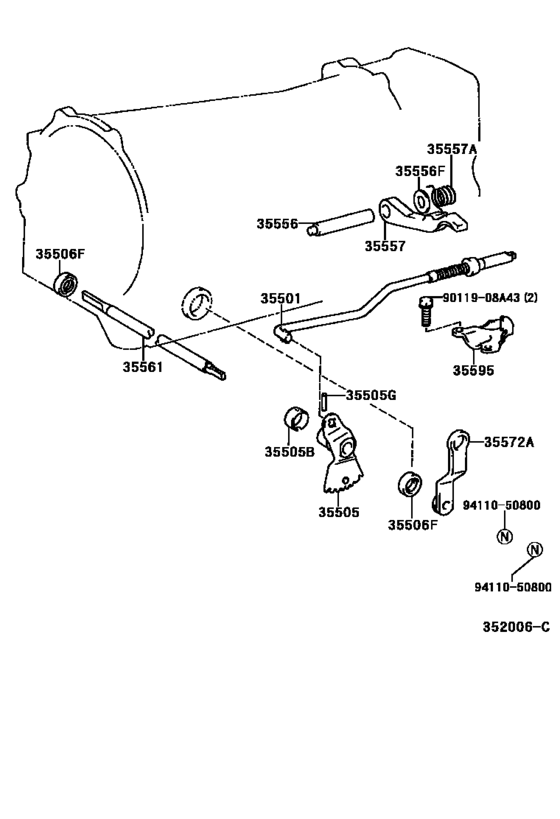

Throttle Link & Valve Lever (Atm) ([01.1996 - ] A442F,A443F (9601- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35501
|
35501
35501-25010 Rod Sub-Assy, Parking Lock[10.1997 - 06.1999] BXD20 |
35501-25010 |
US $60.42 |
||
|
35501
|
35501
35501-36021 Rod Sub-Assy, Parking Lock[01.1996 - 10.1997] BXD20 |
35501-36021 |
US $48.34 |
||
|
35505
|
35505
35505-36030 Lever Sub-Assy, Manual Valve[01.1996 - 10.1997] BXD20 |
35505-36030 |
US $38.88 |
||
|
35505
|
35505
35505-60020 Lever Sub-Assy, Manual Valve[10.1997 - 06.1999] BXD20 |
35505-60020 |
US $36.98 |
||
|
35505B
|
35505B
90560-20008 Spacer (For Manual Valve Lever)[01.1996 - 10.2001] BXD20 |
90560-20008 |
US $0.79 |
||
|
35505G
|
35505G
90254-04012 Pin, Slotted Spring (For Manual Valve Lever)[01.1996 - 10.2001] BXD20 |
90254-04012 |
US $1.14 |
||
|
35506F
|
35506F
90311-12002 Oil Seal, Type T[01.1996 - 10.2001] BXD20 |
90311-12002 |
from US $3.93 |
||
|
35556
|
35556
35556-36010 Shaft, Parking Lock Pawl[01.1996 - 10.2001] BXD20 |
35556-36010 |
US $13.69 |
||
|
35556F
|
35556F
90201-16012 Washer, Plate (For Parking Lock Pawl Shaft)[01.1996 - 10.2001] BXD20 |
90201-16012 |
US $0.87 |
||
|
35557
|
35557
35557-36010 Pawl, Parking Lock[01.1996 - 06.1999] BXD20 |
35557-36010 |
US $56.78 |
||
|
35557A
|
35557A
90508-30010 Spring, Torsion (For Parking Lock Pawl)[01.1996 - 10.2001] BXD20 |
90508-30010 |
US $2.33 |
||
|
35561
|
35561
35561-36010 Shaft, Manual Valve Lever[01.1996 - 10.2001] BXD20 |
35561-36010 |
US $28.39 |
||
|
35572A
|
35572A
35572-65010 Lever, Transmission Control Shaft[01.1996 - 10.2001] BXD20 |
35572-65010 |
US $7.43 |
||
|
35595
|
35595
35595-36010 Bracket, Parking Lock Pawl[01.1996 - 06.1999] BXD20 |
35595-36010 |
US $11.79 |
||
|
9011908A43
|
9011908A43
90119-08A43 New Genuine Part |
90119-08A43 |
US $1.43 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
