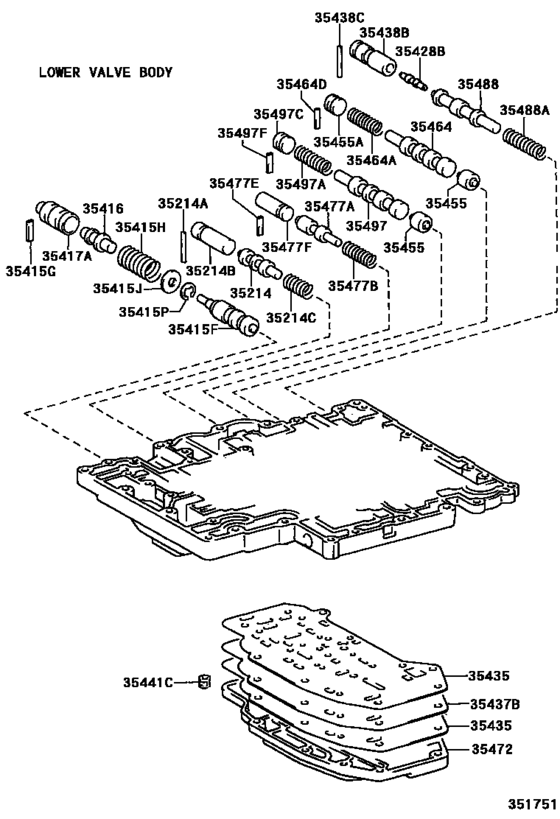

Valve Body & Oil Strainer (Atm) ([01.1996 - 06.1999] A443F (9601-9906)) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35214
|
35214
35214-36010 Valve, Lock Up Control[01.1996 - 06.1999] BXD20 |
35214-36010 |
US $9.46 |
||
|
35214A
|
35214A
90250-03082 Key, Straight (For Lock Up Control Valve)[01.1996 - 06.1999] BXD20 |
90250-03082 |
US $1.02 |
||
|
35214B
|
35214B
90339-04043 Plug (For Lock Up Control Valve)[01.1996 - 06.1999] BXD20 |
90339-04043 |
US $3.20 |
||
|
35214C
|
35214C
90501-11065 Spring, Compression (For Lock Up Control Valve)[01.1996 - 06.1999] BXD20 |
90501-11065 |
US $2.04 |
||
|
35415F
|
35415F
35415-36020 Valve, Primary Regulator[01.1996 - 06.1999] BXD20 |
35415-36020 |
US $22.57 |
||
|
35415G
|
35415G
90282-03024 Key, Straight (For Primary Regulator Valve)[01.1996 - 10.2001] BXD20 |
90282-03024 |
US $1.31 |
||
|
35415H
|
35415H
90501-20108
Spring, Compression (For Primary Regulator Valve)
[01.1996 - 06.1999] BXD20 |
90501-20108 |
— | ||
|
35415J
|
35415J
90201-06566 Washer (For Primary Regulator Valve)[01.1996 - 10.2001] BXD20 |
90201-06566 |
US $1.97 |
||
|
35415P
|
35415P
90523-06004 Ring, E (For Primary Regulator Valve)[01.1996 - 10.2001] BXD20 |
90523-06004 |
US $0.52 |
||
|
35416
|
35416
35416-60010
Plunger, Primary Regulator Valve, No.1
[01.1996 - 06.1999] BXD20 |
35416-60010 |
— | ||
|
35417A
|
35417A
35417-36030
Sleeve, Primary Regulator Valve
[01.1996 - 06.1999] BXD20 |
35417-36030 |
— | ||
|
35428B
|
35428B
35428-60030
Plug, 2-3 Shift Timing Valve
[01.1996 - 06.1999] BXD20 |
35428-60030 |
— | ||
|
35435
|
35435
35435-36020 Gasket, Valve Body Plate, No.3[01.1996 - 06.1999] BXD20 |
35435-36020 |
from US $9.16 |
||
|
35437B
|
35437B
35437-36030 Plate, Valve Body Cover[01.1996 - 06.1999] BXD20 |
35437-36030 |
US $31.30 |
||
|
35438B
|
35438B
35438-60040 Sleeve, 2-3 Shift Timing Valve Plug[01.1996 - 06.1999] BXD20 |
35438-60040 |
US $7.28 |
||
|
35438C
|
35438C
90250-03081 Pin, Straight (For 2-3 Shift Timing Valve Plug Sleeve)[01.1996 - 10.2001] BXD20 |
90250-03081 |
US $1.75 |
||
|
35441C
|
35441C
35441-36010 Strainer, Solenoid Oil[01.1996 - 10.2001] BXD20 |
35441-36010 |
US $4.30 |
||
|
35455
|
35455
35455-36020 Plug, 1-2 Shift Valve Low[01.1996 - 10.2001] BXD20 |
35455-36020 |
US $5.53 |
||
|
35455A
|
35455A
90339-04046 Plug (For 1-2 Shift Valve Low Plug)[01.1996 - 06.1999] BXD20 |
90339-04046 |
from US $0.87 |
||
|
35464
|
35464
35464-36020 Valve, 1-2 Shift[01.1996 - 06.1999] BXD20 |
35464-36020 |
US $10.34 |
||
|
35464A
|
35464A
90501-10187 Spring, Compression (For 2-3 Shift Valve)[01.1996 - 10.2001] BXD20 |
90501-10187 |
US $0.79 |
||
|
35464D
|
35464D
90282-03022 Key, Straight (For 1-2 Shift Valve)[01.1996 - 10.2001] BXD20 |
90282-03022 |
US $1.31 |
||
|
35472
|
35472
35472-36020 Cover, Valve Body, No.2[01.1996 - 06.1999] BXD20 |
35472-36020 |
US $99.01 |
||
|
35477A
|
35477A
35477-30030 Valve, Overdrive Clutch Exhaust[01.1996 - 10.2001] BXD20 |
35477-30030 |
US $5.97 |
||
|
35477B
|
35477B
90501-07042 Spring, Compression (For Overdrive Clutch Exhaust Valve)[01.1996 - 10.2001] BXD20 |
90501-07042 |
from US $0.86 |
||
|
35477E
|
35477E
90282-03022 Key, Straight (For 1-2 Shift Valve)[01.1996 - 10.2001] BXD20 |
90282-03022 |
US $1.31 |
||
|
35477F
|
35477F
90339-04044 Plug (For Overdrive Clutch Exhaust Valve)[01.1996 - 06.1999] BXD20 |
90339-04044 |
US $3.20 |
||
|
35488
|
35488
35488-36020 Valve, 2-3 Shift Timing[01.1996 - 10.2001] BXD20 |
35488-36020 |
US $6.46 |
||
|
35488A
|
35488A
90501-09124 Spring, Compression (For 2-3 Shift Timing Valve)[10.1997 - 06.1999] BXD20 |
90501-09124 |
US $2.04 |
||
|
35488A
|
35488A
90501-09134
Spring, Compression (For 2-3 Shift Timing Valve)
[01.1996 - 10.1997] BXD20 |
90501-09134 |
— | ||
|
35497
|
35497
35497-36020 Valve, 3-4 Shift[01.1996 - 06.1999] BXD20 |
35497-36020 |
US $19.66 |
||
|
35497A
|
35497A
90501-10187 Spring, Compression (For 2-3 Shift Valve)[01.1996 - 10.2001] BXD20 |
90501-10187 |
US $0.79 |
||
|
35497C
|
35497C
90339-04046 Plug (For 1-2 Shift Valve Low Plug)[01.1996 - 06.1999] BXD20 |
90339-04046 |
from US $0.87 |
||
|
35497F
|
35497F
90282-03022 Key, Straight (For 1-2 Shift Valve)[01.1996 - 10.2001] BXD20 |
90282-03022 |
US $1.31 |
