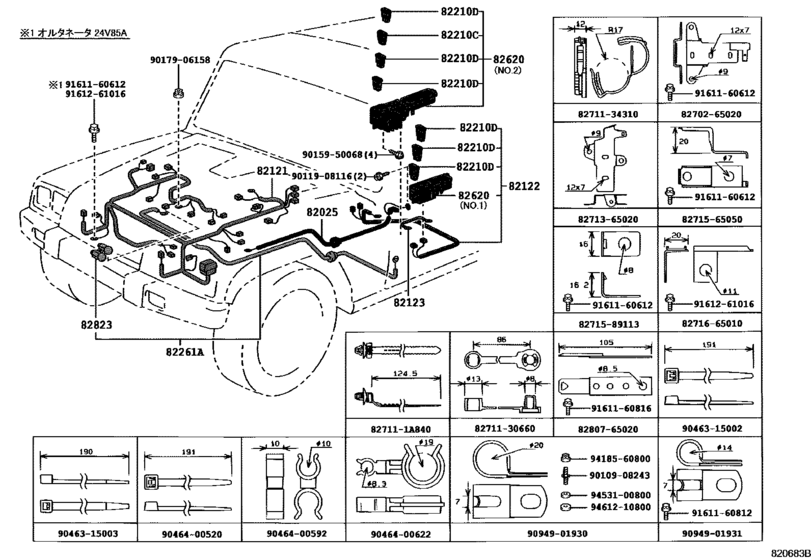

Wiring & Clamp ([01.1996 - 06.1999] ｴﾝｼﾞﾝ ﾙ-ﾑ ﾜｲﾔ (9601-9906)) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82025
|
82025
82025-65050 Wiring Sub-Assy, Front Side[01.1996 -] BXD20 |
82025-65050 |
US $125.22 |
||
|
82121
|
82121
82121-65010 Wire, Engine[01.1996 - 08.1998] BXD20 |
82121-65010 |
US $419.33 |
||
| replacement | |||||
|
82121
|
82121
82121-65011 Wire, Engine[01.1996 - 08.1998] BXD20 |
82121-65011 |
US $500.86 |
||
|
82121
|
82121
82121-65011 Wire, Engine[08.1998 - 06.1999] BXD20 |
82121-65011 |
US $500.86 |
||
|
82121
|
82121
82121-65020 Wire, Engine[01.1996 - 08.1998] BXD20 ｵﾙﾀﾈ-ﾀ=24V-85A |
82121-65020 |
US $419.33 |
||
| replacement | |||||
|
82121
|
82121
82121-65021 Wire, Engine[01.1996 - 08.1998] BXD20 ｵﾙﾀﾈ-ﾀ=24V-85A |
82121-65021 |
US $500.86 |
||
|
82121
|
82121
82121-65021 Wire, Engine[08.1998 - 06.1999] BXD20 ｵﾙﾀﾈ-ﾀ=24V-85A |
82121-65021 |
US $500.86 |
||
|
82122
|
82122
82122-65030 Wire, Engine, No.2[01.1996 - 06.1999] BXD20 |
82122-65030 |
US $74.26 |
||
|
82122
|
82122
82122-65040 Wire, Engine, No.2[01.1996 - 06.1999] BXD20 ｵﾙﾀﾈ-ﾀ=24V-85A |
82122-65040 |
US $74.26 |
||
|
82123
|
82123
82123-65010 Wire, Engine, No.3[01.1996 -] BXD20 |
82123-65010 |
US $72.07 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[01.1996 -] BXD20 ４０Ａ，メス端子 |
90982-08189 |
US $7.88 |
||
|
82210D
|
82210D
90982-08188 Fusible Link[01.1996 -] BXD20 ３０Ａ，メス端子 |
90982-08188 |
from US $4.07 |
||
|
82210D
|
82210D
90982-08189 Fusible Link[01.1996 -] BXD20 ４０Ａ，メス端子 |
90982-08189 |
US $7.88 |
||
|
82210D
|
82210D
90982-08202 Fusible Link[01.1996 -] BXD20 ６０Ａ，オス端子 |
90982-08202 |
US $12.54 |
||
|
82210D
|
82210D
90982-08203 Fusible Link[01.1996 -] BXD20 ８０Ａ，オス端子 |
90982-08203 |
from US $7.05 |
||
|
82210D
|
82210D
90982-08228 Fusible Link[01.1996 -] BXD20 ５０Ａ，オス端子 |
90982-08228 |
US $10.39 |
||
|
82210D
|
82210D
90982-08274 Fusible Link[01.1996 -] BXD20 １２０Ａ，オス端子 |
90982-08274 |
from US $8.60 |
||
|
82261A
|
82261A
82262-65010 Wire, Alternator[01.1996 -] BXD20 ｵﾙﾀﾈｰﾀ 24V 50A |
82262-65010 |
US $419.33 |
||
|
82261A
|
82261A
82262-65020 Wire, Alternator[01.1996 - 06.1999] BXD20 ｵﾙﾀﾈ-ﾀ=24V-85A |
82262-65020 |
US $529.98 |
||
|
82620
|
82620
82620-65020 Block Assy, Fusible Link[01.1996 - 06.1999] BXD20 ＮＯ．２ |
82620-65020 |
US $90.27 |
||
|
82620
|
82620
82620-65030 Block Assy, Fusible Link[01.1996 - 06.1999] BXD20 ＮＯ．１ |
82620-65030 |
US $39.31 |
||
|
82620
|
82620
82620-65040 Block Assy, Fusible Link[01.1996 - 06.1999] BXD20 ｵﾙﾀﾈ-ﾀ=24V-85A,ＮＯ．２ |
82620-65040 |
US $90.27 |
||
|
82823
|
82823
82823-30120 Cap, Terminal, No.1[01.1996 - 06.1999] BXD20 |
82823-30120 |
US $4.08 |
||
|
827111A840
|
827111A840
82711-1A840 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1A840 |
US $2.33 |
||
|
8270265020
|
8270265020
82702-65020 Bracket Sub-assy, Wiring Harness |
82702-65020 |
US $27.08 |
||
|
8271130660
|
8271130660
82711-30660 Clamp, Rear Washer Hose |
82711-30660 |
US $3.20 |
||
|
8271134310
|
8271134310
82711-34310 Clamp(For Hood Lock Control Cable) |
82711-34310 |
US $2.80 |
||
|
8271365020
|
8271365020
82713-65020 New Genuine Part |
82713-65020 |
US $17.76 |
||
|
8271565050
|
8271565050
82715-65050 Bracket,wiring Harness Clamp |
82715-65050 |
US $8.44 |
||
|
8271589113
|
8271589113
82715-89113 Bracket,wiring Harness Clamp |
82715-89113 |
US $2.48 |
||
|
8271665010
|
8271665010
82716-65010 Bracket, Wiring Harness Clamp, Lh |
82716-65010 |
US $5.68 |
||
|
8280765020
|
8280765020
82807-65020 Protector Set, Wiring Harness |
82807-65020 |
US $11.36 |
||
|
9010908243
|
9010908243
90109-08243 New Genuine Part |
90109-08243 |
US $3.49 |
||
|
9011908116
|
9011908116
90119-08116 Bolt W Washer |
90119-08116 |
US $4.30 |
||
|
9015950068
|
9015950068
90159-50068 SCREW |
90159-50068 |
US $1.25 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9046315002
|
9046315002
90463-15002 Clamp (For Accelerator Wire Set) |
90463-15002 |
US $2.15 |
||
|
9046315003
|
9046315003
90463-15003 New Genuine Part |
90463-15003 |
US $2.87 |
||
|
9046400520
|
9046400520
90464-00520 New Genuine Part |
90464-00520 |
US $1.75 |
||
|
9046400592
|
9046400592
90464-00592
Clamp, Throttle Cable, No.3
|
90464-00592 |
— | ||
|
9046400622
|
9046400622
90464-00622 New Genuine Part |
90464-00622 |
US $3.79 |
||
|
9094901930
|
9094901930
90949-01930 New Genuine Part |
90949-01930 |
US $4.22 |
||
|
9094901931
|
9094901931
90949-01931 New Genuine Part |
90949-01931 |
US $2.62 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161261016
|
9161261016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.51 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.80 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.84 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.82 |
||
