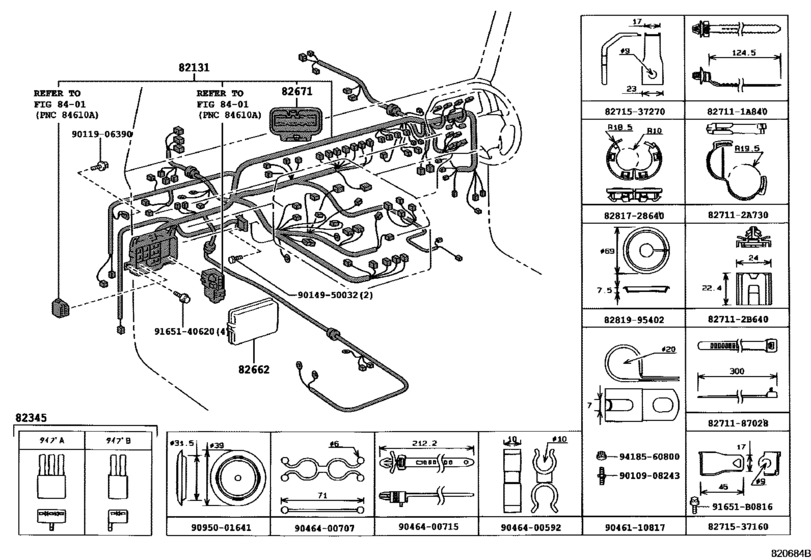

Wiring & Clamp ([01.1996 - ] ｶｳﾙ ﾜｲﾔ (9601- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82131
|
82131
82131-65010 Wire, Cowl[01.1996 - 11.1996] BXD20 |
82131-65010 |
US $2,853.76 |
||
|
82131
|
82131
82131-65011 Wire, Cowl[11.1996 - 06.1999] BXD20 |
82131-65011 |
US $3,538.08 |
||
|
82345
|
82345
82345-12030 Diode[01.1996 -] BXD20 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
82345-12030 |
US $11.36 |
||
|
82345
|
82345
82345-32020 Diode[01.1996 - 11.1996] BXD20 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
82345-32020 |
US $13.45 |
||
|
82662
|
82662
82662-37010-B0 Cover, Relay Block, Upper[01.1996 - 10.2001] BXD20 BLUISH GRAY,TRIM1# |
82662-37010-B0 |
US $22.89 |
||
|
82671
|
82671
82671-30340 Block, Junction[01.1996 - 11.1996] BXD20 |
82671-30340 |
US $10.21 |
||
|
91651B0816
|
91651B0816
91651-B0816 New Genuine Part |
91651-B0816 |
US $2.87 |
||
|
827111A840
|
827111A840
82711-1A840 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1A840 |
US $2.33 |
||
|
827112A730
|
827112A730
82711-2A730 Clamp, Throttle Cable, No.1 |
82711-2A730 |
US $5.91 |
||
|
827112B640
|
827112B640
82711-2B640 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2B640 |
US $1.97 |
||
|
8271187028
|
8271187028
82711-87028 Wire, Fuse To Fuse(for Combustion Heater) |
82711-87028 |
US $2.48 |
||
|
8271537160
|
8271537160
82715-37160 Bracket,wiring Harness Clamp |
82715-37160 |
US $3.20 |
||
|
8271537270
|
8271537270
82715-37270
Bracket,wiring Harness Clamp
|
82715-37270 |
— | ||
|
8281728640
|
8281728640
82817-28640 Protector, Wiring Harness, No.1 |
82817-28640 |
US $10.92 |
||
|
8281995402
|
8281995402
82819-95402 Grommet, Wiring Harness |
82819-95402 |
US $12.38 |
||
|
9010908243
|
9010908243
90109-08243 New Genuine Part |
90109-08243 |
US $3.49 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9014950032
|
9014950032
90149-50032 Screw |
90149-50032 |
from US $1.16 |
||
|
9046110817
|
9046110817
90461-10817 New Genuine Part |
90461-10817 |
US $5.68 |
||
|
9046400592
|
9046400592
90464-00592
Clamp, Throttle Cable, No.3
|
90464-00592 |
— | ||
|
9046400707
|
9046400707
90464-00707 New Genuine Part |
90464-00707 |
US $1.75 |
||
|
9046400715
|
9046400715
90464-00715 New Genuine Part |
90464-00715 |
US $1.46 |
||
|
9095001641
|
9095001641
90950-01641 New Genuine Part |
90950-01641 |
US $3.58 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.84 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.80 |
