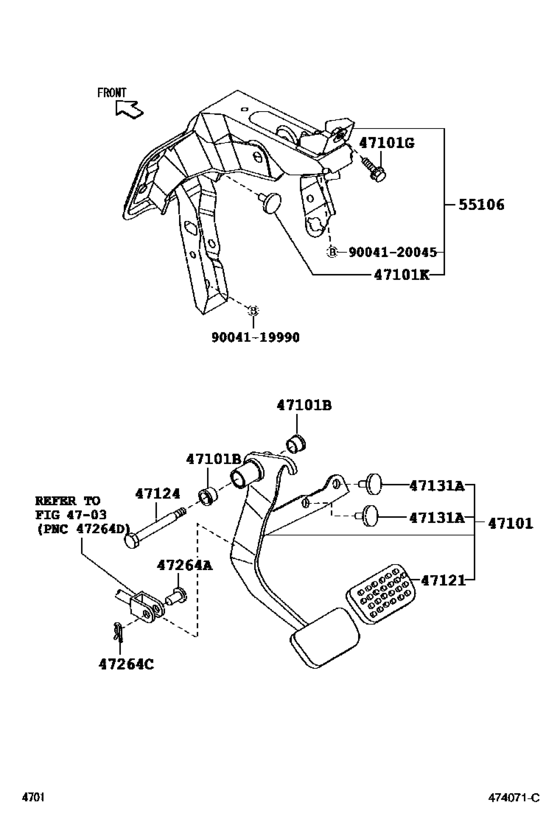

Brake Pedal & Bracket ([05.2004 - 06.2009] (0405-0906)) Diagram Toyota PASSO
- Year
- 2006 - 2010
- Sales region
- Japan
- Frame
- KGC10
- grade
- RACY
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2006
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47110-B1010 Pedal Sub-Assy, Brake[12.2006 - 02.2010] KGC1#,QNC10 |
47110-B1010 |
US $80.08 |
||
| replacement | |||||
|
47101
|
47101
47110-B1070 Pedal Sub-Assy, Brake[12.2006 - 02.2010] KGC1#,QNC10 |
47110-B1070 |
US $71.34 |
||
|
47101B
|
47101B
90043-86121 Bush(For Clutch Pedal)[12.2006 - 02.2010] KGC1#,QNC10 |
90043-86121 |
US $3.58 |
||
|
47101G
|
47101G
45898-B2010 Bolt, Brake Pedal Stop, No.1[12.2006 - 02.2010] KGC1#,QNC10 |
45898-B2010 |
US $2.62 |
||
|
47101K
|
47101K
90045-40158 Cushion, No.1(For Clutch Pedal)[12.2006 - 02.2010] KGC1#,QNC10 |
90045-40158 |
US $1.97 |
||
|
47121
|
47121
47121-87202 Pad, Brake Pedal[12.2006 - 02.2010] KGC1#,QNC10 |
47121-87202 |
US $8.96 |
||
|
47124
|
47124
31324-B2020 Shaft, Brake Pedal[12.2006 - 02.2010] KGC1#,QNC10 |
31324-B2020 |
US $4.80 |
||
|
47131A
|
47131A
90045-40158 Cushion, No.1(For Clutch Pedal)[06.2009 - 02.2010] KGC1#,QNC10 |
90045-40158 |
US $1.97 |
||
|
47264A
|
47264A
90042-40151 Pin(For Push Rod)[12.2006 - 02.2010] KGC1#,QNC10 |
90042-40151 |
US $2.33 |
||
|
47264C
|
47264C
90044-68076 Clip(For Push Rod Clevis Pin)[12.2006 - 02.2010] KGC1#,QNC10 |
90044-68076 |
US $3.40 |
||
| replacement | |||||
|
47264C
|
47264C
90044-68337 Clip(For Push Rod Clevis Pin)[12.2006 - 02.2010] KGC1#,QNC10 |
90044-68337 |
US $2.34 |
||
|
55106
|
55106
55106-B1020 Support Sub-Assy, Brake Pedal[12.2006 - 11.2008] KGC1#,QNC10 |
55106-B1020 |
US $85.90 |
||
| replacements | |||||
|
55106
|
55106
55106-B1021 Support Sub-Assy, Brake Pedal[12.2006 - 11.2008] KGC1#,QNC10 |
55106-B1021 |
US $103.38 |
||
|
55106
|
55106
90043-86134 Bush (For Accelerator Pedal Rod)[12.2006 - 11.2008] KGC1#,QNC10 |
90043-86134 |
US $2.04 |
||
|
55106
|
55106
55106-B1021 Support Sub-Assy, Brake Pedal[12.2008 - 02.2010] KGC1#,QNC10 |
55106-B1021 |
US $103.38 |
||
|
9004119990
|
9004119990
90041-19990 New Genuine Part |
90041-19990 |
US $2.18 |
||
|
9004120045
|
9004120045
90041-20045 New Genuine Part |
90041-20045 |
US $2.48 |
||
