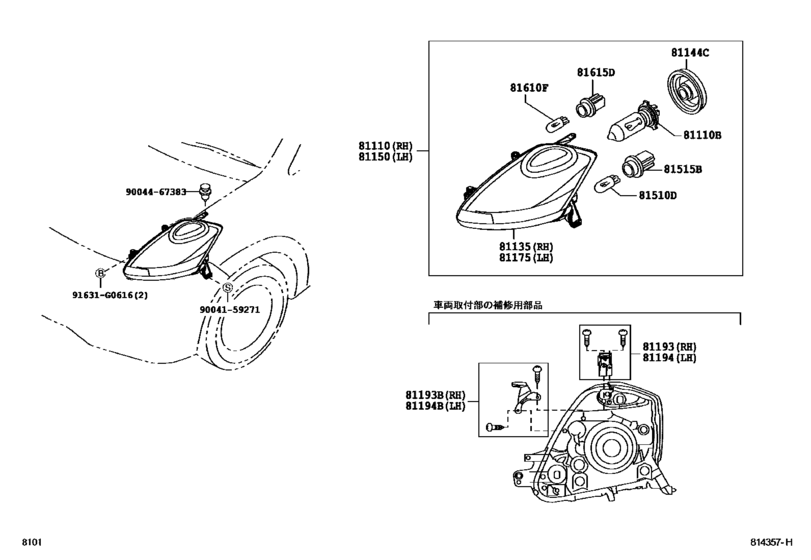

Headlamp ([05.2004 - 02.2010] (0405-1002)) Diagram Toyota PASSO
- Year
- 2006 - 2010
- Sales region
- Japan
- Frame
- KGC10
- grade
- RACY
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2006
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-B1250 Headlamp Assy, Rh[12.2006 - 02.2010] KGC1#,QNC10..RACY |
81110-B1250 |
US $471.88 |
||
|
81110
|
81110
81110-B1260 Headlamp Assy, Rh[12.2006 - 02.2010] KGC1#,QNC10..RACY ヘッド ランプ−ＨＩＤ（ブラックハウジング） |
81110-B1260 |
US $1,244.88 |
||
|
81110B
|
81110B
90049-51088 Bulb(For Headlamp, No.1)[12.2006 - 02.2010] KGC1#,QNC10 １２Ｖ ６０／５５Ｗ,Ｈ４ ハロゲン |
90049-51088 |
US $30.24 |
||
|
81110B
|
81110B
90981-13063 Bulb(For Headlamp, No.2)[12.2006 - 02.2010] KGC1#,QNC10..G,X １２Ｖ ５５Ｗ，ハロゲン,ヘッド ランプ−ＨＩＤ（グレーハウジング）; KGC1#,QNC10..RACY １２Ｖ ５５Ｗ，ハロゲン,ヘッド ランプ−ＨＩＤ（ブラックハウジング） |
90981-13063 |
from US $15.56 |
||
|
81135
|
81135
81130-B1050 Unit Assy, Headlamp, Rh[12.2006 - 02.2010] KGC1#,QNC10..RACY |
81130-B1050 |
US $352.35 |
||
|
81135
|
81135
81130-B1060 Unit Assy, Headlamp, Rh[12.2006 - 02.2010] KGC1#,QNC10..RACY ヘッド ランプ−ＨＩＤ（ブラックハウジング） |
81130-B1060 |
US $1,016.29 |
||
|
81144C
|
81144C
81139-B2010 Cover, Headlamp SocketHEADLAMP SOCKET [12.2006 - 02.2010] KGC1#,QNC10 |
81139-B2010 |
from US $11.76 |
||
|
81150
|
81150
81150-B1250 Headlamp Assy, Lh[12.2006 - 02.2010] KGC1#,QNC10..RACY |
81150-B1250 |
US $390.21 |
||
|
81150
|
81150
81150-B1260 Headlamp Assy, Lh[12.2006 - 02.2010] KGC1#,QNC10..RACY ヘッド ランプ−ＨＩＤ（ブラックハウジング） |
81150-B1260 |
US $1,244.88 |
||
|
81175
|
81175
81170-B1050 Unit Assy, Headlamp, Lh[12.2006 - 02.2010] KGC1#,QNC10..RACY |
81170-B1050 |
US $352.35 |
||
|
81175
|
81175
81170-B1060 Unit Assy, Headlamp, Lh[12.2006 - 02.2010] KGC1#,QNC10..RACY ヘッド ランプ−ＨＩＤ（ブラックハウジング） |
81170-B1060 |
US $1,016.29 |
||
|
81193
|
81193
81193-B1020 Retainer, Headlamp Protector, Upper Rh[12.2006 - 02.2010] KGC1#,QNC10 |
81193-B1020 |
US $9.03 |
||
|
81193
|
81193
81193-B1030 Retainer, Headlamp Protector, Upper Rh[12.2006 - 02.2010] KGC1#,QNC10..G,X ヘッド ランプ−ＨＩＤ（グレーハウジング）; KGC1#,QNC10..RACY ヘッド ランプ−ＨＩＤ（ブラックハウジング） |
81193-B1030 |
US $9.03 |
||
|
81193B
|
81193B
81193-B1010 Retainer, Headlamp Protector, Upper Rh No.2[12.2006 - 02.2010] KGC1#,QNC10 |
81193-B1010 |
US $5.97 |
||
|
81194
|
81194
81194-B1020 Retainer, Headlamp Protector, Upper Lh[12.2006 - 02.2010] KGC1#,QNC10 |
81194-B1020 |
US $9.03 |
||
|
81194
|
81194
81194-B1030 Retainer, Headlamp Protector, Upper Lh[12.2006 - 02.2010] KGC1#,QNC10..G,X ヘッド ランプ−ＨＩＤ（グレーハウジング）; KGC1#,QNC10..RACY ヘッド ランプ−ＨＩＤ（ブラックハウジング） |
81194-B1030 |
US $9.03 |
||
|
81194B
|
81194B
81194-B1010 Retainer, Headlamp Protector, Upper Lh No.2[12.2006 - 02.2010] KGC1#,QNC10 |
81194-B1010 |
US $5.97 |
||
|
81510D
|
81510D
90049-51148 Bulb (For Front Turn Signal Lamp)[12.2006 - 02.2010] KGC1#,QNC10 １２Ｖ ２１Ｗ，アンバー |
90049-51148 |
US $6.81 |
||
|
81515B
|
81515B
90075-60006 Cover, Headlamp Socket[12.2006 - 02.2010] KGC1#,QNC10 |
90075-60006 |
from US $6.27 |
||
|
81610F
|
81610F
90981-11013
Bulb(For Courtesy Lamp)
[12.2006 - 02.2010] KGC1#,QNC10 １２Ｖ ５Ｗ |
90981-11013 |
— | ||
| replacement | |||||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[12.2006 - 02.2010] KGC1#,QNC10 １２Ｖ ５Ｗ |
99132-12050 |
from US $1.97 |
||
|
81615D
|
81615D
9004C-82001 Socket, Clearance Lamp[12.2006 - 02.2010] KGC1#,QNC10 |
9004C-82001 |
US $8.39 |
||
|
91631G0616
|
91631G0616
91631-G0616 New Genuine Part |
91631-G0616 |
US $1.79 |
||
|
9004159271
|
9004159271
90041-59271 New Genuine Part |
90041-59271 |
US $1.79 |
||
|
9004467383
|
9004467383
90044-67383 Clip(For Front Bumper), No.2 |
90044-67383 |
US $2.33 |
||
