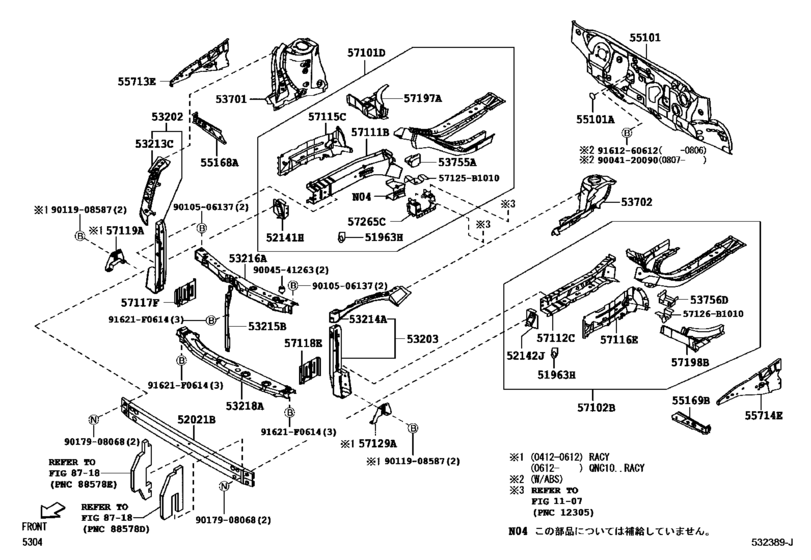

Front Fender Apron & Dash Panel ([05.2004 - 02.2010] (0405-1002)) Diagram Toyota PASSO
- Year
- 2006 - 2010
- Sales region
- Japan
- Frame
- KGC15
- grade
- RACY
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2006
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51963H
|
51963H
51963-B1010 Hook, Transport[12.2006 - 02.2010] KGC1#,QNC10 右側,左側 |
51963-B1010 |
US $10.63 |
||
|
52021B
|
52021B
52021-B1010 Reinforcement Sub-Assy, Front Bumper[12.2006 - 11.2008] KGC1#,QNC10 |
52021-B1010 |
US $195.10 |
||
| replacement | |||||
|
52021B
|
52021B
52021-B1070 Reinforcement Sub-Assy, Front Bumper[12.2006 - 11.2008] KGC1#,QNC10 |
52021-B1070 |
US $391.56 |
||
|
52021B
|
52021B
52021-B1070 Reinforcement Sub-Assy, Front Bumper[12.2008 - 02.2010] KGC1#,QNC10 |
52021-B1070 |
US $391.56 |
||
|
52141H
|
52141H
52141-B1010 Arm, Front Bumper, Upper Rh[12.2006 - 02.2010] KGC1#,QNC10 |
52141-B1010 |
US $21.38 |
||
|
52142J
|
52142J
52142-B1010 Arm, Front Bumper, Upper Lh[12.2006 - 02.2010] KGC1#,QNC10 |
52142-B1010 |
US $21.84 |
||
|
53202
|
53202
53202-B1010 Support Sub-Assy, Radiator, Rh[12.2006 - 02.2007] KGC1#,QNC10 |
53202-B1010 |
US $57.08 |
||
| replacement | |||||
|
53202
|
53202
53202-B1080 Support Sub-Assy, Radiator, Rh[12.2006 - 02.2007] KGC1#,QNC10 |
53202-B1080 |
US $81.84 |
||
|
53202
|
53202
53202-B1080 Support Sub-Assy, Radiator, Rh[02.2007 - 02.2010] KGC1#,QNC10 |
53202-B1080 |
US $81.84 |
||
|
53203
|
53203
53203-B1010 Support Sub-Assy, Radiator, Lh[12.2006 - 02.2010] KGC1#,QNC10 |
53203-B1010 |
US $80.52 |
||
|
53213C
|
53213C
53207-B1010 Support, Radiator, Upper Front[02.2007 - 02.2010] KGC1#,QNC10 |
53207-B1010 |
US $27.81 |
||
|
53213C
|
53213C
53213-B1010 Support, Radiator, Upper Front[12.2006 - 02.2007] KGC1#,QNC10 |
53213-B1010 |
US $24.02 |
||
| replacement | |||||
|
53213C
|
53213C
53207-B1010 Support, Radiator, Upper Front[12.2006 - 02.2007] KGC1#,QNC10 |
53207-B1010 |
US $27.81 |
||
|
53214A
|
53214A
53214-B1010 Support, Radiator, Upper Lh[12.2006 - 02.2010] KGC1#,QNC10 |
53214-B1010 |
US $27.81 |
||
|
53215B
|
53215B
53215-B1010 Support, Hood Lock[12.2006 - 02.2010] KGC1#,QNC10 |
53215-B1010 |
US $36.46 |
||
|
53216A
|
53216A
53205-B1050 Support, Radiator, Upper[07.2008 - 02.2010] KGC1#,QNC10 |
53205-B1050 |
US $136.12 |
||
|
53216A
|
53216A
53216-B1010 Support, Radiator, Upper[12.2006 - 02.2007] KGC1#,QNC10 |
53216-B1010 |
US $59.99 |
||
| replacement | |||||
|
53216A
|
53216A
53205-B1050 Support, Radiator, Upper[12.2006 - 02.2007] KGC1#,QNC10 |
53205-B1050 |
US $136.12 |
||
|
53216A
|
53216A
53216-B1050 Support, Radiator, Upper[02.2007 - 06.2008] KGC1#,QNC10 |
53216-B1050 |
US $59.99 |
||
| replacement | |||||
|
53216A
|
53216A
53205-B1050 Support, Radiator, Upper[02.2007 - 06.2008] KGC1#,QNC10 |
53205-B1050 |
US $136.12 |
||
|
53218A
|
53218A
53218-B1021 Support, Radiator, Lower[12.2006 - 02.2010] KGC1#,QNC10 |
53218-B1021 |
US $131.20 |
||
|
53701
|
53701
53701-B1021 Apron Sub-Assy, Front Fender, Rh[12.2006 - 03.2009] KGC1#,QNC10 |
53701-B1021 |
US $135.41 |
||
| replacement | |||||
|
53701
|
53701
53701-B1022 Apron Sub-Assy, Front Fender, Rh[12.2006 - 03.2009] KGC1#,QNC10 |
53701-B1022 |
US $142.69 |
||
|
53701
|
53701
53701-B1022 Apron Sub-Assy, Front Fender, Rh[04.2009 - 02.2010] KGC1#,QNC10 |
53701-B1022 |
US $142.69 |
||
|
53702
|
53702
53702-B1021 Apron Sub-Assy, Front Fender, Lh[12.2006 - 03.2009] KGC1#,QNC10 |
53702-B1021 |
US $135.41 |
||
| replacement | |||||
|
53702
|
53702
53702-B1022 Apron Sub-Assy, Front Fender, Lh[12.2006 - 03.2009] KGC1#,QNC10 |
53702-B1022 |
US $142.69 |
||
|
53702
|
53702
53702-B1022 Apron Sub-Assy, Front Fender, Lh[04.2009 - 02.2010] KGC1#,QNC10 |
53702-B1022 |
US $142.69 |
||
|
53755A
|
53755A
53755-B1020 Reinforcement, Brake Actuator Mounting, No.1[12.2006 - 02.2010] KGC1#,QNC10 |
53755-B1020 |
US $12.23 |
||
|
53756D
|
53756D
53756-B1020 Bracket, Brake Actuator Mounting[12.2006 - 02.2010] KGC1#,QNC10 |
53756-B1020 |
US $12.23 |
||
|
55101
|
55101
55101-B1010 Panel Sub-Assy, Dash[12.2006 - 02.2010] KGC1#,QNC10 |
55101-B1010 |
US $420.78 |
||
|
55101A
|
55101A
90048-71292 Plug, Hole, No.1(For Dash Panel)[12.2006 - 02.2010] KGC1#,QNC10 |
90048-71292 |
US $2.33 |
||
|
55168A
|
55168A
55168-B1010 Bracket, Front Fender Mounting, Rh[12.2006 - 02.2010] KGC1#,QNC10 |
55168-B1010 |
US $26.35 |
||
|
55169B
|
55169B
55169-B1010 Bracket, Front Fender Mounting, Lh[12.2006 - 02.2010] KGC1#,QNC10 |
55169-B1010 |
US $26.35 |
||
|
55713E
|
55713E
55713-B1010 Panel, Cowl Top Side, Rh[12.2006 - 02.2010] KGC1#,QNC10 |
55713-B1010 |
US $48.78 |
||
|
55714E
|
55714E
55714-B1010 Panel, Cowl Top Side, Lh[12.2006 - 02.2010] KGC1#,QNC10 |
55714-B1010 |
US $48.78 |
||
|
57101D
|
57101D
57101-B1021 Member Sub-Assy, Front Side, Rh[12.2006 - 11.2008] KGC1#,QNC10 |
57101-B1021 |
US $321.78 |
||
|
57101D
|
57101D
57101-B1023 Member Sub-Assy, Front Side, RhFRONT SIDE, RH [12.2008 - 02.2010] KGC1#,QNC10 |
57101-B1023 |
US $371.28 |
||
|
57102B
|
57102B
57102-B1021 Member Sub-Assy, Front Side, Lh[12.2006 - 11.2008] KGC1#,QNC10 |
57102-B1021 |
US $321.78 |
||
|
57102B
|
57102B
57102-B1023 Member Sub-Assy, Front Side, LhFRONT SIDE, LH [12.2008 - 02.2010] KGC1#,QNC10 |
57102-B1023 |
US $371.28 |
||
|
57111B
|
57111B
57111-B1010 Member, Front Side, Rh[12.2006 - 02.2010] KGC1#,QNC10 |
57111-B1010 |
US $91.73 |
||
|
57112C
|
57112C
57112-B1010 Member, Front Side, Lh[12.2006 - 02.2010] KGC1#,QNC10 |
57112-B1010 |
US $91.73 |
||
|
57115C
|
57115C
57115-B1010 Plate, Front Side Member, Outer, Rh[12.2006 - 02.2010] KGC1#,QNC10 |
57115-B1010 |
US $44.26 |
||
|
57116E
|
57116E
57116-B1010 Plate, Front Side Member, Outer Lh[12.2006 - 02.2010] KGC1#,QNC10 |
57116-B1010 |
US $44.26 |
||
|
57117F
|
57117F
57117-B1010 Plate Sub-Assy, Front Side Member, Front Rh[12.2006 - 02.2010] KGC1#,QNC10 |
57117-B1010 |
US $19.82 |
||
|
57118E
|
57118E
57118-B1010 Plate Sub-Assy, Front Side Member, Front Lh[12.2006 - 02.2010] KGC1#,QNC10 |
57118-B1010 |
US $15.87 |
||
|
57197A
|
57197A
57197-B1010 Box, Torque, Front Rh[12.2006 - 02.2010] KGC1#,QNC10 |
57197-B1010 |
US $33.78 |
||
|
57198B
|
57198B
57198-B1010 Box, Torque, Front Lh[12.2006 - 02.2010] KGC1#,QNC10 |
57198-B1010 |
US $33.78 |
||
|
57265C
|
57265C
57265-B1010 Bracket, Engine Mounting, Rh[12.2006 - 02.2010] KGC1#,QNC10 |
57265-B1010 |
US $39.02 |
||
|
57125B1010
|
57125B1010
57125-B1010 Bracket, Front Side Member, Rh |
57125-B1010 |
US $29.74 |
||
|
57126B1010
|
57126B1010
57126-B1010 Bracket, Front Side Member, Lh |
57126-B1010 |
US $29.74 |
||
|
91621F0614
|
91621F0614
91621-F0614
BOLT WWASHER
|
91621-F0614 |
— | ||
| replacement | |||||
|
91621F0614
|
91621F0614
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9004120090
|
9004120090
90041-20090 New Genuine Part |
90041-20090 |
US $0.73 |
||
|
9004541263
|
9004541263
90045-41263 Bumper, Hood, Front |
90045-41263 |
US $3.76 |
||
|
9010506137
|
9010506137
90105-06137 BOLT, WASHER BASED H |
90105-06137 |
from US $0.82 |
||
|
9011908587
|
9011908587
90119-08587
New Genuine Part
|
90119-08587 |
— | ||
| replacement | |||||
|
9011908587
|
9011908587
90129-08007 New Genuine Part |
90129-08007 |
US $1.61 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.78 |
||
|
9161260612
|
9161260612
91612-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-60612 |
US $2.62 |
||
| replacement | |||||
|
9161260612
|
9161260612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
