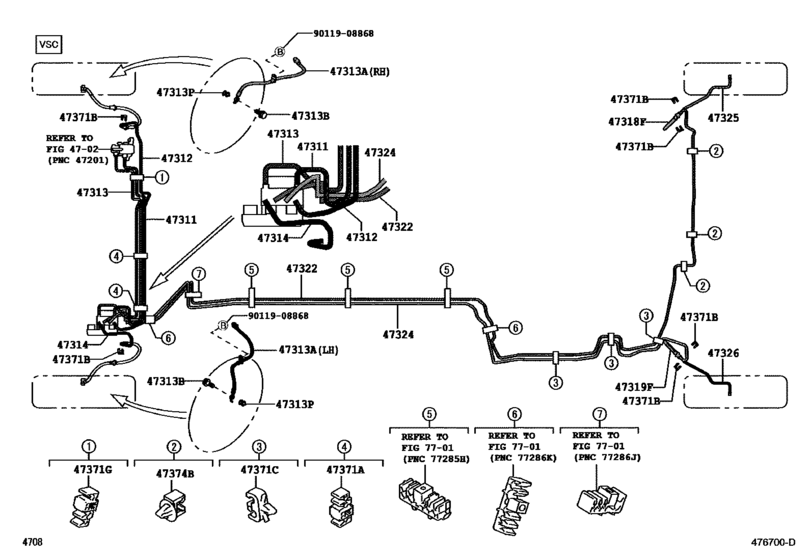

Brake Tube & Clamp ([12.2008 - ] ｱﾘ(VSC) (0812- )M502) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M502E
- grade
- S
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-B1140 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [12.2008 -] M502,512 |
47311-B1140 |
US $28.10 |
||
|
47311
|
47311
47311-B1150 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [12.2008 -] M502 有り（ＶＳＣ） |
47311-B1150 |
US $28.10 |
||
|
47312
|
47312
47312-B1070 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [12.2008 -] M502,512 |
47312-B1070 |
US $28.10 |
||
|
47312
|
47312
47312-B1080 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [12.2008 -] M502 有り（ＶＳＣ） |
47312-B1080 |
US $28.10 |
||
|
47313
|
47313
47313-B1140 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [12.2008 -] M502,512 |
47313-B1140 |
US $33.05 |
||
|
47313
|
47313
47313-B1150 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [12.2008 -] M502 有り（ＶＳＣ） |
47313-B1150 |
US $28.10 |
||
|
47313A
|
47313A
90049-22286 Hose, Flexible, No.1(For Front)FLEXIBLE, NO.1(FOR FRONT) [12.2008 -] M502,512 右側 |
90049-22286 |
US $23.06 |
||
|
47313A
|
47313A
90049-22287 Hose, Flexible, No.1(For Front)FLEXIBLE, NO.1(FOR FRONT) [12.2008 -] M502,512 左側 |
90049-22287 |
US $27.37 |
||
|
47313B
|
47313B
90401-10058 Bolt, Union(For Front Flexible Hose)[12.2008 -] M502,512 |
90401-10058 |
from US $3.94 |
||
|
47313P
|
47313P
47389-50020 Gasket(For Front Flexible Hose)[12.2008 -] M502,512 |
47389-50020 |
from US $4.83 |
||
|
47314
|
47314
47314-B1090 Tube, Front Brake, No.4FRONT BRAKE, NO.4 [12.2008 -] M502,512 |
47314-B1090 |
US $8.15 |
||
|
47314
|
47314
47314-B1100 Tube, Front Brake, No.4FRONT BRAKE, NO.4 [12.2008 -] M502 有り（ＶＳＣ） |
47314-B1100 |
US $8.15 |
||
|
47318F
|
47318F
90049-22288 Hose, Flexible(For Rear Rh)FLEXIBLE(FOR REAR RH) [12.2008 -] M502 |
90049-22288 |
US $15.55 |
||
|
47319F
|
47319F
90049-22288 Hose, Flexible(For Rear Rh)FLEXIBLE(FOR REAR RH) [12.2008 -] M502 |
90049-22288 |
US $15.55 |
||
|
47322
|
47322
47322-B1120 Tube, Rear Brake, No.2REAR BRAKE, NO.2 [12.2008 -] M502 |
47322-B1120 |
US $85.90 |
||
|
47322
|
47322
47322-B1190 Tube, Rear Brake, No.2REAR BRAKE, NO.2 [12.2008 -] M502 有り（ＶＳＣ） |
47322-B1190 |
US $85.90 |
||
|
47324
|
47324
47324-B1120 Tube, Rear Brake, No.4REAR BRAKE, NO.4 [12.2008 -] M502 |
47324-B1120 |
US $67.56 |
||
|
47324
|
47324
47324-B1190 Tube, Rear Brake, No.4REAR BRAKE, NO.4 [12.2008 -] M502 有り（ＶＳＣ） |
47324-B1190 |
US $67.56 |
||
|
47325
|
47325
47325-B1050 Tube, Rear Brake, No.5REAR BRAKE, NO.5 [12.2008 -] M502 |
47325-B1050 |
US $8.15 |
||
|
47326
|
47326
47326-B1050 Tube, Rear Brake, No.6REAR BRAKE, NO.6 [12.2008 -] M502 |
47326-B1050 |
US $8.15 |
||
|
47371A
|
47371A
90044-64781 Clamp, Front Drive Vacuum Tube, No.2[12.2008 -] M502,512 |
90044-64781 |
US $3.23 |
||
|
47371A
|
47371A
90044-64807 Clamp, Brake Tube, No.1[12.2008 -] M502 有り（ＶＳＣ） |
90044-64807 |
US $3.79 |
||
|
47371B
|
47371B
90044-65441 Clamp, Brake Tube, No.6[12.2008 -] M502,512; M512 ヘッドランプ−２灯 ＨＩＤ |
90044-65441 |
US $2.33 |
||
|
47371C
|
47371C
90044-64780 Clamp, Brake Tube, No.7[12.2008 -] M502,512 |
90044-64780 |
US $3.76 |
||
|
47371G
|
47371G
59999-B1010 Clamp, Brake Tube, No.11BRAKE TUBE, NO.11 [12.2008 -] M502,512 |
59999-B1010 |
US $4.08 |
||
|
47371G
|
47371G
59999-B1020 Clamp, Brake Tube, No.11BRAKE TUBE, NO.11 [12.2008 -] M502 有り（ＶＳＣ） |
59999-B1020 |
US $4.51 |
||
|
47374B
|
47374B
90044-64804 Clamp, Brake Tube, No.4[12.2008 -] M502,512 |
90044-64804 |
US $1.51 |
||
|
9011908868
|
9011908868
90119-08868 BOLT WWASHER |
90119-08868 |
US $1.25 |
