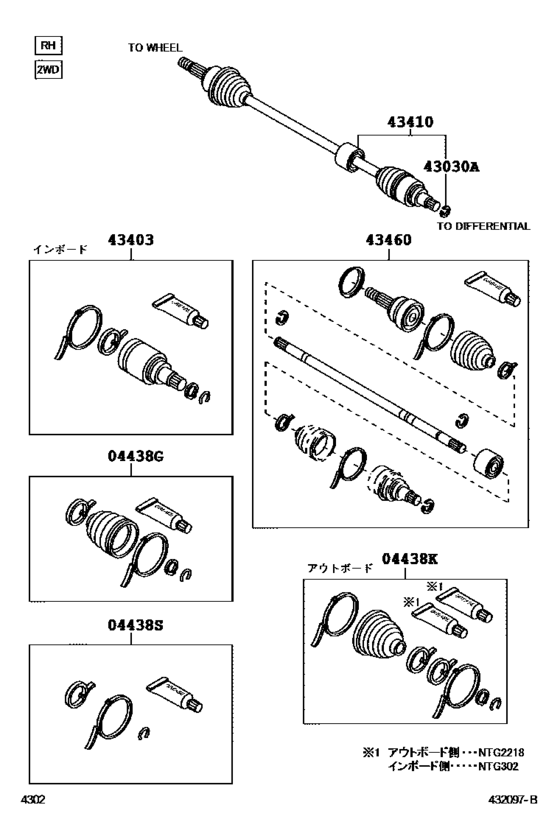

Front Drive Shaft ([12.2008 - ] RH 2WD (0812- )M502) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M502E
- grade
- S
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438G
|
04438G
04437-B1081 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.2008 -] M502,512 |
04437-B1081 |
US $36.84 |
||
| replacement | |||||
|
04438G
|
04438G
04437-B1082 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.2008 -] M502,512 |
04437-B1082 |
US $45.86 |
||
|
04438K
|
04438K
04425-B1081 Boot Kit, Front Drive Shaft Outboard Joint, Rh[12.2008 - 03.2012] M502,512 ＮＴＮ |
04425-B1081 |
US $50.23 |
||
| replacement | |||||
|
04438K
|
04438K
04425-B1082 Boot Kit, Front Drive Shaft Outboard Joint, Rh[12.2008 - 03.2012] M502,512 ＮＴＮ |
04425-B1082 |
US $63.17 |
||
|
04438S
|
04438S
04435-B1090 Clamp Kit, Front Drive Shaft, Rh[12.2008 -] M502,512 |
04435-B1090 |
US $20.09 |
||
| replacement | |||||
|
04438S
|
04438S
04435-B1091 Clamp Kit, Front Drive Shaft, Rh[12.2008 -] M502,512 |
04435-B1091 |
US $21.26 |
||
|
43030A
|
43030A
90045-20298 Ring, Hole Snap (For Front Drive Inboard Joint)[12.2008 -] M502,512 |
90045-20298 |
from US $0.78 |
||
|
43403
|
43403
43408-B9191 Joint Set, Front Axle Inboard, Rh[12.2008 -] M502 |
43408-B9191 |
US $295.57 |
||
| replacement | |||||
|
43403
|
43403
43408-B9192 Joint Set, Front Axle Inboard, Rh[12.2008 -] M502 |
43408-B9192 |
US $311.58 |
||
|
43410
|
43410
43410-B1090 Shaft Assy, Front Drive, RhFRONT DRIVE, RH [12.2008 -] M502 |
43410-B1090 |
US $818.27 |
||
|
43460
|
43460
43411-B9230 Shaft Assy, Front Drive Outboard Joint, RhFRONT DRIVE OUTBOARD JOINT, RH [12.2008 -] M502 |
43411-B9230 |
US $495.04 |
||
| replacement | |||||
|
43460
|
43460
43411-B9231 Shaft Assy, Front Drive Outboard Joint, Rh[12.2008 -] M502 |
43411-B9231 |
US $521.25 |
||
