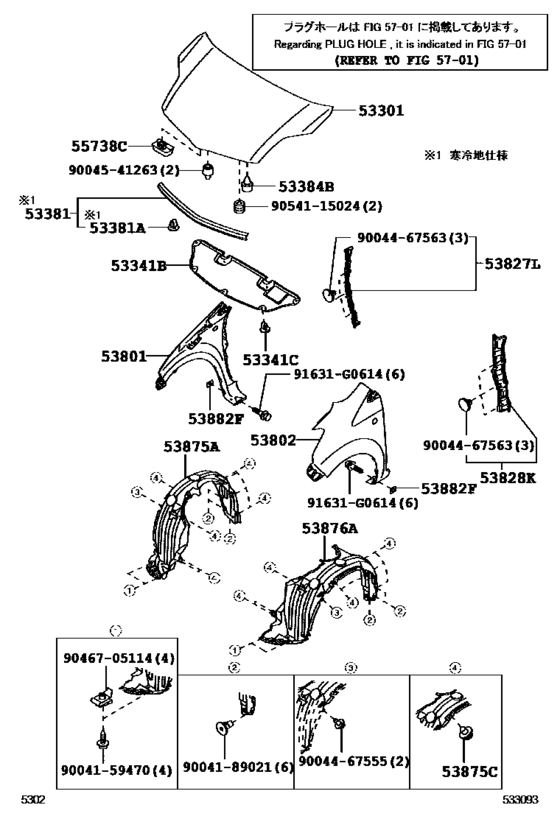

Hood & Front Fender ([12.2008 - ] (0812- )) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M502E
- grade
- S
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-B1100 Hood Sub-Assy[12.2008 -] M502,512 |
53301-B1100 |
from US $330.51 |
||
|
53341B
|
53341B
53341-B1050 Insulator, HoodHOOD [12.2008 -] M502,512 |
53341-B1050 |
US $49.50 |
||
|
53341C
|
53341C
90467-09050 Clip(For Hood Insulator)[12.2008 -] M502,512 |
90467-09050 |
from US $0.84 |
||
|
53381
|
53381
53381-B1030 Seal, Hood To Radiator SupportHOOD TO RADIATOR SUPPORT [12.2008 -] M502,512 寒冷地仕様 |
53381-B1030 |
US $17.18 |
||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[12.2008 -] M502,512 寒冷地仕様 |
90467-08011 |
from US $0.32 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[12.2008 -] M502,512 寒冷地仕様 |
90467-08011-TH |
US $0.30 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [12.2008 -] M502,512 寒冷地仕様 |
90467-08011-83 |
US $0.51 |
||
|
53384B
|
53384B
53384-B1020 Cushion, Hood, Center[12.2008 -] M502,512 |
53384-B1020 |
US $3.76 |
||
|
53801
|
53801
53811-B1160 Fender Sub-Assy, Front RhFRONT RH [12.2008 -] M502,512..S,SC |
53811-B1160 |
US $257.71 |
||
|
53802
|
53802
53812-B1160 Fender Sub-Assy, Front LhFRONT LH [12.2008 -] M502,512..S,SC |
53812-B1160 |
US $257.71 |
||
|
53827L
|
53827L
53827-B1040 Protector, Front Fender Side Panel, RhFRONT FENDER SIDE PANEL, RH [12.2008 -] M502,512 |
53827-B1040 |
US $29.56 |
||
|
53828K
|
53828K
53828-B1040 Protector, Front Fender Side Panel, LhFRONT FENDER SIDE PANEL, LH [12.2008 -] M502,512 |
53828-B1040 |
US $29.56 |
||
|
53875A
|
53875A
53875-B1070 Liner, Front Fender, RhFRONT FENDER, RH [12.2008 -] M502,512..S,SC |
53875-B1070 |
US $60.86 |
||
|
53875C
|
53875C
90044-68320
Clip, Engine Under Cover, No.2
[12.2008 -] M502,512 |
90044-68320 |
— | ||
| replacement | |||||
|
53875C
|
53875C
90044-68378 CLIP[12.2008 -] M502,512 |
90044-68378 |
from US $0.57 |
||
|
53876A
|
53876A
53876-B1070 Liner, Front Fender, LhFRONT FENDER, LH [12.2008 -] M502,512..S,SC |
53876-B1070 |
US $60.86 |
||
|
53882F
|
53882F
53882-16030 Pad, Rear Bumper, Center[12.2008 -] M502,512 |
53882-16030 |
from US $0.68 |
||
|
55738C
|
55738C
55738-B1010 Stopper, Hood, RhHOOD, RH [12.2008 -] M502,512 |
55738-B1010 |
US $5.24 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.65 |
||
|
9004159470
|
9004159470
90041-59470 New Genuine Part |
90041-59470 |
US $2.87 |
||
|
9004189021
|
9004189021
90041-89021 GROMMET SCREW |
90041-89021 |
US $2.15 |
||
|
9004467555
|
9004467555
90044-67555 Clip, Rear Bumper Side |
90044-67555 |
from US $2.03 |
||
|
9004467563
|
9004467563
90044-67563 New Genuine Part |
90044-67563 |
US $2.48 |
||
|
9004541263
|
9004541263
90045-41263 Bumper, Hood, Front |
90045-41263 |
US $3.76 |
||
|
9046705114
|
9046705114
90467-05114 Clip(For Front Bumper), No.1 |
90467-05114 |
from US $2.03 |
||
|
9054115024
|
9054115024
90541-15024 Cushion, Radiator Support |
90541-15024 |
from US $3.36 |
||
