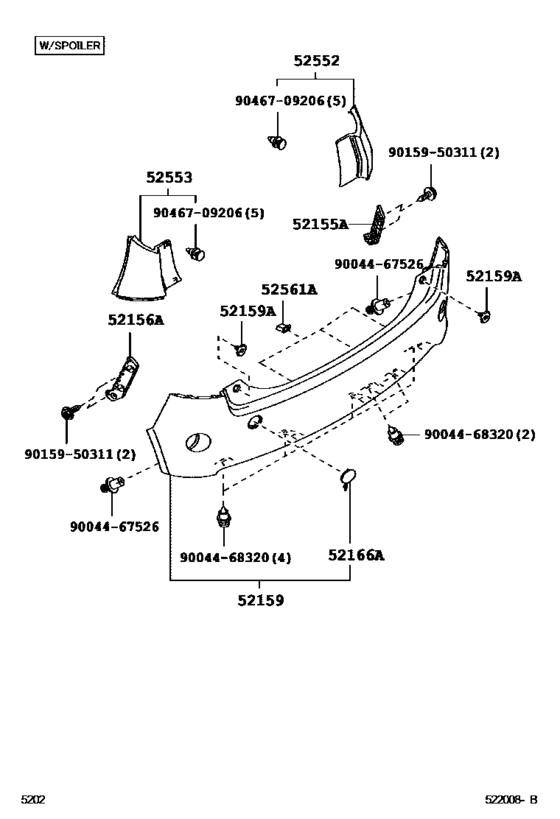

Rear Bumper & Bumper Stay ([12.2008 - ] W/SPOILER (0812- )S,SC) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M502E
- grade
- S
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52155A
|
52155A
52155-B1050 Support, Rear Bumper Side, RhREAR BUMPER SIDE, RH [12.2008 -] M502,512 |
52155-B1050 |
US $26.71 |
||
|
52156A
|
52156A
52156-B1050 Support, Rear Bumper Side, LhREAR BUMPER SIDE, LH [12.2008 -] M502,512 |
52156-B1050 |
US $26.71 |
||
|
52159
|
52159
52105-B1030-A0 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC WHITE PEARL CS.,064 |
52105-B1030-A0 |
US $538.72 |
||
|
52159
|
52159
52105-B1030-B0 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC SILVER M.M.,1E7 |
52105-B1030-B0 |
US $538.72 |
||
|
52159
|
52159
52105-B1030-C0 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC BLACK MC.,209 |
52105-B1030-C0 |
US $538.72 |
||
|
52159
|
52159
52105-B1030-D0 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC ORANGE ME.,R44 |
52105-B1030-D0 |
US $538.72 |
||
|
52159
|
52159
52105-B1030-D1 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC MAROON MC.,R56 |
52105-B1030-D1 |
US $538.72 |
||
|
52159
|
52159
52105-B1030-D2 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC SUPER RED 5,3P0 |
52105-B1030-D2 |
US $538.72 |
||
|
52159
|
52159
52105-B1030-E0 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC BEIGE ME.,4T8 |
52105-B1030-E0 |
US $538.72 |
||
|
52159
|
52159
52105-B1030-F0 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC YELLOW ME.,Y08 |
52105-B1030-F0 |
US $538.72 |
||
|
52159
|
52159
52105-B1030-H0 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC AQUA M.M.,774 |
52105-B1030-H0 |
US $538.72 |
||
|
52159
|
52159
52105-B1040-A0 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC 有り（リヤフォグランプ）,WHITE PEARL CS.,064 |
52105-B1040-A0 |
US $538.72 |
||
|
52159
|
52159
52105-B1040-B0 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC 有り（リヤフォグランプ）,SILVER M.M.,1E7 |
52105-B1040-B0 |
US $538.72 |
||
|
52159
|
52159
52105-B1040-C0 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC 有り（リヤフォグランプ）,BLACK MC.,209 |
52105-B1040-C0 |
US $538.72 |
||
|
52159
|
52159
52105-B1040-D0 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC 有り（リヤフォグランプ）,ORANGE ME.,R44 |
52105-B1040-D0 |
US $538.72 |
||
|
52159
|
52159
52105-B1040-D1 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC 有り（リヤフォグランプ）,MAROON MC.,R56 |
52105-B1040-D1 |
US $538.72 |
||
|
52159
|
52159
52105-B1040-D2 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC 有り（リヤフォグランプ）,SUPER RED 5,3P0 |
52105-B1040-D2 |
US $538.72 |
||
|
52159
|
52159
52105-B1040-E0 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC 有り（リヤフォグランプ）,BEIGE ME.,4T8 |
52105-B1040-E0 |
US $538.72 |
||
|
52159
|
52159
52105-B1040-F0 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC 有り（リヤフォグランプ）,YELLOW ME.,Y08 |
52105-B1040-F0 |
US $538.72 |
||
|
52159
|
52159
52105-B1040-H0 Cover, Rear BumperREAR BUMPER [12.2008 -] M502,512..S,SC 有り（リヤフォグランプ）,AQUA M.M.,774 |
52105-B1040-H0 |
US $538.72 |
||
|
52159A
|
52159A
45898-B1011 Bolt(For Rear Bumper Cover)[12.2008 -] M502,512 |
45898-B1011 |
US $3.94 |
||
|
52166A
|
52166A
52166-B1120-A0 Cover, Rear Bumper, Upr LhREAR BUMPER, UPR LH [12.2008 - 03.2012] M502,512..S,SC WHITE PEARL CS.,064 |
52166-B1120-A0 |
US $14.85 |
||
|
52166A
|
52166A
52166-B1120-B0 Cover, Rear Bumper, Upr LhREAR BUMPER, UPR LH [12.2008 - 03.2012] M502,512..S,SC SILVER M.M.,1E7 |
52166-B1120-B0 |
US $14.85 |
||
|
52166A
|
52166A
52166-B1120-C0 Cover, Rear Bumper, Upr LhREAR BUMPER, UPR LH [12.2008 - 03.2012] M502,512..S,SC BLACK MC.,209 |
52166-B1120-C0 |
US $14.85 |
||
|
52166A
|
52166A
52166-B1120-D0 Cover, Rear Bumper, Upr LhREAR BUMPER, UPR LH [12.2008 - 03.2012] M502,512..S,SC ORANGE ME.,R44 |
52166-B1120-D0 |
US $14.85 |
||
|
52166A
|
52166A
52166-B1120-D1 Cover, Rear Bumper, Upr LhREAR BUMPER, UPR LH [12.2008 - 03.2012] M502,512..S,SC MAROON MC.,R56 |
52166-B1120-D1 |
US $14.85 |
||
|
52166A
|
52166A
52166-B1120-D2 Cover, Rear Bumper, Upr LhREAR BUMPER, UPR LH [12.2008 - 03.2012] M502,512..S,SC SUPER RED 5,3P0 |
52166-B1120-D2 |
US $14.85 |
||
|
52166A
|
52166A
52166-B1120-E0 Cover, Rear Bumper, Upr LhREAR BUMPER, UPR LH [12.2008 - 03.2012] M502,512..S,SC BEIGE ME.,4T8 |
52166-B1120-E0 |
US $14.85 |
||
|
52166A
|
52166A
52166-B1120-F0 Cover, Rear Bumper, Upr LhREAR BUMPER, UPR LH [12.2008 - 03.2012] M502,512..S,SC YELLOW ME.,Y08 |
52166-B1120-F0 |
US $14.85 |
||
|
52166A
|
52166A
52166-B1120-H0 Cover, Rear Bumper, Upr LhREAR BUMPER, UPR LH [12.2008 - 03.2012] M502,512..S,SC AQUA M.M.,774 |
52166-B1120-H0 |
US $14.85 |
||
|
52552
|
52552
52552-B1010-A0 Filler, Rear Bumper, RhREAR BUMPER, RH [12.2008 -] M502,512 WHITE PEARL CS.,064 |
52552-B1010-A0 |
US $73.92 |
||
|
52552
|
52552
52552-B1010-B0 Filler, Rear Bumper, RhREAR BUMPER, RH [12.2008 -] M502,512 SILVER M.M.,1E7 |
52552-B1010-B0 |
US $73.92 |
||
|
52552
|
52552
52552-B1010-C0 Filler, Rear Bumper, RhREAR BUMPER, RH [12.2008 -] M502,512 BLACK MC.,209 |
52552-B1010-C0 |
US $73.92 |
||
|
52552
|
52552
52552-B1010-D0 Filler, Rear Bumper, RhREAR BUMPER, RH [12.2008 -] M502,512 ORANGE ME.,R44 |
52552-B1010-D0 |
US $73.92 |
||
|
52552
|
52552
52552-B1010-D1 Filler, Rear Bumper, RhREAR BUMPER, RH [12.2008 -] M502,512 MAROON MC.,R56 |
52552-B1010-D1 |
US $73.92 |
||
|
52552
|
52552
52552-B1010-D2 Filler, Rear Bumper, RhREAR BUMPER, RH [12.2008 -] M502,512 SUPER RED 5,3P0 |
52552-B1010-D2 |
US $73.92 |
||
|
52552
|
52552
52552-B1010-E0 Filler, Rear Bumper, RhREAR BUMPER, RH [12.2008 -] M502,512 BEIGE ME.,4T8 |
52552-B1010-E0 |
US $73.92 |
||
|
52552
|
52552
52552-B1010-F0 Filler, Rear Bumper, RhREAR BUMPER, RH [12.2008 -] M502,512 YELLOW ME.,Y08 |
52552-B1010-F0 |
US $73.92 |
||
|
52552
|
52552
52552-B1010-H0 Filler, Rear Bumper, RhREAR BUMPER, RH [12.2008 -] M502,512 AQUA M.M.,774 |
52552-B1010-H0 |
US $73.92 |
||
|
52553
|
52553
52553-B1010-A0 Filler, Rear Bumper, LhREAR BUMPER, LH [12.2008 -] M502,512 WHITE PEARL CS.,064 |
52553-B1010-A0 |
US $57.80 |
||
|
52553
|
52553
52553-B1010-B0 Filler, Rear Bumper, LhREAR BUMPER, LH [12.2008 -] M502,512 SILVER M.M.,1E7 |
52553-B1010-B0 |
US $57.80 |
||
|
52553
|
52553
52553-B1010-C0 Filler, Rear Bumper, LhREAR BUMPER, LH [12.2008 -] M502,512 BLACK MC.,209 |
52553-B1010-C0 |
US $57.80 |
||
|
52553
|
52553
52553-B1010-D0 Filler, Rear Bumper, LhREAR BUMPER, LH [12.2008 -] M502,512 ORANGE ME.,R44 |
52553-B1010-D0 |
US $57.80 |
||
|
52553
|
52553
52553-B1010-D1 Filler, Rear Bumper, LhREAR BUMPER, LH [12.2008 -] M502,512 MAROON MC.,R56 |
52553-B1010-D1 |
US $57.80 |
||
|
52553
|
52553
52553-B1010-D2 Filler, Rear Bumper, LhREAR BUMPER, LH [12.2008 -] M502,512 SUPER RED 5,3P0 |
52553-B1010-D2 |
US $57.80 |
||
|
52553
|
52553
52553-B1010-E0 Filler, Rear Bumper, LhREAR BUMPER, LH [12.2008 -] M502,512 BEIGE ME.,4T8 |
52553-B1010-E0 |
US $57.80 |
||
|
52553
|
52553
52553-B1010-F0 Filler, Rear Bumper, LhREAR BUMPER, LH [12.2008 -] M502,512 YELLOW ME.,Y08 |
52553-B1010-F0 |
US $57.80 |
||
|
52553
|
52553
52553-B1010-H0 Filler, Rear Bumper, LhREAR BUMPER, LH [12.2008 -] M502,512 AQUA M.M.,774 |
52553-B1010-H0 |
US $57.80 |
||
|
52561A
|
52561A
52561-B1020 Clip(For Rear Bumper Retainer)[12.2008 -] M502,512 |
52561-B1020 |
US $7.35 |
||
|
9004467526
|
9004467526
90044-67526 Clip(For Rear Bumper Retainer) |
90044-67526 |
US $3.58 |
||
|
9004468320
|
9004468320
90044-68320
Clip, Engine Under Cover, No.2
|
90044-68320 |
— | ||
| replacement | |||||
|
9004468320
|
9004468320
90044-68378 CLIP |
90044-68378 |
from US $0.57 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.70 |
||
|
9046709206
|
9046709206
90467-09206 Clip, Front Air Shutter Seal |
90467-09206 |
from US $0.89 |
||
