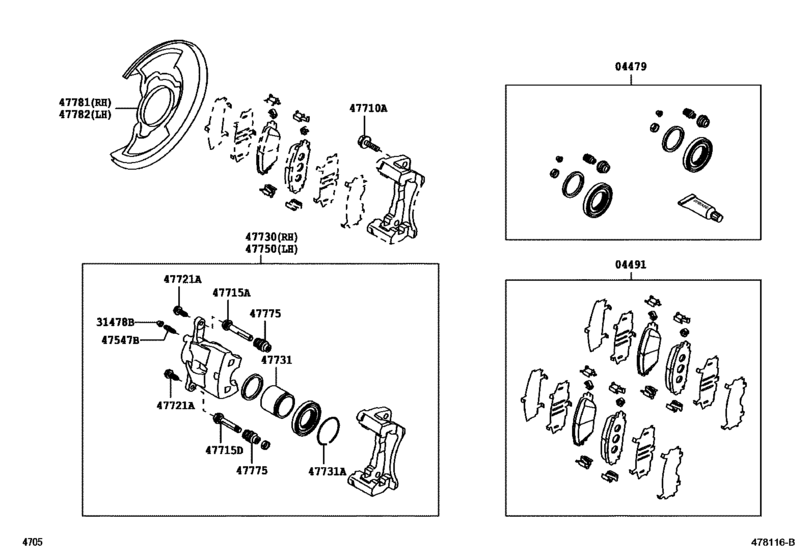

Front Disc Brake Caliper & Dust Cover ([12.2008 - ] (0812- )) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M512E
- grade
- SC
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04479
|
04479
04478-B1160 Cylinder Kit, Disc Brake, FrontDISC BRAKE, FRONT [12.2008 -] M512; M502 有り（ＶＳＣ） |
04478-B1160 |
US $45.86 |
||
|
04491
|
04491
04465-B1360 Pad Kit, Disc Brake, FrontDISC BRAKE, FRONT [12.2008 -] M512; M502 有り（ＶＳＣ） |
04465-B1360 |
US $148.51 |
||
|
31478B
|
31478B
47548-87501 Cap, Bleeder Plug(For Front Disc Brake)[12.2008 -] M502,512 |
47548-87501 |
US $3.05 |
||
|
47547B
|
47547B
47547-87204 Plug, Bleeder(For Front Disc Brake)[12.2008 -] M502,512 |
47547-87204 |
US $4.51 |
||
|
47710A
|
47710A
90041-05228 Bolt, Hexagon(For Front Disc Brake Caliper)[12.2008 -] M502,512 |
90041-05228 |
US $4.48 |
||
|
47715A
|
47715A
47715-B1030 Pin, Front Disc Brake Cylinder SlideFRONT DISC BRAKE CYLINDER SLIDE [12.2008 -] M502,512 |
47715-B1030 |
US $8.01 |
||
|
47715D
|
47715D
47715-B1040 Pin, Front Disc Brake Cylinder Slide, No.2FRONT DISC BRAKE CYLINDER SLIDE, NO.2 [12.2008 -] M502,512 |
47715-B1040 |
US $8.39 |
||
|
47721A
|
47721A
90041-05443 Bolt(For Front Disc Brake Cylinder Mounting)[12.2008 -] M502,512 |
90041-05443 |
US $2.48 |
||
|
47730
|
47730
47730-B1040 Cylinder Assy, Front Disc Brake, Rh[12.2008 -] M512; M502 有り（ＶＳＣ） |
47730-B1040 |
US $381.47 |
||
|
47731
|
47731
47731-B1030 Piston, Front Disc BrakeFRONT DISC BRAKE [12.2008 -] M512; M502 有り（ＶＳＣ） |
47731-B1030 |
US $41.35 |
||
|
47731A
|
47731A
90045-22026 Ring, Set(For Front Disc Brake Piston)SET(FOR FRONT DISC BRAKE PISTON) [12.2008 -] M512; M502 有り（ＶＳＣ） |
90045-22026 |
US $3.35 |
||
|
47750
|
47750
47750-B1040 Cylinder Assy, Disc Brake, Lh[12.2008 -] M512; M502 有り（ＶＳＣ） |
47750-B1040 |
US $381.47 |
||
|
47775
|
47775
47775-B1020 Boot, Bush Dust(For Front Disc Brake)[12.2008 - 03.2012] M502,512 |
47775-B1020 |
US $6.99 |
||
|
47781
|
47781
47781-B1020 Cover, Disc Brake Dust, Front RhDISC BRAKE DUST, FRONT RH [12.2008 -] M502,512 |
47781-B1020 |
US $17.47 |
||
|
47782
|
47782
47781-B1020 Cover, Disc Brake Dust, Front RhDISC BRAKE DUST, FRONT RH [12.2008 -] M502,512 |
47781-B1020 |
US $17.47 |
