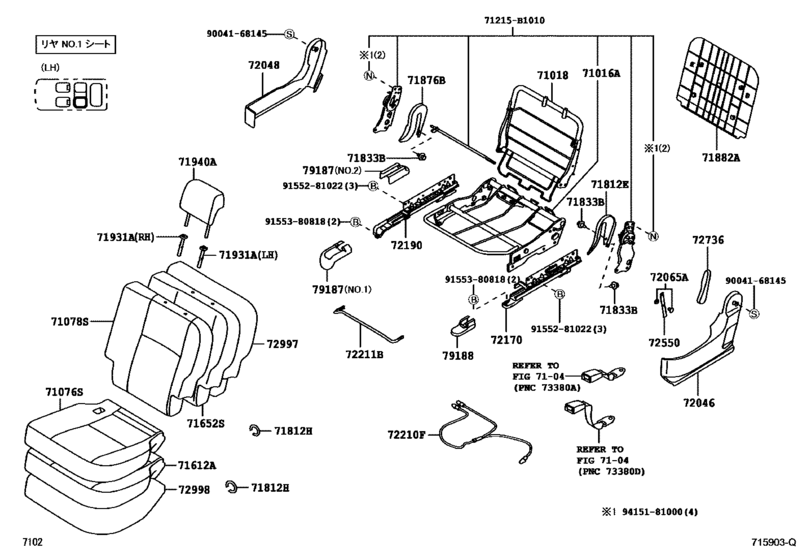

Rear Seat & Seat Track ([12.2008 - ] ﾘﾔ NO.1ｼｰﾄ(LH) (0812- )) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M512E
- grade
- SC
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71016A
|
71016A
71016-B1030 Frame Sub-Assy, Rear Seat Cushion, LhREAR SEAT CUSHION, LH [12.2008 -] M502,512 |
71016-B1030 |
US $152.88 |
||
|
71018
|
71018
71018-B1070 Frame Sub-Assy, Rear Seat Back, LhREAR SEAT BACK, LH [12.2008 -] M502,512 |
71018-B1070 |
US $132.50 |
||
|
71076S
|
71076S
71076-B1200-C1 Cover, Rear Seat Cushion, Lh (For Separate Type)REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) [12.2008 -] M502,512..S,SC -,TRIM4# |
71076-B1200-C1 |
US $227.14 |
||
|
71078S
|
71078S
71078-B1370-C1 Cover, Rear Seat Back, Lh(For Separate Type)REAR SEAT BACK, LH(FOR SEPARATE TYPE) [12.2008 -] M502,512..S,SC -,TRIM4# |
71078-B1370-C1 |
US $278.10 |
||
|
71612A
|
71612A
71504-B1070 Pad, Rear Seat Cushion, LhREAR SEAT CUSHION, LH [12.2008 -] M502,512 |
71504-B1070 |
US $106.29 |
||
|
71652S
|
71652S
71508-B1070 Pad, Rear Seat Back, Lh(For Separate Type)REAR SEAT BACK, LH(FOR SEPARATE TYPE) [12.2008 -] M502,512 |
71508-B1070 |
US $106.29 |
||
|
71812E
|
71812E
71812-B1090-E1 Cover, Reclining Adjuster, LhRECLINING ADJUSTER, LH [12.2008 -] M502,512..S,SC DK. BROWN,TRIM4# |
71812-B1090-E1 |
US $21.84 |
||
|
71812H
|
71812H
71812-87201 Clip (For Front Seat Cushion Cover)[12.2008 -] M502,512 |
71812-87201 |
US $1.97 |
||
|
71833B
|
71833B
90044-67553-E1 Clip (For Rear Seat Reclining Cover)[12.2008 -] M502,512..S,SC DK. BROWN,TRIM4# |
90044-67553-E1 |
US $1.75 |
||
|
71876B
|
71876B
71876-B1010-E1 Cover, Reclining Adjuster Inside, LhRECLINING ADJUSTER INSIDE, LH [12.2008 -] M502,512..S,SC DK. BROWN,TRIM4# |
71876-B1010-E1 |
US $21.84 |
||
|
71882A
|
71882A
71881-B1010 Board, Rear Seat Back, RhREAR SEAT BACK, RH [12.2008 -] M502,512 |
71881-B1010 |
US $44.99 |
||
|
71931A
|
71931A
71930-97202-E5 Support, Front Seat HeadrestFRONT SEAT HEADREST [12.2008 -] M502,512..S,SC ロック付,DK. BROWN,TRIM4#,左側 |
71930-97202-E5 |
US $12.23 |
||
|
71931A
|
71931A
71931-97202-E5 Support, Front Seat HeadrestFRONT SEAT HEADREST [12.2008 -] M502,512..S,SC ロック無,DK. BROWN,TRIM4#,右側 |
71931-97202-E5 |
US $8.30 |
||
|
71940A
|
71940A
71940-B1320-C0 Headrest Assy, Rear SeatREAR SEAT [12.2008 -] M502,512..S,SC -,TRIM4# |
71940-B1320-C0 |
US $167.44 |
||
|
72046
|
72046
72046-B1010-E1 Cover Sub-Assy, Rear Seat Track, Outer LhRR SEAT TRACK, OUTER LH [12.2008 -] M502,512..S,SC DK. BROWN,TRIM4# |
72046-B1010-E1 |
US $41.35 |
||
|
72048
|
72048
72048-B1010-E1 Cover Sub-Assy, Rr Seat Track, Inner LhRR SEAT TRACK, INNER LH [12.2008 -] M502,512..S,SC DK. BROWN,TRIM4# |
72048-B1010-E1 |
US $41.35 |
||
|
72065A
|
72065A
72065-B1010-E1 Hook Sub-Assy,rear Seat Cushion Lock,rhREAR SEAT CUSHION LOCK,RH [12.2008 - 04.2009] M502,512..S,SC DK. BROWN,TRIM4# |
72065-B1010-E1 |
US $2.18 |
||
|
72065A
|
72065A
72065-B1020-C0 Hook Sub-Assy,rear Seat Cushion Lock,rhREAR SEAT CUSHION LOCK,RH [05.2009 -] M502,512..S,SC BLACK,TRIM4# |
72065-B1020-C0 |
US $1.89 |
||
|
72170
|
72170
72210-B1020 Track Assy, Rear Seat, Outer LhREAR SEAT, OUTER LH [12.2008 -] M502,512 |
72210-B1020 |
US $151.42 |
||
|
72190
|
72190
72220-B1010 Track Assy, Rear Seat Inner, LhREAR SEAT INNER, LH [12.2008 -] M502,512 |
72220-B1010 |
US $171.81 |
||
|
72210F
|
72210F
72210-B1010 Cable Assy, Seat Track ControlSEAT TRACK CONTROL [12.2008 -] M502,512 右側 |
72210-B1010 |
US $44.99 |
||
|
72210F
|
72210F
72210-B1030 Cable Assy, Seat Track ControlSEAT TRACK CONTROL [12.2008 -] M502,512 左側 |
72210-B1030 |
US $44.99 |
||
|
72211B
|
72211B
72211-B1030 Handle, Seat Track AdjustingSEAT TRACK ADJUSTING [12.2008 -] M502,512 右側 |
72211-B1030 |
US $20.09 |
||
|
72211B
|
72211B
72212-B1030 Handle, Seat Track AdjustingSEAT TRACK ADJUSTING [12.2008 -] M502,512 左側 |
72212-B1030 |
US $20.09 |
||
|
72550
|
72550
75499-B1010-C0 Band Assy, Rear Seat BackREAR SEAT BACK [12.2008 -] M502,512..S,SC -,TRIM4# |
75499-B1010-C0 |
US $4.22 |
||
|
72736
|
72736
72736-B1020-E1 Lever, Rear Seat Reclining Release, LhREAR SEAT RECLINING RELEASE, LH [12.2008 -] M502,512..S,SC DK. BROWN,TRIM4# |
72736-B1020-E1 |
US $14.85 |
||
|
72997
|
72997
72996-B1030 Cover, Rear Seat Back, RhREAR SEAT BACK, RH [12.2008 -] M502,512 |
72996-B1030 |
US $6.26 |
||
|
72998
|
72998
72995-B1040 Cover, Rear Seat Cushion, RhREAR SEAT CUSHION, RH [12.2008 -] M502,512 |
72995-B1040 |
US $6.26 |
||
|
79187
|
79187
79187-B1010-B0 Cover, No.1 Seat Inner BracketNO.1 SEAT INNER BRACKET [12.2008 -] M502,512 DK.GRAY,TRIM4#,ＮＯ．１ |
79187-B1010-B0 |
US $18.35 |
||
|
79187
|
79187
79187-B1020-B0 Cover, No.1 Seat Inner BracketNO.1 SEAT INNER BRACKET [12.2008 -] M502,512 DK.GRAY,TRIM4#,ＮＯ．２ |
79187-B1020-B0 |
US $14.85 |
||
|
79188
|
79188
79188-B1010-B0 Cover, No.1 Seat Outer BracketNO.1 SEAT OUTER BRACKET [12.2008 -] M502,512 DK.GRAY,TRIM4# |
79188-B1010-B0 |
US $14.85 |
||
|
71215B1010
|
71215B1010
71215-B1010 New Genuine Part |
71215-B1010 |
US $375.65 |
||
|
9004168145
|
9004168145
90041-68145 New Genuine Part |
90041-68145 |
US $1.51 |
||
|
9155281022
|
9155281022
91552-81022 New Genuine Part |
91552-81022 |
US $1.97 |
||
|
9155380818
|
9155380818
91553-80818 BOLT FLANGE |
91553-80818 |
US $1.43 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.79 |
