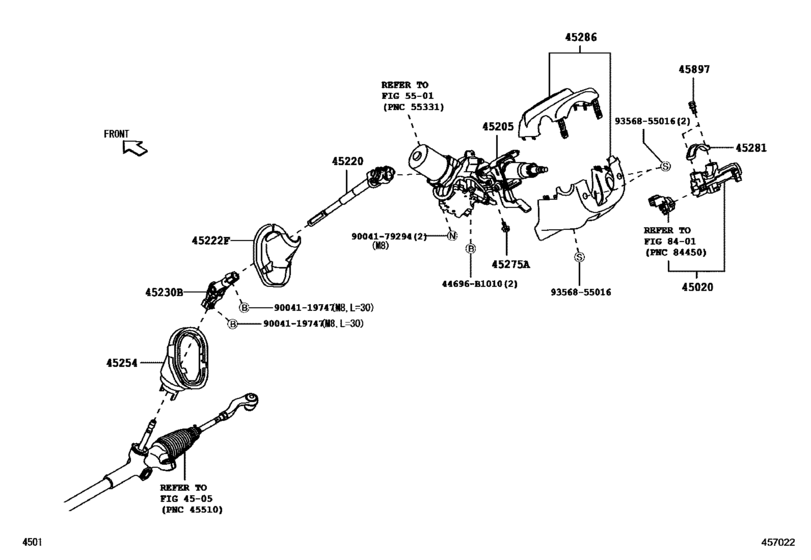

Steering Column & Shaft ([04.2016 - ] (1604- )X) Diagram Toyota PASSO
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M710A
- grade
- X
- ENGINE
- 1KRFE
- TRANSMISSION
- CVT
- Model
- PASSO
- From
- 04.2016
- Drive Train
- 4WD
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45020
|
45020
45020-B1080 Bracket Assy, Steering Column Upper W/switch[04.2016 -] M700,710..X |
45020-B1080 |
US $196.56 |
||
|
45205
|
45205
45205-B1190 Tube Sub-Assy, Steering Column[04.2016 -] M700,710..X |
45205-B1190 |
US $952.22 |
||
|
45205
|
45205
45205-B1200 Tube Sub-Assy, Steering Column[04.2016 -] M700,710..MODA; M700,710..X 有り（キーフリーシステム）＋アンサーバック |
45205-B1200 |
US $952.22 |
||
|
45220
|
45220
45220-B1160 Shaft Assy, Steering Intermediate[04.2016 -] M700,710 |
45220-B1160 |
US $94.64 |
||
|
45222F
|
45222F
45222-B1050 Cover, Dust[04.2016 -] M700,710 |
45222-B1050 |
US $19.95 |
||
|
45230B
|
45230B
45290-B1070 Joint Assy, Steering Shaft Universal[04.2016 -] M700,710 |
45290-B1070 |
US $94.64 |
||
|
45254
|
45254
45254-B1040 Shield, Steering Column Hole[04.2016 -] M700,710 |
45254-B1040 |
US $54.75 |
||
|
45275A
|
45275A
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
[04.2016 -] M700,710 Ｍ８，Ｌ＝２５ |
91651-60825 |
— | ||
| replacement | |||||
|
45275A
|
45275A
91651-B0825 Bolt, Hexagon(For Steering Column Bracket)[04.2016 -] M700,710 Ｍ８，Ｌ＝２５ |
91651-B0825 |
from US $0.82 |
||
|
45281
|
45281
45281-B1020 Housing, Steering Column[04.2016 -] M700,710..X |
45281-B1020 |
US $16.31 |
||
|
45281
|
45281
45281-B1030 Housing, Steering Column[04.2016 -] M700,710..MODA; M700,710..X Ｌ パッケージ; M700,710..X Ｇ パッケージ |
45281-B1030 |
US $16.31 |
||
|
45286
|
45286
45286-B1913-B0 Cover, Steering Column[04.2016 -] M700,710..MODA DK.GRAY,TRIM1#; M700,710..X DK.GRAY,TRIM4# |
45286-B1913-B0 |
US $46.59 |
||
|
45897
|
45897
45897-B1020 Bolt, Steering Lock Set[04.2016 -] M700,710..MODA Ｍ８，Ｌ＝２７; M700,710..X Ｌ パッケージ,Ｍ８，Ｌ＝２７; M700,710..X Ｇ パッケージ,Ｍ８，Ｌ＝２７ |
45897-B1020 |
US $6.45 |
||
|
45897
|
45897
45897-B2010 Bolt, Steering Lock Set[04.2016 -] M700,710..X Ｍ８，Ｌ＝２９．８ |
45897-B2010 |
from US $3.27 |
||
|
44696B1010
|
44696B1010
44696-B1010 Grommet, Check Valve |
44696-B1010 |
US $3.58 |
||
|
9004119747
|
9004119747
90041-19747 BOLT |
90041-19747 |
from US $0.89 |
||
|
9004179294
|
9004179294
90041-79294 New Genuine Part |
90041-79294 |
US $2.33 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.49 |
||
