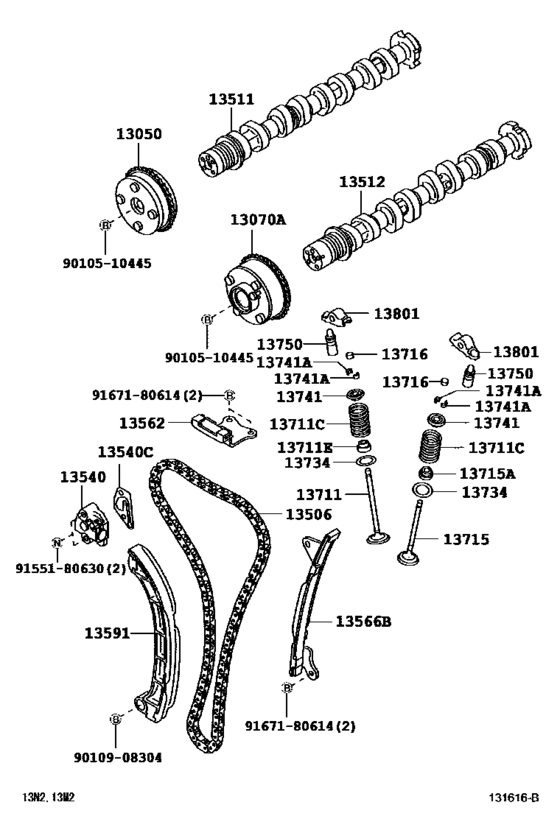

Camshaft & Valve ([02.2010 - ] (1002- )1NRFE) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- G
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13050
|
13050
13050-47010 Gear Assy, Camshaft TimingCAMSHAFT TIMING [02.2010 - 06.2012] 1NRFE..NGC30 |
13050-47010 |
US $297.02 |
||
| replacement | |||||
|
13050
|
13050
13050-47011 Gear Assy, Camshaft Timing[02.2010 - 06.2012] 1NRFE..NGC30 |
13050-47011 |
US $218.40 |
||
|
13050
|
13050
13050-47011 Gear Assy, Camshaft Timing[06.2012 - 04.2014] 1NRFE..NGC30 |
13050-47011 |
US $218.40 |
||
|
13070A
|
13070A
13070-47010 Gear Assy, Camshaft Timing ExhaustCAMSHAFT TIMING EXHAUST [02.2010 - 06.2012] 1NRFE..NGC30 |
13070-47010 |
US $265.57 |
||
|
13506
|
13506
13506-47010 Chain Sub-Assy[02.2010 - 06.2012] 1NRFE..NGC30 |
13506-47010 |
US $186.37 |
||
| replacement | |||||
|
13506
|
13506
13506-47030 Chain Sub-Assy[02.2010 - 06.2012] 1NRFE..NGC30 |
13506-47030 |
from US $100.04 |
||
|
13506
|
13506
13506-47030 Chain Sub-Assy[10.2012 - 04.2014] 1NRFE..NGC30 |
13506-47030 |
from US $100.04 |
||
|
13511
|
13511
13501-47020 Camshaft[02.2010 - 06.2012] 1NRFE..NGC30 |
13501-47020 |
from US $240.24 |
||
|
13512
|
13512
13502-47010 Camshaft, No.2NO.2 [02.2010 - 06.2012] 1NRFE..NGC30 |
13502-47010 |
from US $240.24 |
||
|
13540
|
13540
13540-47010 Tensioner Assy, Chain, No.1CHAIN, NO.1 [02.2010 - 06.2012] 1NRFE..NGC30 |
13540-47010 |
US $47.76 |
||
| replacement | |||||
|
13540
|
13540
13540-47011 Tensioner Assy, Chain, No.1[02.2010 - 06.2012] 1NRFE..NGC30 |
13540-47011 |
US $54.10 |
||
|
13540
|
13540
13540-47011 Tensioner Assy, Chain, No.1[12.2013 - 04.2014] 1NRFE..NGC30 |
13540-47011 |
US $54.10 |
||
|
13540C
|
13540C
13552-47010 Gasket(For Chain Tensioner)[02.2010 - 06.2012] 1NRFE..NGC30 |
13552-47010 |
US $4.84 |
||
|
13562
|
13562
13562-47010
Damper, Chain Vibration, No.2
[02.2010 - 06.2012] 1NRFE..NGC30 |
13562-47010 |
— | ||
| replacement | |||||
|
13562
|
13562
13562-47020 Damper, Chain Vibration, No.2[02.2010 - 06.2012] 1NRFE..NGC30 |
13562-47020 |
from US $17.81 |
||
|
13562
|
13562
13562-47020 Damper, Chain Vibration, No.2[10.2012 - 04.2014] 1NRFE..NGC30 |
13562-47020 |
from US $17.81 |
||
|
13566B
|
13566B
13566-47010 Guide, Timing ChainTIMING CHAIN [02.2010 - 06.2012] 1NRFE..NGC30 |
13566-47010 |
US $19.95 |
||
| replacement | |||||
|
13566B
|
13566B
13566-47030 Guide, Timing Chain[02.2010 - 06.2012] 1NRFE..NGC30 |
13566-47030 |
from US $10.24 |
||
|
13566B
|
13566B
13566-47030 Guide, Timing Chain[10.2012 - 04.2014] 1NRFE..NGC30 |
13566-47030 |
from US $10.24 |
||
|
13591
|
13591
13591-47010
Arm, Timing Chain Tension
[02.2010 - 06.2012] 1NRFE..NGC30 |
13591-47010 |
— | ||
| replacement | |||||
|
13591
|
13591
13591-47030
Arm, Timing Chain Tension
[02.2010 - 06.2012] 1NRFE..NGC30 |
13591-47030 |
— | ||
| replacement | |||||
|
13591
|
13591
13591-47050 Arm, Timing Chain Tension[02.2010 - 06.2012] 1NRFE..NGC30 |
13591-47050 |
US $45.19 |
||
|
13591
|
13591
13591-47030
Arm, Timing Chain Tension
[10.2012 - 04.2014] 1NRFE..NGC30 |
13591-47030 |
— | ||
| replacement | |||||
|
13591
|
13591
13591-47050 Arm, Timing Chain Tension[10.2012 - 04.2014] 1NRFE..NGC30 |
13591-47050 |
US $45.19 |
||
|
13711
|
13711
13711-47010 Valve, IntakeINTAKE [02.2010 - 06.2012] 1NRFE..NGC30 |
13711-47010 |
from US $13.47 |
||
|
13711C
|
13711C
90501-29062 Spring, Compression(For Outer)[01.2014 - 04.2014] 1NRFE..NGC30 |
90501-29062 |
US $2.91 |
||
| replacement | |||||
|
13711C
|
13711C
90501-29066 Spring, Compression(For Outer)[01.2014 - 04.2014] 1NRFE..NGC30 |
90501-29066 |
from US $2.62 |
||
|
13711C
|
13711C
90501-29066 Spring, Compression(For Outer)[01.2015 -] 1NRFE..NGC30 |
90501-29066 |
from US $2.62 |
||
|
13711C
|
13711C
90501-32062 Spring, Compression(For Outer)COMPRESSION(FOR OUTER) [02.2010 - 06.2012] 1NRFE..NGC30 |
90501-32062 |
US $2.91 |
||
|
13711E
|
13711E
90913-02101 Seal Or Ring, O(For Valve Stem Oil)Intake side [02.2010 - 06.2012] 1NRFE..NGC30 |
90913-02101 |
from US $4.84 |
||
|
13715
|
13715
13715-47010 Valve, ExhaustEXHAUST [02.2010 - 06.2012] 1NRFE..NGC30 |
13715-47010 |
from US $19.76 |
||
|
13715A
|
13715A
90913-02112 Seal Or Ring, O(For Valve Stem Oil)[02.2010 - 06.2012] 1NRFE..NGC30 |
90913-02112 |
from US $4.84 |
||
|
13716
|
13716
13716-75020 Cap, Valve Stem[02.2010 - 06.2012] 1NRFE..NGC30 |
13716-75020 |
from US $0.63 |
||
|
13734
|
13734
13734-62020 Washer, Plate(For Valve Spring Seat)[02.2010 - 06.2012] 1NRFE..NGC30 |
13734-62020 |
from US $0.55 |
||
|
13741
|
13741
13741-20021 Retainer, Valve Spring[02.2010 - 06.2012] 1NRFE..NGC30 |
13741-20021 |
from US $1.86 |
||
|
13741
|
13741
13741-36010 Retainer, Valve Spring[01.2014 - 04.2014] 1NRFE..NGC30 |
13741-36010 |
from US $1.12 |
||
|
13741A
|
13741A
90913-03028 Lock, Valve Spring Retainer[02.2010 - 06.2012] 1NRFE..NGC30 |
90913-03028 |
from US $0.95 |
||
|
13750
|
13750
13750-21010 Adjuster Assy, Valve Lash[01.2014 - 04.2014] 1NRFE..NGC30 |
13750-21010 |
from US $15.23 |
||
|
13750
|
13750
13750-75020 Adjuster Assy, Valve Lash[02.2010 - 06.2012] 1NRFE..NGC30 |
13750-75020 |
from US $16.67 |
||
|
13801
|
13801
13801-23011 Arm Sub-Assy, Valve Rocker, No.1[02.2010 - 06.2010] 1NRFE..NGC30 |
13801-23011 |
from US $25.63 |
||
|
13801
|
13801
13801-36020 Arm Sub-Assy, Valve Rocker, No.1[01.2014 - 04.2014] 1NRFE..NGC30 |
13801-36020 |
from US $30.36 |
||
|
13801
|
13801
13801-47010 Arm Sub-Assy, Valve Rocker, No.1[07.2010 - 06.2012] 1NRFE..NGC30 |
13801-47010 |
US $25.48 |
||
|
9010510445
|
9010510445
90105-10445 BOLT WASHER BASED |
90105-10445 |
from US $1.10 |
||
|
9010908304
|
9010908304
90109-08304 BOLT |
90109-08304 |
from US $1.25 |
||
|
9155180630
|
9155180630
91551-80630 Bolt(For Cylinder Head Cover) |
91551-80630 |
from US $0.63 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
