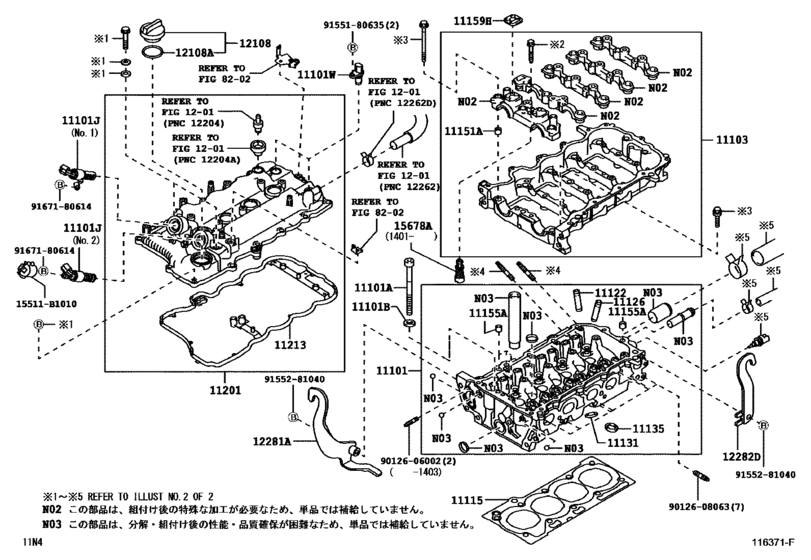

Cylinder Head ([02.2010 - ] (1002- )1NRFE) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- G
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-49465 Head Sub-Assy, CylinderCYLINDER [02.2010 - 06.2012] 1NRFE..NGC30 |
11101-49465 |
US $953.68 |
||
|
11101A
|
11101A
90910-02174 Bolt(For Cylinder Head Set)[02.2010 - 06.2012] 1NRFE..NGC30 |
90910-02174 |
from US $4.30 |
||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[02.2010 - 06.2012] 1NRFE..NGC30 |
90201-10344 |
from US $0.97 |
||
|
11101J
|
11101J
15330-47010 Valve Assy, Camshaft Timing Oil ControlCAMSHAFT TIMING OIL CONTROL [02.2010 - 06.2012] 1NRFE..NGC30 ＮＯ．１ |
15330-47010 |
from US $67.43 |
||
|
11101J
|
11101J
15330-47020 Valve Assy, Camshaft Timing Oil ControlCAMSHAFT TIMING OIL CONTROL [02.2010 - 06.2012] 1NRFE..NGC30 ＮＯ．２ |
15330-47020 |
from US $64.47 |
||
|
11101W
|
11101W
90919-05060 Sensor, Cam Position[02.2010 - 06.2012] 1NRFE..NGC30 |
90919-05060 |
from US $69.38 |
||
|
11103
|
11103
11103-47010 Housing Sub-Assy, CamshaftCAMSHAFT [02.2010 - 06.2012] 1NRFE..NGC30 |
11103-47010 |
US $343.62 |
||
| replacement | |||||
|
11103
|
11103
11103-47012 Housing Sub-Assy, Camshaft[02.2010 - 06.2012] 1NRFE..NGC30 |
11103-47012 |
US $343.62 |
||
|
11103
|
11103
11103-47011 Housing Sub-Assy, Camshaft[09.2013 - 01.2014] 1NRFE..NGC30 |
11103-47011 |
US $343.62 |
||
| replacement | |||||
|
11103
|
11103
11103-47012 Housing Sub-Assy, Camshaft[09.2013 - 01.2014] 1NRFE..NGC30 |
11103-47012 |
US $343.62 |
||
|
11103
|
11103
11103-47012 Housing Sub-Assy, Camshaft[02.2014 - 04.2014] 1NRFE..NGC30 |
11103-47012 |
US $343.62 |
||
|
11115
|
11115
11115-47050 Gasket, Cylinder HeadCYLINDER HEAD [02.2010 - 06.2012] 1NRFE..NGC30 |
11115-47050 |
from US $37.89 |
||
|
11122
|
11122
11122-31041 Bush, Intake Valve Guide[02.2010 - 06.2012] 1NRFE..NGC30 ＳＴＤ |
11122-31041 |
US $7.02 |
||
|
11122
|
11122
11123-31041 Bush, Intake Valve Guide[02.2010 - 06.2012] 1NRFE..NGC30 Ｏ／Ｓ ０．０５ |
11123-31041 |
US $7.02 |
||
|
11126
|
11126
11122-31041 Bush, Intake Valve Guide[02.2010 - 06.2012] 1NRFE..NGC30 ＳＴＤ |
11122-31041 |
US $7.02 |
||
|
11126
|
11126
11123-31041 Bush, Intake Valve Guide[02.2010 - 06.2012] 1NRFE..NGC30 Ｏ／Ｓ ０．０５ |
11123-31041 |
US $7.02 |
||
|
11131
|
11131
11131-47010 Seat, Intake ValveINTAKE VALVE [02.2010 - 06.2012] 1NRFE..NGC30 ＳＴＤ |
11131-47010 |
US $4.51 |
||
|
11131
|
11131
11132-47010 Seat, Intake ValveINTAKE VALVE [02.2010 - 06.2012] 1NRFE..NGC30 Ｏ／Ｓ ０．０３ |
11132-47010 |
US $9.46 |
||
|
11135
|
11135
11135-47010 Seat, Exhaust ValveEXHAUST VALVE [02.2010 - 06.2012] 1NRFE..NGC30 ＳＴＤ |
11135-47010 |
US $4.51 |
||
|
11135
|
11135
11136-47010 Seat, Exhaust ValveEXHAUST VALVE [02.2010 - 06.2012] 1NRFE..NGC30 Ｏ／Ｓ ０．０３ |
11136-47010 |
US $4.51 |
||
|
11151A
|
11151A
90253-13005 Pin, Ring(For Camshaft Bearing Cap Setting)[02.2010 - 06.2012] 1NRFE..NGC30 長さ＝１２．５，外径＝８ |
90253-13005 |
from US $0.53 |
||
|
11155A
|
11155A
90253-11004 Pin, Ring[02.2010 - 06.2012] 1NRFE..NGC30 |
90253-11004 |
from US $0.70 |
||
|
11159H
|
11159H
11159-47010 Gasket, Camshaft Bearing Cap Oil HoleCAMSHAFT BEARING CAP OIL HOLE [02.2010 - 06.2012] 1NRFE..NGC30 |
11159-47010 |
US $9.86 |
||
|
11159H
|
11159H
11159-47020 Gasket, Camshaft Bearing Cap Oil Hole[02.2014 - 04.2014] 1NRFE..NGC30 |
11159-47020 |
US $6.81 |
||
|
11201
|
11201
11201-47070
Cover Sub-Assy, Cylinder Head
[02.2010 - 05.2010] 1NRFE..NGC30 |
11201-47070 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-47073 Cover Sub-Assy, Cylinder Head[02.2010 - 05.2010] 1NRFE..NGC30 |
11201-47073 |
US $310.40 |
||
|
11201
|
11201
11201-47071
Cover Sub-Assy, Cylinder Head
[05.2010 - 07.2011] 1NRFE..NGC30 |
11201-47071 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-47073 Cover Sub-Assy, Cylinder Head[05.2010 - 07.2011] 1NRFE..NGC30 |
11201-47073 |
US $310.40 |
||
|
11201
|
11201
11201-47072
Cover Sub-Assy, Cylinder Head
[08.2011 - 06.2012] 1NRFE..NGC30 |
11201-47072 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-47073 Cover Sub-Assy, Cylinder Head[08.2011 - 06.2012] 1NRFE..NGC30 |
11201-47073 |
US $310.40 |
||
|
11201
|
11201
11201-47073 Cover Sub-Assy, Cylinder Head[07.2014 -] 1NRFE..NGC30 |
11201-47073 |
US $310.40 |
||
|
11213
|
11213
11213-47020 Gasket, Cylinder Head CoverCYLINDER HEAD COVER [02.2010 - 06.2012] 1NRFE..NGC30 |
11213-47020 |
from US $11.84 |
||
|
12108
|
12108
12180-38010 Cap Sub-Assy, Oil Filler[02.2010 - 06.2012] 1KRFE..KGC3#; 1NRFE..NGC30 |
12180-38010 |
from US $11.13 |
||
|
12108A
|
12108A
90430-35001 Gasket(For Oil Filler Cap)[02.2010 - 06.2012] 1KRFE..KGC3#; 1NRFE..NGC30 |
90430-35001 |
from US $1.14 |
||
|
12281A
|
12281A
12281-47022 Hanger, Engine, No.1ENGINE, NO.1 [02.2010 - 06.2012] 1NRFE..NGC30 |
12281-47022 |
US $32.61 |
||
| replacement | |||||
|
12281A
|
12281A
12281-47023 Hanger, Engine, No.1[02.2010 - 06.2012] 1NRFE..NGC30 |
12281-47023 |
US $29.56 |
||
|
12281A
|
12281A
12281-47023 Hanger, Engine, No.1[12.2013 - 04.2014] 1NRFE..NGC30 |
12281-47023 |
US $29.56 |
||
|
12282D
|
12282D
12282-47010 Hanger, Engine, No.2ENGINE, NO.2 [02.2010 - 06.2012] 1NRFE..NGC30 |
12282-47010 |
US $20.68 |
||
|
15678A
|
15678A
15678-31020 Filter, Oil Control Valve[01.2014 - 04.2014] 1NRFE..NGC30 |
15678-31020 |
from US $3.21 |
||
|
15511B1010
|
15511B1010
15511-B1010 Cover, Oil Control Valve |
15511-B1010 |
US $3.20 |
||
|
9012606002
|
9012606002
90126-06002 New Genuine Part |
90126-06002 |
US $2.69 |
||
|
9012608063
|
9012608063
90126-08063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) |
90126-08063 |
from US $0.82 |
||
|
9155180635
|
9155180635
91551-80635 Bolt(For Head To Camshaft Bearing Cap) |
91551-80635 |
from US $0.76 |
||
|
9155281040
|
9155281040
91552-81040 Bolt(For Alternator) |
91552-81040 |
from US $1.12 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
