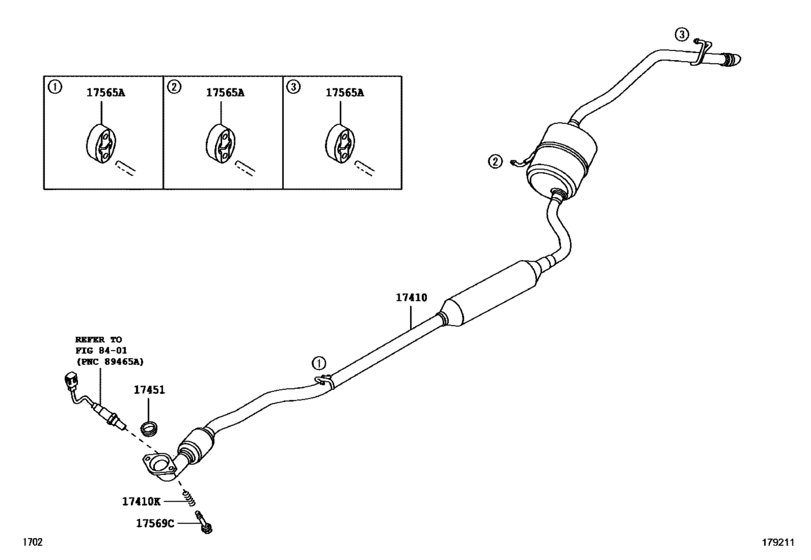

Exhaust Pipe ([02.2010 - ] (1002- )1NRFE) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- G
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-B1281 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [02.2010 - 06.2012] 1NRFE..NGC30 |
17410-B1281 |
US $679.95 |
||
|
17410K
|
17410K
17152-97201 Spring, Exhaust Pipe[02.2010 - 06.2012] 1KRFE,1NRFE..KGC3#,NGC30 |
17152-97201 |
US $18.14 |
||
|
17451
|
17451
17451-B1010 Gasket, Exhaust PipeEXHAUST PIPE [02.2010 - 06.2012] 1NRFE..NGC30 |
17451-B1010 |
from US $17.20 |
||
|
17565A
|
17565A
17567-B2010 Support, Exhaust Pipe, No.1[02.2010 - 06.2012] 1KRFE,1NRFE..KGC3#,NGC30 |
17567-B2010 |
US $14.87 |
||
|
17565A
|
17565A
17567-B2020 Support, Exhaust Pipe, No.1[03.2016 -] 1KRFE,1NRFE..KGC3#,NGC30 |
17567-B2020 |
US $14.87 |
||
|
17569C
|
17569C
17569-97201 Bolt Or Ring, Exhaust Pipe Front (For Front)[02.2010 - 06.2012] 1KRFE,1NRFE..KGC3#,NGC30 |
17569-97201 |
US $11.11 |
