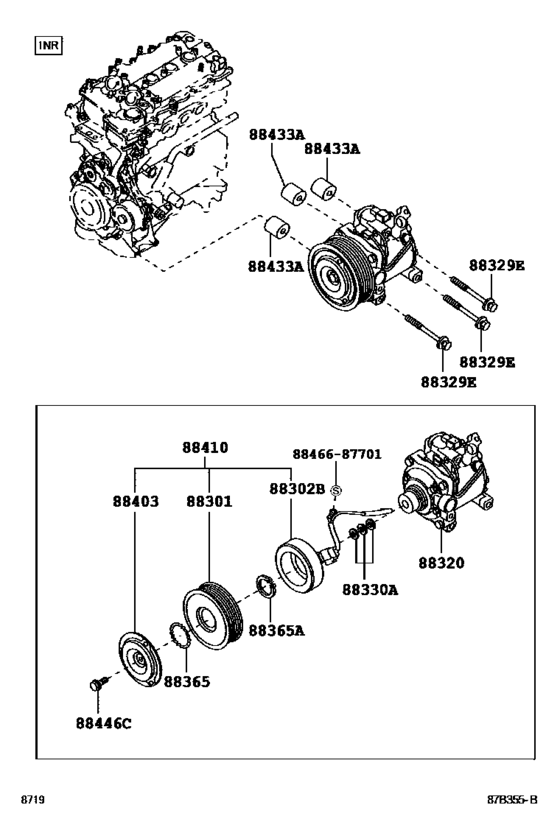

Heating & Air Conditioning - Compressor ([02.2010 - ] 1NR (1002- )NGC30) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- G
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-B1080
Rotor Sub-Assy, Magnet Clutch
[02.2010 - 06.2012] NGC30 |
88412-B1080 |
— | ||
|
88302B
|
88302B
88411-97401
Stator Sub-Assy, Magnet Clutch
[02.2010 - 06.2012] KGC3#,NGC30 |
88411-97401 |
— | ||
|
88320
|
88320
88320-B1050
Compressor Assy, Cooler
[02.2010 - 06.2012] NGC30 |
88320-B1050 |
— | ||
|
88329E
|
88329E
88329-B1030
Bolt, Compressor, No.1
[02.2010 - 06.2012] NGC30 Ｍ８，Ｌ＝１００ |
88329-B1030 |
— | ||
|
88330A
|
88330A
88318-87704
Washer (For Magnet Clutch)
[02.2010 - 06.2012] KGC3#,NGC30 厚さ＝０．１ |
88318-87704 |
— | ||
|
88330A
|
88330A
88318-87705
Washer (For Magnet Clutch)
[02.2010 - 06.2012] KGC3#,NGC30 厚さ＝０．３ |
88318-87705 |
— | ||
|
88330A
|
88330A
88318-87706
Washer (For Magnet Clutch)
[02.2010 - 06.2012] KGC3#,NGC30 厚さ＝０．５ |
88318-87706 |
— | ||
|
88365
|
88365
90099-07125 Ring, Snap[02.2010 - 06.2012] KGC3#,NGC30 |
90099-07125 |
from US $1.01 |
||
|
88365A
|
88365A
88365-87201 Ring, Snap[02.2010 - 06.2012] KGC3#,NGC30 |
88365-87201 |
from US $1.75 |
||
|
88403
|
88403
88403-97201
Hub Sub-Assy, Magnet Clutch
[02.2010 - 06.2012] KGC3#,NGC30 |
88403-97201 |
— | ||
|
88410
|
88410
88410-B1060 Clutch Assy, MagnetMAGNET [02.2010 - 06.2012] NGC30 |
88410-B1060 |
US $356.72 |
||
|
88433A
|
88433A
88433-B1010
Stay, Compressor
[02.2010 - 06.2012] NGC30 |
88433-B1010 |
— | ||
|
88446C
|
88446C
90099-04349 Bolt, Magnet Clutch Setting[02.2010 - 06.2012] KGC3#,NGC30 |
90099-04349 |
from US $0.70 |
||
|
8846687701
|
8846687701
88466-87701
New Genuine Part
|
88466-87701 |
— | ||
| replacement | |||||
|
8846687701
|
8846687701
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
