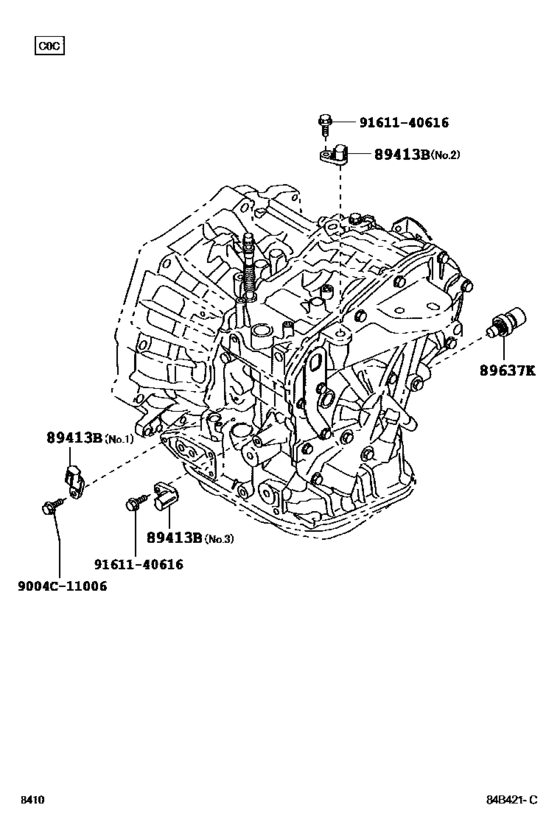

Overdrive & Electronic Controlled Transmission ([02.2010 - ] C0C (1002- )NGC30) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- G
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89413B
|
89413B
89413-B1010 Sensor, Transmission RevolutionTRANSMISSION REVOLUTION [02.2010 - 06.2012] NGC30 ＮＯ．１ |
89413-B1010 |
US $53.14 |
||
|
89413B
|
89413B
89413-B1020 Sensor, Transmission RevolutionTRANSMISSION REVOLUTION [02.2010 - 06.2012] NGC30 ＮＯ．２ |
89413-B1020 |
US $53.14 |
||
|
89413B
|
89413B
89413-B1030 Sensor, Transmission RevolutionTRANSMISSION REVOLUTION [02.2010 - 06.2012] NGC30 ＮＯ．３ |
89413-B1030 |
US $53.14 |
||
|
89637K
|
89637K
89637-B1010 Sensor, Oil PressureOIL PRESSURE [02.2010 - 06.2012] NGC30 |
89637-B1010 |
US $326.14 |
||
|
9004C11006
|
9004C11006
9004C-11006 New Genuine Part |
9004C-11006 |
US $1.60 |
||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
