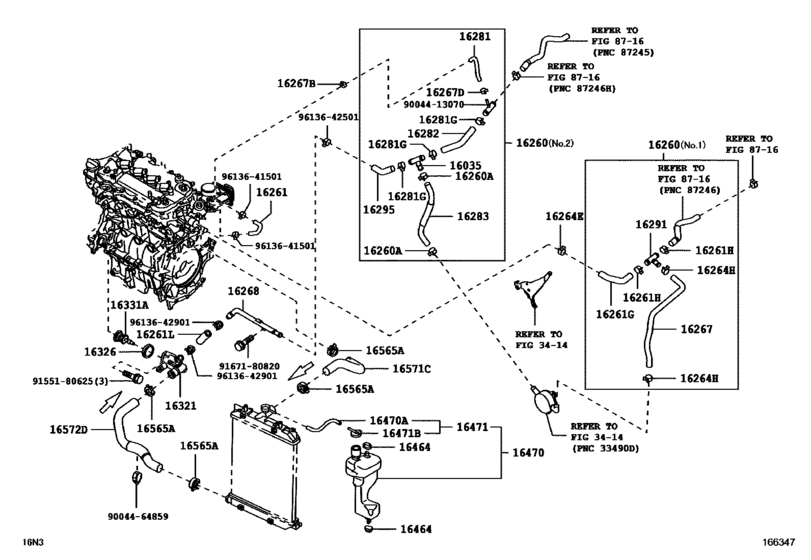

Radiator & Water Outlet ([02.2010 - ] (1002- )1NRFE) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- G
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16035
|
16035
16291-B1040 Joint, Water HoseWATER HOSE [02.2010 - 06.2012] 1NRFE..NGC30 |
16291-B1040 |
US $15.87 |
||
|
16260
|
16260
16260-B1050 Hose Assy, Water By-PassWATER BY-PASS [02.2010 - 06.2012] 1NRFE..NGC30 ＮＯ．１ |
16260-B1050 |
US $67.56 |
||
|
16260
|
16260
16260-B1060 Hose Assy, Water By-PassWATER BY-PASS [02.2010 - 06.2012] 1NRFE..NGC30 ＮＯ．２ |
16260-B1060 |
US $87.36 |
||
|
16260A
|
16260A
96134-41900 Clip Or Clamp(For Ventilation Hose)[02.2010 - 06.2012] 1NRFE..NGC30 |
96134-41900 |
from US $1.58 |
||
|
16261
|
16261
16261-47010 Hose, Water By-PassWATER BY-PASS [02.2010 - 06.2012] 1NRFE..NGC30 |
16261-47010 |
US $4.66 |
||
|
16261G
|
16261G
16261-B1220 Hose, Water By-Pass, No.1WATER BY-PASS, NO.1 [02.2010 - 06.2012] 1NRFE..NGC30 |
16261-B1220 |
US $8.74 |
||
|
16261H
|
16261H
96136-42501 Clip(For Ventilation Hose)[02.2010 - 06.2012] 1NRFE..NGC30 |
96136-42501 |
from US $3.17 |
||
|
16261L
|
16261L
16261-47020 Hose, Water By-Pass, No.1WATER BY-PASS, NO.1 [02.2010 - 06.2012] 1NRFE..NGC30 |
16261-47020 |
US $6.27 |
||
|
16264E
|
16264E
96136-42501 Clip(For Ventilation Hose)[02.2010 - 06.2012] 1NRFE..NGC30 |
96136-42501 |
from US $3.17 |
||
|
16264H
|
16264H
96134-41900 Clip Or Clamp(For Ventilation Hose)[02.2010 - 06.2012] 1NRFE..NGC30 |
96134-41900 |
from US $1.58 |
||
|
16267
|
16267
16267-B1020 Hose, Water By-Pass, No.3WATER BY-PASS, NO.3 [02.2010 - 06.2012] 1NRFE..NGC30 |
16267-B1020 |
US $19.22 |
||
|
16267B
|
16267B
90044-67301 Clamp Or Clip, Hose(For Water By-Pass Hose)[02.2010 - 06.2012] 1NRFE..NGC30 |
90044-67301 |
US $4.84 |
||
|
16267D
|
16267D
96136-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[02.2010 - 06.2012] 1NRFE..NGC30 |
96136-41501 |
from US $1.10 |
||
|
16268
|
16268
16268-B1010 Pipe, Water By-Pass, No.1WATER BY-PASS, NO.1 [02.2010 - 06.2012] 1NRFE..NGC30 |
16268-B1010 |
US $41.35 |
||
|
16281
|
16281
16281-B1020 Hose, Water By-Pass, No.4WATER BY-PASS, NO.4 [02.2010 - 06.2012] 1NRFE..NGC30 |
16281-B1020 |
US $8.74 |
||
|
16281G
|
16281G
96136-42501 Clip(For Ventilation Hose)[02.2010 - 06.2012] 1NRFE..NGC30 |
96136-42501 |
from US $3.17 |
||
|
16282
|
16282
16282-B1010 Hose, Water By-Pass, No.5WATER BY-PASS, NO.5 [02.2010 - 06.2012] 1NRFE..NGC30 |
16282-B1010 |
US $13.98 |
||
|
16283
|
16283
16283-B1010 Hose, Water By-Pass, No.6WATER BY-PASS, NO.6 [02.2010 - 06.2012] 1NRFE..NGC30 |
16283-B1010 |
US $15.29 |
||
|
16291
|
16291
16291-B1040 Joint, Water HoseWATER HOSE [02.2010 - 06.2012] 1NRFE..NGC30 |
16291-B1040 |
US $15.87 |
||
|
16295
|
16295
16295-B1010 Hose, Water By-Pass, No.7WATER BY-PASS, NO.7 [02.2010 - 06.2012] 1NRFE..NGC30 |
16295-B1010 |
US $8.74 |
||
|
16321
|
16321
16321-47010
Inlet, Water
[02.2010 - 09.2010] 1NRFE..NGC30 |
16321-47010 |
— | ||
| replacement | |||||
|
16321
|
16321
16321-47011 Inlet, WaterWATER [02.2010 - 09.2010] 1NRFE..NGC30 |
16321-47011 |
US $39.65 |
||
|
16321
|
16321
16321-47011 Inlet, WaterWATER [09.2010 - 06.2012] 1NRFE..NGC30 |
16321-47011 |
US $39.65 |
||
|
16326
|
16326
16326-47010
Gasket, Water Inlet Housing, No.2
[02.2010 - 06.2012] 1NRFE..NGC30 |
16326-47010 |
— | ||
| replacement | |||||
|
16326
|
16326
16326-47020 Gasket, Water Inlet Housing, No.2[02.2010 - 06.2012] 1NRFE..NGC30 |
16326-47020 |
from US $0.57 |
||
|
16326
|
16326
16326-47020 Gasket, Water Inlet Housing, No.2[10.2015 -] 1NRFE..NGC30 |
16326-47020 |
from US $0.57 |
||
|
16331A
|
16331A
90916-03147 Thermostat[02.2010 - 06.2012] 1NRFE..NGC30 ＊ＷＡＸ ８２−９５ |
90916-03147 |
US $26.88 |
||
|
16464
|
16464
16464-97201 Bush, Tank Lower[02.2010 - 06.2012] 1KRFE..KGC3#; 1NRFE..NGC30 |
16464-97201 |
US $4.30 |
||
|
16470
|
16470
16470-B1050 Tank Assy, Radiator ReserveRADIATOR RESERVE [02.2010 - 06.2012] 1KRFE..KGC3#; 1NRFE..NGC30 |
16470-B1050 |
US $36.84 |
||
|
16470A
|
16470A
16472-B1030 Hose Or Pipe(For Radiator Reserve Tank)[02.2010 - 06.2012] 1KRFE..KGC3#; 1NRFE..NGC30 |
16472-B1030 |
US $6.26 |
||
|
16471
|
16471
16405-B1040 Cap Sub-Assy, Reserve TankRESERVE TANK [02.2010 - 06.2012] 1KRFE..KGC3#; 1NRFE..NGC30 |
16405-B1040 |
US $14.27 |
||
|
16471B
|
16471B
16471-87402 Cap Sub-Assy, Radiator Reserve Tank[02.2010 - 06.2012] 1KRFE..KGC3#; 1NRFE..NGC30 |
16471-87402 |
US $4.54 |
||
|
16565A
|
16565A
90044-67482 Clip[02.2010 - 06.2012] 1NRFE..NGC30 |
90044-67482 |
US $5.73 |
||
|
16571C
|
16571C
16571-B1070 Hose, Radiator, No.1RADIATOR, NO.1 [02.2010 - 06.2012] 1NRFE..NGC30 |
16571-B1070 |
US $21.84 |
||
|
16572D
|
16572D
16572-B1070 Hose, Radiator, No.2RADIATOR, NO.2 [02.2010 - 06.2012] 1NRFE..NGC30 |
16572-B1070 |
US $24.32 |
||
|
9004413070
|
9004413070
90044-13070 Pipe, Water By-Pass, No.1 |
90044-13070 |
US $29.90 |
||
|
9004464859
|
9004464859
90044-64859 New Genuine Part |
90044-64859 |
US $3.06 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.63 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.78 |
||
|
9613641501
|
9613641501
96136-41501 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96136-41501 |
from US $1.10 |
||
|
9613642501
|
9613642501
96136-42501 Clip(For Ventilation Hose) |
96136-42501 |
from US $3.17 |
||
|
9613642901
|
9613642901
96136-42901 Clip Or Clamp(For Ventilation Hose) |
96136-42901 |
from US $2.89 |
||
