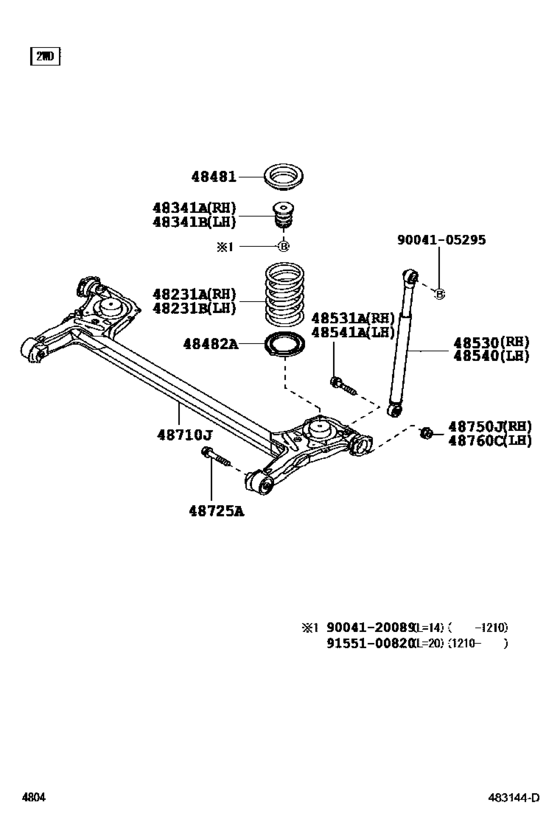

Rear Spring & Shock Absorber ([02.2010 - ] 2WD (1002- )KGC30,NGC30) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- G
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48231A
|
48231A
48231-B1240 Spring, Coil, Rear RhCOIL, REAR RH [02.2010 - 06.2012] NGC30 |
48231-B1240 |
US $85.90 |
||
|
48231B
|
48231B
48231-B1240 Spring, Coil, Rear RhCOIL, REAR RH [02.2010 - 06.2012] NGC30 |
48231-B1240 |
US $85.90 |
||
|
48341A
|
48341A
48341-B1010 Bumper, Rear Spring, No.1[02.2010 - 06.2012] KGC30,NGC30 |
48341-B1010 |
US $25.54 |
||
|
48341B
|
48341B
48341-B1010 Bumper, Rear Spring, No.1[02.2010 - 06.2012] KGC30,NGC30 |
48341-B1010 |
US $25.54 |
||
|
48481
|
48481
48481-B2010 Seat, Rear Spring, Upper[02.2010 - 06.2012] KGC3#,NGC30 |
48481-B2010 |
US $11.11 |
||
|
48482A
|
48482A
48482-B1040
Seat, Rear Spring, Lower
[02.2010 - 06.2012] KGC30,NGC30 |
48482-B1040 |
— | ||
| replacement | |||||
|
48482A
|
48482A
48482-B1041 Seat, Rear Spring, Lower[02.2010 - 06.2012] KGC30,NGC30 |
48482-B1041 |
from US $8.17 |
||
|
48530
|
48530
48531-B1200 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [02.2010 - 06.2012] KGC30,NGC30..G,HANA マーク ４８５３１−Ｂ１２００; KGC30..X マーク ４８５３１−Ｂ１２００,１６５／７０Ｒ１４ ５Ｊ−ＳＴ; KGC30..X マーク ４８５３１−Ｂ１２００,１６５／７０Ｒ１４ ５Ｊ−ＡＬ |
48531-B1200 |
US $88.82 |
||
| replacement | |||||
|
48530
|
48530
48531-B1202 Absorber Assy, Shock, Rear Rh[02.2010 - 06.2012] KGC30,NGC30..G,HANA マーク ４８５３１−Ｂ１２００; KGC30..X マーク ４８５３１−Ｂ１２００,１６５／７０Ｒ１４ ５Ｊ−ＳＴ; KGC30..X マーク ４８５３１−Ｂ１２００,１６５／７０Ｒ１４ ５Ｊ−ＡＬ |
48531-B1202 |
US $172.80 |
||
|
48530
|
48530
48531-B1201 Absorber Assy, Shock, Rear Rh[07.2014 - 10.2015] KGC30,NGC30 マーク ４８５３１−Ｂ１２０１ |
48531-B1201 |
US $93.18 |
||
| replacement | |||||
|
48530
|
48530
48531-B1202 Absorber Assy, Shock, Rear Rh[07.2014 - 10.2015] KGC30,NGC30 マーク ４８５３１−Ｂ１２０１ |
48531-B1202 |
US $172.80 |
||
|
48530
|
48530
48531-B1202 Absorber Assy, Shock, Rear Rh[11.2015 -] KGC30,NGC30 マーク ４８５３１−Ｂ１２０２ |
48531-B1202 |
US $172.80 |
||
|
48531A
|
48531A
90041-01709 Bolt, Union(For Rear Shock Absorber)[02.2010 - 06.2012] KGC3#,NGC30 |
90041-01709 |
US $7.35 |
||
|
48531A
|
48531A
90041-19A05 Bolt, Union(For Rear Shock Absorber)[08.2014 -] KGC3#,NGC30 長さ＝６５．５ |
90041-19A05 |
US $6.27 |
||
|
48540
|
48540
48531-B1200 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [02.2010 - 06.2012] KGC30,NGC30..G,HANA マーク ４８５３１−Ｂ１２００; KGC30..X マーク ４８５３１−Ｂ１２００,１６５／７０Ｒ１４ ５Ｊ−ＳＴ; KGC30..X マーク ４８５３１−Ｂ１２００,１６５／７０Ｒ１４ ５Ｊ−ＡＬ |
48531-B1200 |
US $88.82 |
||
| replacement | |||||
|
48540
|
48540
48531-B1202 Absorber Assy, Shock, Rear Rh[02.2010 - 06.2012] KGC30,NGC30..G,HANA マーク ４８５３１−Ｂ１２００; KGC30..X マーク ４８５３１−Ｂ１２００,１６５／７０Ｒ１４ ５Ｊ−ＳＴ; KGC30..X マーク ４８５３１−Ｂ１２００,１６５／７０Ｒ１４ ５Ｊ−ＡＬ |
48531-B1202 |
US $172.80 |
||
|
48540
|
48540
48531-B1201 Absorber Assy, Shock, Rear Rh[07.2014 - 10.2015] KGC30,NGC30 マーク ４８５３１−Ｂ１２０１ |
48531-B1201 |
US $93.18 |
||
| replacement | |||||
|
48540
|
48540
48531-B1202 Absorber Assy, Shock, Rear Rh[07.2014 - 10.2015] KGC30,NGC30 マーク ４８５３１−Ｂ１２０１ |
48531-B1202 |
US $172.80 |
||
|
48540
|
48540
48531-B1202 Absorber Assy, Shock, Rear Rh[11.2015 -] KGC30,NGC30 マーク ４８５３１−Ｂ１２０２ |
48531-B1202 |
US $172.80 |
||
|
48541A
|
48541A
90041-01709 Bolt, Union(For Rear Shock Absorber)[02.2010 - 06.2012] KGC3#,NGC30 |
90041-01709 |
US $7.35 |
||
|
48541A
|
48541A
90041-19A05 Bolt, Union(For Rear Shock Absorber)[08.2014 -] KGC3#,NGC30 長さ＝６５．５ |
90041-19A05 |
US $6.27 |
||
|
48710J
|
48710J
48710-B1050 Beam Assy, Rear Axle[02.2010 - 06.2012] KGC30,NGC30..G,HANA; KGC30..X 有り（ＶＳＣ）＆１６５／７０Ｒ１４ ５Ｊ−ＳＴ; KGC30..X １６５／７０Ｒ１４ ５Ｊ−ＡＬ |
48710-B1050 |
from US $653.85 |
||
|
48725A
|
48725A
48718-B2010 Bolt(For Lower Control Arm)[02.2010 - 06.2012] KGC30,NGC30 |
48718-B2010 |
US $8.96 |
||
|
48750J
|
48750J
90041-70260 Nut(For Rear Suspension Arm)[08.2014 -] KGC3#,NGC30 ＳＥＴ ＢＯＬＴ＝９００４１−１９Ａ０５ |
90041-70260 |
US $1.79 |
||
|
48750J
|
48750J
90041-70295 Nut(For Rear Suspension Arm)[02.2010 - 06.2012] KGC3#,NGC30 |
90041-70295 |
US $3.23 |
||
| replacement | |||||
|
48750J
|
48750J
90041-70343 NUT HEXAGON[02.2010 - 06.2012] KGC3#,NGC30 |
90041-70343 |
US $4.66 |
||
|
48760C
|
48760C
90041-70260 Nut(For Rear Suspension Arm)[08.2014 -] KGC3#,NGC30 ＳＥＴ ＢＯＬＴ＝９００４１−１９Ａ０５ |
90041-70260 |
US $1.79 |
||
|
48760C
|
48760C
90041-70295 Nut(For Rear Suspension Arm)[02.2010 - 06.2012] KGC3#,NGC30 |
90041-70295 |
US $3.23 |
||
| replacement | |||||
|
48760C
|
48760C
90041-70343 NUT HEXAGON[02.2010 - 06.2012] KGC3#,NGC30 |
90041-70343 |
US $4.66 |
||
|
9004105295
|
9004105295
90041-05295 New Genuine Part |
90041-05295 |
US $5.38 |
||
|
9004120089
|
9004120089
90041-20089 New Genuine Part |
90041-20089 |
US $2.51 |
||
|
9155100820
|
9155100820
91551-00820 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-00820 |
US $1.43 |
||
