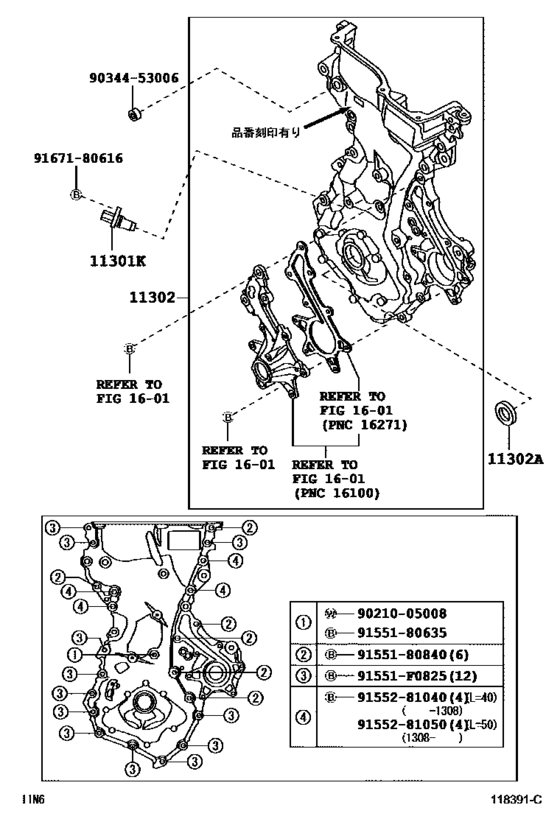

Timing Gear Cover & Rear End Plate ([02.2010 - ] (1002- )1NRFE) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- G
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301K
|
11301K
90919-05073 Sensor, Camshaft PositionCRANK POSITION [02.2010 - 06.2012] 1NRFE..NGC30 |
90919-05073 |
from US $69.38 |
||
|
11302
|
11302
11310-47011
Cover Sub-Assy, Timing Chain Or Belt
[02.2010 - 06.2012] 1NRFE..NGC30 |
11310-47011 |
— | ||
| replacements | |||||
|
11302
|
11302
11310-47013 Cover Sub-Assy, Timing Chain Or Belt[02.2010 - 06.2012] 1NRFE..NGC30 |
11310-47013 |
US $410.59 |
||
|
11302
|
11302
91552-81050 Bolt, No.2(For Alternator)[02.2010 - 06.2012] 1NRFE..NGC30 |
91552-81050 |
from US $1.08 |
||
|
11302
|
11302
91671-10825 BOLT, FLANGE[02.2010 - 06.2012] 1NRFE..NGC30 |
91671-10825 |
US $1.43 |
||
|
11302
|
11302
11310-47012 Cover Sub-Assy, Timing Chain Or Belt[08.2013 - 04.2014] 1NRFE..NGC30 品番刻印有り |
11310-47012 |
US $350.90 |
||
| replacement | |||||
|
11302
|
11302
11310-47013 Cover Sub-Assy, Timing Chain Or Belt[08.2013 - 04.2014] 1NRFE..NGC30 品番刻印有り |
11310-47013 |
US $410.59 |
||
|
11302
|
11302
11310-47013 Cover Sub-Assy, Timing Chain Or Belt[07.2014 -] 1NRFE..NGC30 |
11310-47013 |
US $410.59 |
||
|
11302A
|
11302A
90311-25021
Seal, Oil(For Timing Chain Or Belt Cover)
[05.2011 - 06.2012] 1NRFE..NGC30 |
90311-25021 |
— | ||
| replacement | |||||
|
11302A
|
11302A
90311-25032 Seal, Oil(For Timing Chain Or Belt Cover)[05.2011 - 06.2012] 1NRFE..NGC30 |
90311-25032 |
from US $5.56 |
||
|
11302A
|
11302A
90311-25031 Seal, Oil(For Timing Chain Or Belt Cover)OIL(FOR TIMING CHAIN OR BELT COVER) [02.2010 - 05.2011] 1NRFE..NGC30 |
90311-25031 |
US $5.56 |
||
|
11302A
|
11302A
90311-25032 Seal, Oil(For Timing Chain Or Belt Cover)[04.2013 - 04.2014] 1NRFE..NGC30 |
90311-25032 |
from US $5.56 |
||
|
91551F0825
|
91551F0825
91551-F0825 BOLT FLANGE |
91551-F0825 |
US $1.43 |
||
|
9021005008
|
9021005008
90210-05008 Washer, Seal(For Cylinder Head Cover) |
90210-05008 |
from US $0.74 |
||
|
9034453006
|
9034453006
90344-53006 Plug, Tight, No.1(For Timing Gear Cover) |
90344-53006 |
from US $2.17 |
||
|
9155180635
|
9155180635
91551-80635 Bolt(For Head To Camshaft Bearing Cap) |
91551-80635 |
from US $0.76 |
||
|
9155180840
|
9155180840
91551-80840 Bolt(For Head To Camshaft Bearing Cap) |
91551-80840 |
US $2.15 |
||
|
9155281040
|
9155281040
91552-81040 Bolt(For Alternator) |
91552-81040 |
from US $1.12 |
||
|
9155281050
|
9155281050
91552-81050 Bolt, No.2(For Alternator) |
91552-81050 |
from US $1.08 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
