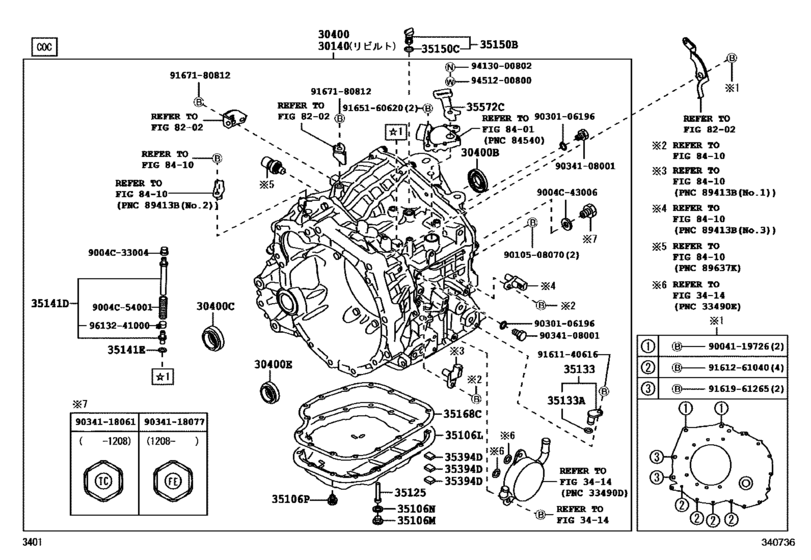

Transaxle Assy(Cvt) ([02.2010 - ] (1002- )NGC30) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- G
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30140
|
30140
30140-B1030 Transaxle Assy, Cvt, Rebuilt(W/o Torque Converter)[02.2010 - 06.2012] NGC30 識別ラベル 無し |
30140-B1030 |
US $3,261.44 |
||
|
30400
|
30400
30400-B1030 Transaxle Assy, Continuously Variable[02.2010 - 06.2012] NGC30 Ｃ０Ｃ |
30400-B1030 |
US $4,076.80 |
||
|
30400B
|
30400B
90311-34022 Seal, Type T Oil, No.1(For Cvt)[02.2010 - 06.2012] NGC30 |
90311-34022 |
from US $4.30 |
||
|
30400B
|
30400B
90311-34044 Seal, Type T Oil, No.1(For Cvt)[09.2014 - 04.2016] NGC30 |
90311-34044 |
from US $7.17 |
||
|
30400C
|
30400C
90311-34023 Seal, Type T Oil, No.2(For Cvt)[02.2010 - 06.2012] NGC30 |
90311-34023 |
from US $4.84 |
||
|
30400C
|
30400C
90311-34048 Seal, Type T Oil, No.2(For Cvt)[09.2014 - 04.2016] NGC30 |
90311-34048 |
US $6.27 |
||
|
30400E
|
30400E
90311-42039 Seal, Type T Oil(For Cvt Oil Pump)TYPE T OIL(FOR CVT OIL PUMP) [02.2010 - 06.2012] NGC30 |
90311-42039 |
from US $7.17 |
||
|
35106L
|
35106L
35106-B1030 Pan Sub-Assy, Transaxle Oil(Cvt)TRANSAXLE OIL(CVT) [02.2010 - 06.2012] NGC30 |
35106-B1030 |
US $109.88 |
||
|
35106M
|
35106M
90341-12034 Plug Sub-Assy, Drain (Atm)[02.2010 - 06.2012] NGC30 |
90341-12034 |
from US $3.04 |
||
|
35106N
|
35106N
90430-12008 Gasket (For Shift Inter Lock Plate)[02.2010 - 06.2012] NGC30 |
90430-12008 |
from US $1.12 |
||
|
35106P
|
35106P
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[02.2010 - 06.2012] NGC30 |
90119-06173 |
from US $0.74 |
||
|
35125
|
35125
35125-B1030 Tube, Transmission Oil Filler, No.1TRANSMISSION OIL FILLER, NO.1 [02.2010 - 06.2012] NGC30 |
35125-B1030 |
US $4.54 |
||
|
35133
|
35133
35133-52010 Plug, Transmission Oil Filler[02.2010 - 06.2012] NGC30 |
35133-52010 |
US $7.35 |
||
|
35133A
|
35133A
90301-11001 Ring, O (For Transmission Oil Filler Plug)[02.2010 - 06.2012] NGC30 |
90301-11001 |
US $2.87 |
||
|
35141D
|
35141D
35012-B1030 Hose Sub-Assy, Transmission Breather[02.2010 - 06.2012] NGC30 |
35012-B1030 |
US $12.67 |
||
|
35141E
|
35141E
90301-08015 Ring, O (For Breather Plug)[02.2010 - 06.2012] NGC30 |
90301-08015 |
from US $2.07 |
||
|
35150B
|
35150B
35150-44010 Plug(For Transmission Case)[02.2010 - 06.2012] NGC30 |
35150-44010 |
from US $6.09 |
||
|
35150C
|
35150C
90301-09173 Ring, O(For Transmission Oil Filler Tube)[02.2010 - 06.2012] NGC30 |
90301-09173 |
from US $1.96 |
||
|
35168C
|
35168C
35168-B1040 Gasket, Transaxle Oil Pan(Cvt)TRANSAXLE OIL PAN(CVT) [02.2010 - 06.2012] NGC30 |
35168-B1040 |
US $36.46 |
||
|
35394D
|
35394D
35394-B1010 Magnet, Oil Cleaner(Cvt)OIL CLEANER(CVT) [02.2010 - 06.2012] NGC30 |
35394-B1010 |
US $4.22 |
||
|
35572C
|
35572C
35572-B1010 Lever, Transmission Control ShaftTRANSMISSION CONTROL SHAFT [02.2010 - 06.2012] NGC30 |
35572-B1010 |
US $9.46 |
||
|
9004C33004
|
9004C33004
9004C-33004 New Genuine Part |
9004C-33004 |
US $4.66 |
||
|
9004C43006
|
9004C43006
9004C-43006 New Genuine Part |
9004C-43006 |
US $5.02 |
||
|
9004C54001
|
9004C54001
9004C-54001 New Genuine Part |
9004C-54001 |
US $1.60 |
||
|
9004119726
|
9004119726
90041-19726 New Genuine Part |
90041-19726 |
US $4.30 |
||
|
9010508070
|
9010508070
90105-08070 Bolt (For Pawl Stopper Plate) |
90105-08070 |
US $1.31 |
||
|
9030106196
|
9030106196
90301-06196 O Ring, Transaxle Case, No.1 |
90301-06196 |
from US $2.36 |
||
|
9034108001
|
9034108001
90341-08001 Plug, Transaxle Case, No.1 |
90341-08001 |
from US $1.48 |
||
|
9034118061
|
9034118061
90341-18061 Plug, Hole (CVT TC) |
90341-18061 |
US $5.56 |
||
|
9034118077
|
9034118077
90341-18077 Plug , Filler(CVT FE) |
90341-18077 |
from US $3.38 |
||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9161261040
|
9161261040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161961265
|
9161961265
91619-61265 Bolt(For Transaxle & Engine Setting) |
91619-61265 |
US $4.12 |
||
|
9165160620
|
9165160620
91651-60620 BOLTWWASHER |
91651-60620 |
US $1.43 |
||
|
9167180812
|
9167180812
91671-80812 BOLT FLANGE |
91671-80812 |
US $1.43 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9613241000
|
9613241000
96132-41000 Clip, No.1(For Idle-Up Hose) |
96132-41000 |
from US $1.43 |
||
