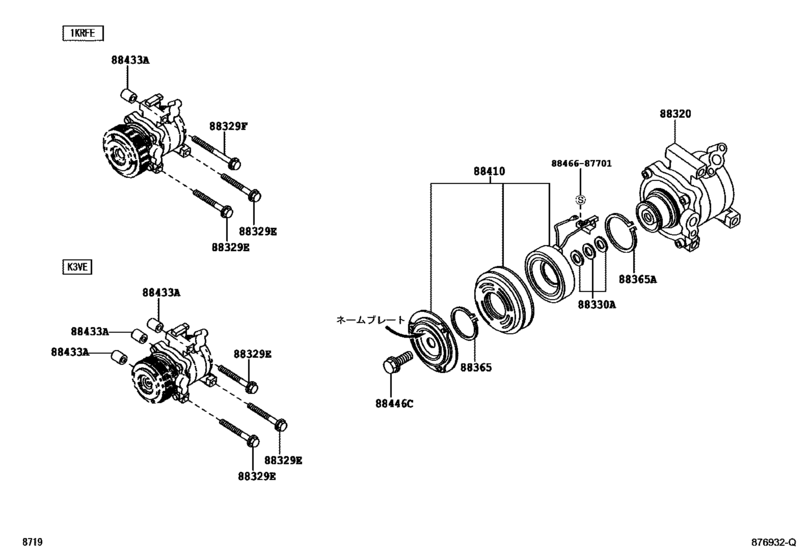

Heating & Air Conditioning - Compressor ([05.2004 - 12.2005] (0405-0512)) Diagram Toyota PASSO
- Year
- 2004 - 2010
- Sales region
- Japan
- Frame
- QNC10
- grade
- RACY
- ENGINE
- K3VE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2004
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-97401
Compressor Assy, Cooler
[05.2004 - 12.2005] KGC1# ネームプレート：８８３１０−Ｂ１０１０; QNC10 ネームプレート：８８３１０−Ｂ１０２０ |
88320-97401 |
— | ||
| replacements | |||||
|
88320
|
88320
88310-B1060
Compressor Assy, W/pulley
[05.2004 - 12.2005] KGC1# ネームプレート：８８３１０−Ｂ１０１０; QNC10 ネームプレート：８８３１０−Ｂ１０２０ |
88310-B1060 |
— | ||
|
88320
|
88320
88310-B1070
Compressor Assy, W/pulley
[05.2004 - 12.2005] KGC1# ネームプレート：８８３１０−Ｂ１０１０; QNC10 ネームプレート：８８３１０−Ｂ１０２０ |
88310-B1070 |
— | ||
|
88320
|
88320
88320-B1020
Compressor Assy, Cooler
[12.2005 - 12.2006] KGC1# ネームプレート：８８３１０−Ｂ１０６０; QNC10 ネームプレート：８８３１０−Ｂ１０７０ |
88320-B1020 |
— | ||
|
88329E
|
88329E
88329-B1030
Bolt, Compressor, No.1
[05.2004 - 12.2006] QNC10 |
88329-B1030 |
— | ||
|
88330A
|
88330A
88318-87704
Washer (For Magnet Clutch)
[12.2005 - 12.2006] KGC1#,QNC10 厚さ＝０．１ |
88318-87704 |
— | ||
|
88330A
|
88330A
88318-87705
Washer (For Magnet Clutch)
[12.2005 - 12.2006] KGC1#,QNC10 厚さ＝０．３ |
88318-87705 |
— | ||
|
88330A
|
88330A
88318-87706
Washer (For Magnet Clutch)
[12.2005 - 12.2006] KGC1#,QNC10 厚さ＝０．５ |
88318-87706 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[05.2004 - 12.2005] KGC1#,QNC10 |
88335-14020 |
from US $1.24 |
||
|
88365
|
88365
90099-07125 Ring, Snap[05.2004 - 12.2006] KGC1#,QNC10 |
90099-07125 |
from US $1.01 |
||
|
88365A
|
88365A
88365-87201 Ring, Snap[05.2004 - 12.2006] KGC1#,QNC10 |
88365-87201 |
from US $1.75 |
||
|
88410
|
88410
88410-97404 Clutch Assy, Magnet[05.2004 - 12.2005] QNC10 |
88410-97404 |
US $477.57 |
||
|
88410
|
88410
88410-B1030 Clutch Assy, Magnet[12.2005 - 12.2006] QNC10 |
88410-B1030 |
US $358.18 |
||
|
88433A
|
88433A
88433-B1010
Stay, Compressor
[05.2004 - 12.2006] QNC10 |
88433-B1010 |
— | ||
|
88446C
|
88446C
90099-04349 Bolt, Magnet Clutch Setting[05.2004 - 12.2006] KGC1#,QNC10 |
90099-04349 |
from US $0.70 |
||
|
8846687701
|
8846687701
88466-87701
New Genuine Part
|
88466-87701 |
— | ||
| replacement | |||||
|
8846687701
|
8846687701
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
