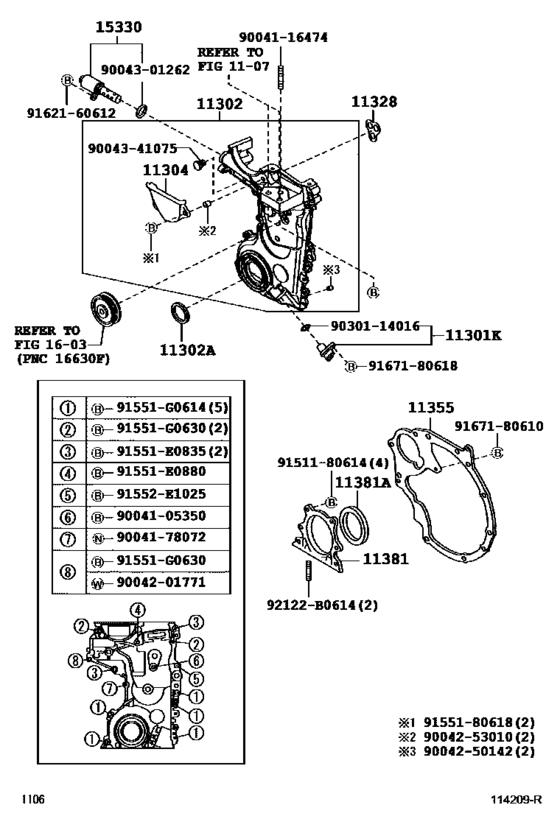

Timing Gear Cover & Rear End Plate ([12.2005 - 02.2010] (0512-1002)K3VE) Diagram Toyota PASSO
- Year
- 2004 - 2010
- Sales region
- Japan
- Frame
- QNC10
- grade
- RACY
- ENGINE
- K3VE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2004
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301K
|
11301K
19311-97401 Sensor, Crank Position[05.2004 - 12.2006] K3VE..QNC10 |
19311-97401 |
US $75.26 |
||
|
11302
|
11302
11310-B1010 Cover Sub-Assy, Timing Chain Or Belt[05.2004 - 12.2005] K3VE..QNC10 |
11310-B1010 |
US $113.57 |
||
| replacements | |||||
|
11302
|
11302
11310-B1013 Cover Sub-Assy, Timing Chain Or Belt[05.2004 - 12.2005] K3VE..QNC10 |
11310-B1013 |
US $206.75 |
||
|
11302
|
11302
90042-01771 New Genuine Part[05.2004 - 12.2005] K3VE..QNC10 |
90042-01771 |
US $2.04 |
||
|
11302
|
11302
11310-B1011 Cover Sub-Assy, Timing Chain Or Belt[12.2005 - 12.2006] K3VE..QNC10 |
11310-B1011 |
US $195.10 |
||
| replacement | |||||
|
11302
|
11302
11310-B1013 Cover Sub-Assy, Timing Chain Or Belt[12.2005 - 12.2006] K3VE..QNC10 |
11310-B1013 |
US $206.75 |
||
|
11302A
|
11302A
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[05.2004 - 12.2006] K3VE..QNC10 |
90311-35040 |
from US $6.27 |
||
|
11304
|
11304
11322-97401 Cover, Timing Chain Or Belt, No.2[05.2004 - 12.2006] K3VE..QNC10 |
11322-97401 |
US $21.69 |
||
| replacement | |||||
|
11304
|
11304
11322-B1010 Cover, Timing Chain Or Belt, No.2[05.2004 - 12.2006] K3VE..QNC10 |
11322-B1010 |
US $25.92 |
||
|
11328
|
11328
11328-97401
Gasket, Timing Belt Cover, No.1
[05.2004 - 11.2005] K3VE..QNC10 |
11328-97401 |
— | ||
| replacement | |||||
|
11328
|
11328
11328-B1010 Gasket, Timing Gear Or Chain Cover[05.2004 - 11.2005] K3VE..QNC10 |
11328-B1010 |
US $6.99 |
||
|
11328
|
11328
11328-B1010 Gasket, Timing Gear Or Chain Cover[12.2005 - 12.2006] K3VE..QNC10 |
11328-B1010 |
US $6.99 |
||
|
11355
|
11355
11355-97401 Plate, Rear End[05.2004 - 12.2006] K3VE..QNC10 |
11355-97401 |
US $35.47 |
||
|
11381
|
11381
11381-97401 Retainer, Engine Rear Oil Seal[05.2004 - 01.2005] K3VE..QNC10 |
11381-97401 |
US $27.08 |
||
| replacement | |||||
|
11381
|
11381
11381-97402 Retainer, Engine Rear Oil Seal[05.2004 - 01.2005] K3VE..QNC10 |
11381-97402 |
US $39.82 |
||
|
11381
|
11381
11381-97402 Retainer, Engine Rear Oil Seal[01.2005 - 12.2006] K3VE..QNC10 |
11381-97402 |
US $39.82 |
||
|
11381A
|
11381A
90043-11364
Seal, Engine Rear Oil
[09.2004 - 05.2006] K3VE..QNC10 |
90043-11364 |
— | ||
| replacement | |||||
|
11381A
|
11381A
90043-11434 Seal, Engine Rear Oil[09.2004 - 05.2006] K3VE..QNC10 |
90043-11434 |
from US $13.08 |
||
|
11381A
|
11381A
90043-11402 Seal, Engine Rear Oil[06.2006 - 12.2006] K3VE..QNC10 内径＝７３．５ 外径＝８９ 幅＝８．５ |
90043-11402 |
US $22.18 |
||
|
15330
|
15330
15330-97403 Valve Assy, Cam Timing Oil Control[05.2004 - 12.2006] K3VE..QNC10 |
15330-97403 |
from US $97.85 |
||
|
15330
|
15330
15330-B1030 Valve Assy, Cam Timing Oil Control[08.2008 - 02.2010] K3VE..QNC10 |
15330-B1030 |
US $182.40 |
||
|
91551E0835
|
91551E0835
91551-E0835 New Genuine Part |
91551-E0835 |
US $1.65 |
||
|
91551E0880
|
91551E0880
91551-E0880 New Genuine Part |
91551-E0880 |
US $2.33 |
||
|
91551G0614
|
91551G0614
91551-G0614 New Genuine Part |
91551-G0614 |
US $1.97 |
||
|
91551G0630
|
91551G0630
91551-G0630 New Genuine Part |
91551-G0630 |
US $1.38 |
||
|
91552E1025
|
91552E1025
91552-E1025 New Genuine Part |
91552-E1025 |
US $3.05 |
||
|
92122B0614
|
92122B0614
92122-B0614 Bolt, Stud(For Oil Strainer) |
92122-B0614 |
US $1.51 |
||
|
9004105350
|
9004105350
90041-05350 New Genuine Part |
90041-05350 |
US $2.04 |
||
|
9004116474
|
9004116474
90041-16474 New Genuine Part |
90041-16474 |
US $3.49 |
||
|
9004178072
|
9004178072
90041-78072 New Genuine Part |
90041-78072 |
US $2.33 |
||
|
9004201771
|
9004201771
90042-01771 New Genuine Part |
90042-01771 |
US $2.04 |
||
|
9004250142
|
9004250142
90042-50142 Pin, Straight(For Timing Chain Cover) |
90042-50142 |
US $3.40 |
||
|
9004253010
|
9004253010
90042-53010 Pin, Ring(For Camshaft Bearing Cap Setting) |
90042-53010 |
US $3.40 |
||
|
9004301262
|
9004301262
90043-01262
Ring, O
|
90043-01262 |
— | ||
|
9004341075
|
9004341075
90043-41075 Plug, Straight(For Timing Gear Cover) |
90043-41075 |
US $1.75 |
||
|
9030114016
|
9030114016
90301-14016
O Ring, Cam Position Sensor
|
90301-14016 |
— | ||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.25 |
||
|
9155180618
|
9155180618
91551-80618 Bolt, W/washer(For Repair Actuator Set) |
91551-80618 |
US $1.08 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9167180610
|
9167180610
91671-80610 New Genuine Part |
91671-80610 |
US $1.08 |
||
|
9167180618
|
9167180618
91671-80618 BOLT FLANGE WWSHER |
91671-80618 |
US $1.08 |
||
