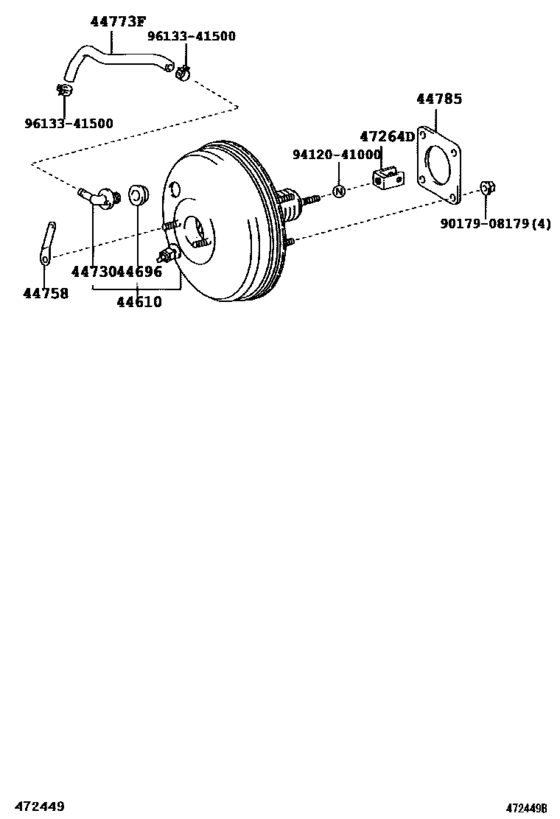

Brake Booster & Vacuum Tube ([05.2001 - ] (0105- )CLM20..LHD) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLM20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- PICNIC/AVENIS/VERSO
- From
- 05.2001
- To
- 07.2005
- Seating Capacity
- 06S
- Vehicle Model
- PICNIC/AVENIS/VERSO
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-44170 Booster Assy, BrakeBRAKE [05.2001 - 10.2003] CLM20..LHD |
44610-44170 |
US $628.99 |
||
|
44610
|
44610
44610-44171 Booster Assy, BrakeBRAKE [10.2003 - 07.2005] CLM20..LHD W(VSC) |
44610-44171 |
US $663.94 |
||
|
44610
|
44610
44610-44250 Booster Assy, BrakeBRAKE [10.2003 - 07.2005] CLM20..LHD |
44610-44250 |
US $710.53 |
||
| replacement | |||||
|
44610
|
44610
44610-44251
Booster Assy, Brake
[10.2003 - 07.2005] CLM20..LHD |
44610-44251 |
— | ||
|
44696
|
44696
90480-24439 Grommet, Check Valve[05.2001 - 10.2003] ACM20,CLM20 |
90480-24439 |
from US $2.57 |
||
|
44730
|
44730
44730-12070 Valve Assy, Vacuum Check(For Brake)[05.2001 - 10.2003] ACM20,CLM20..LHD |
44730-12070 |
from US $26.42 |
||
|
44758
|
44758
44758-44040 Bracket, Vacuum Check ValveVACUUM CHECK VALVE [05.2001 - 10.2003] ACM20,CLM20..LHD |
44758-44040 |
US $3.79 |
||
|
44773F
|
44773F
44773-44060 Hose, Union To Check ValveUNION TO CHECK VALVE [05.2001 - 10.2003] CLM20..LHD |
44773-44060 |
US $26.79 |
||
|
44785
|
44785
44785-32010 Gasket, Brake Booster[05.2001 - 10.2003] ACM20,CLM20 |
44785-32010 |
US $3.94 |
||
|
47264D
|
47264D
47264-60020 Clevis, Master Cylinder Push Rod[05.2001 - 10.2003] ACM20,CLM20 |
47264-60020 |
US $3.58 |
||
|
9017908179
|
9017908179
90179-08179 New Genuine Part |
90179-08179 |
US $3.58 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9613341500
|
9613341500
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.32 |
||
