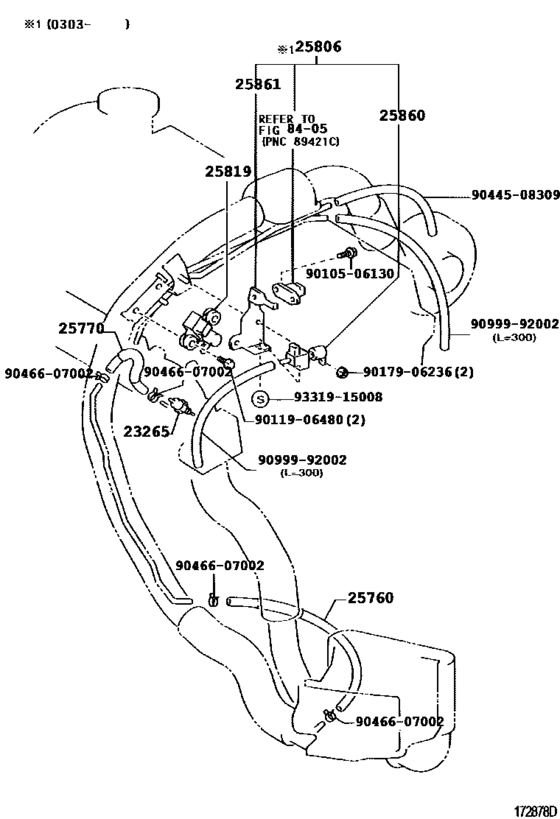

Vacuum Piping ([05.2001 - ] (0105- )1CDFTV) Diagram Toyota PICNIC/ AVENSIS/ VERSO
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLM20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- PICNIC/AVENIS/VERSO
- From
- 05.2001
- To
- 07.2005
- Seating Capacity
- 06S
- Vehicle Model
- PICNIC/AVENIS/VERSO
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23265
|
23265
90917-11037 Filter, Gas, No.1[05.2001 - 10.2003] 1CDFTV..CLM20 |
90917-11037 |
from US $20.03 |
||
|
25760
|
25760
25760-27080 Hose Assy, Vacuum TransmittingVACUUM TRANSMITTING [05.2001 - 10.2003] 1CDFTV..CLM20 |
25760-27080 |
US $37.56 |
||
|
25770
|
25770
25770-27040 Hose Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [05.2001 - 10.2003] 1CDFTV..CLM20 |
25770-27040 |
US $28.25 |
||
|
25806
|
25806
25806-27030 Valve Set, Pressure ControlPRESSURE CONTROL [03.2003 - 10.2003] 1CDFTV..CLM20 |
25806-27030 |
US $519.79 |
||
|
25819
|
25819
25819-27030 Valve Assy, Vacuum RegulatingVACUUM REGULATING [05.2001 - 10.2003] 1CDFTV..CLM20 |
25819-27030 |
US $195.20 |
||
|
25860
|
25860
25860-27010 Valve Assy, Vacuum Switching, No.1VACUUM SWITCHING, NO.1 [05.2001 - 10.2003] 1CDFTV..CLM20 |
25860-27010 |
US $69.96 |
||
|
25861
|
25861
25861-27040 Bracket, Vacuum Switching ValveVACUUM SWITCHING VALVE [05.2001 - 10.2003] 1CDFTV..CLM20 |
25861-27040 |
US $47.47 |
||
|
9010506130
|
9010506130
90105-06130 BOLT WASHER BASED |
90105-06130 |
US $0.87 |
||
|
9011906480
|
9011906480
90119-06480 BOLT |
90119-06480 |
from US $0.78 |
||
|
9017906236
|
9017906236
90179-06236 NUT |
90179-06236 |
US $2.15 |
||
|
9044508309
|
9044508309
90445-08309 New Genuine Part |
90445-08309 |
US $6.12 |
||
|
9046607002
|
9046607002
90466-07002 Clamp Or Clip(For Air Hose) |
90466-07002 |
US $1.25 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
