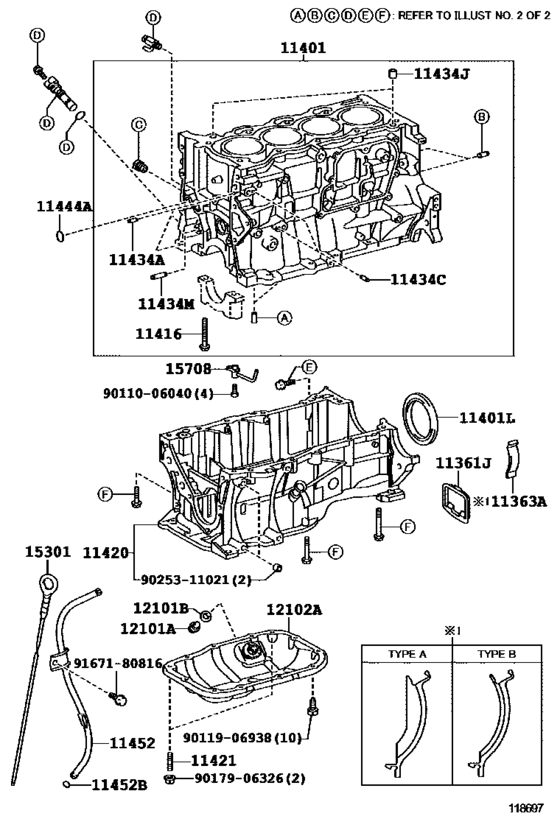

Cylinder Block ([05.2007 - ] (0705- )2ZR#,3ZRFAE) Diagram Toyota PREMIO/ ALLION
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- ZRT265
- ENGINE
- 2ZRFAE
- Model
- PREMIO
- From
- 04.2010
- Vehicle Model
- Premio
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11361J
|
11361J
11361-21011 Cover, Flywheel Housing Under[04.2010 - 06.2016] 1NZFE..NZT260..CBU; 2ZRFAE,3ZRFAE..ZRT26#..CBU |
11361-21011 |
US $8.78 |
||
|
11363A
|
11363A
11363-21010 Cover, Flywheel Housing Side[04.2010 - 12.2012] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
11363-21010 |
US $6.27 |
||
|
11363A
|
11363A
11363-33010 Cover, Flywheel Housing SideFLYWHEEL HOUSING SIDE [12.2012 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU ＴＹＰＥ Ｂ：イラスト参照 |
11363-33010 |
US $3.58 |
||
|
11401
|
11401
11410-09455 Block Sub-Assy, CylinderCYLINDER [01.2011 - 06.2016] 2ZRFAE..ZRT260,265 （Ｌ） |
11410-09455 |
US $1,907.36 |
||
|
11401
|
11401
11410-09456
Block Sub-Assy, Cylinder
[12.2016 -] 2ZRFAE..ZRT260,265 （Ｌ） |
11410-09456 |
— | ||
|
11401
|
11401
11410-39057
Block Sub-Assy, Cylinder
[09.2010 - 01.2011] 2ZRFAE..ZRT260,265 |
11410-39057 |
— | ||
| replacement | |||||
|
11401
|
11401
11410-39245 Block Sub-Assy, Cylinder[09.2010 - 01.2011] 2ZRFAE..ZRT260,265 |
11410-39245 |
US $1,732.64 |
||
|
11401
|
11401
11410-39058 Block Sub-Assy, CylinderCYLINDER [04.2010 - 08.2010] 2ZRFAE..ZRT260,265 |
11410-39058 |
US $2,300.48 |
||
| replacement | |||||
|
11401
|
11401
11410-39245 Block Sub-Assy, Cylinder[04.2010 - 08.2010] 2ZRFAE..ZRT260,265 |
11410-39245 |
US $1,732.64 |
||
|
11401
|
11401
11410-39245 Block Sub-Assy, Cylinder[12.2016 -] 2ZRFAE..ZRT260,265 （Ｊ） |
11410-39245 |
US $1,732.64 |
||
|
11401L
|
11401L
90311-76002 Seal, Engine Rear Oil[04.2010 - 12.2012] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
90311-76002 |
from US $25.37 |
||
|
11401L
|
11401L
90311-78002 Seal, Engine Rear Oil[12.2012 - 08.2014] 2ZRFAE..ZRT260,265 |
90311-78002 |
from US $33.94 |
||
|
11401L
|
11401L
90311-78008 Seal, Engine Rear Oil[08.2014 - 06.2016] 2ZRFAE..ZRT260,265 |
90311-78008 |
from US $25.37 |
||
|
11416
|
11416
90910-02163 Bolt(For Crankshaft Bearing Cap Set)[04.2010 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
90910-02163 |
US $3.40 |
||
|
11420
|
11420
11420-37010 Crankcase Assy, Stiffening[04.2010 - 06.2016] 2ZRFAE..ZRT260,265 |
11420-37010 |
from US $247.16 |
||
|
11421
|
11421
90126-06015 Bolt, Stud(For Oil Pan)[04.2010 - 06.2010] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
90126-06015 |
from US $1.23 |
||
|
11421
|
11421
90126-06028 Bolt, Stud(For Oil Pan)[06.2010 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
90126-06028 |
from US $0.64 |
||
|
11434A
|
11434A
90250-04097 Pin, Straight(For Camshaft Housing Rh)[04.2010 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU 長さ＝１２，外径＝４．０ |
90250-04097 |
US $0.90 |
||
|
11434C
|
11434C
90250-04097 Pin, Straight(For Camshaft Housing Rh)[04.2010 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU 長さ＝１２，外径＝４．０ |
90250-04097 |
US $0.90 |
||
|
11434J
|
11434J
90253-13001 Pin, Ring (For Cylinder Head Set)[04.2010 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
90253-13001 |
from US $0.74 |
||
|
11434M
|
11434M
90250-10030 Pin, Straight(For Clutch Housing Set)[04.2010 - 06.2016] 1NZFE..NZT260..CBU; 2ZRFAE,3ZRFAE..ZRT26#..CBU |
90250-10030 |
from US $1.31 |
||
|
11444A
|
11444A
96723-24020 Ring, O[04.2010 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
96723-24020 |
from US $2.09 |
||
|
11452
|
11452
11452-37010
Guide, Oil Level Gage
[04.2010 - 01.2011] 2ZRFAE..ZRT260,265 |
11452-37010 |
— | ||
| replacement | |||||
|
11452
|
11452
11452-37011 Guide, Oil Level Gage[04.2010 - 01.2011] 2ZRFAE..ZRT260,265 |
11452-37011 |
from US $12.60 |
||
|
11452
|
11452
11452-37011 Guide, Oil Level Gage[01.2011 - 06.2016] 2ZRFAE..ZRT260,265 |
11452-37011 |
from US $12.60 |
||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[04.2010 - 06.2016] 1NZFE..NZT260..CBU; 2ZRFAE,3ZRFAE..ZRT26#..CBU |
96721-19010 |
from US $1.60 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[04.2010 - 06.2016] 1NZFE..NZT260..CBU; 2ZRFAE,3ZRFAE..ZRT26#..CBU |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[04.2010 - 06.2016] 1NZFE..NZT260..CBU; 2ZRFAE,3ZRFAE..ZRT26#..CBU |
90341-T0004 |
US $3.59 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[04.2010 - 06.2016] 1NZFE..NZT260..CBU; 2ZRFAE,3ZRFAE..ZRT26#..CBU |
90430-12031 |
from US $0.84 |
||
|
12102A
|
12102A
12102-37010 Pan Sub-Assy, Oil, No.2[04.2010 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
12102-37010 |
from US $63.50 |
||
|
15301
|
15301
15301-37010 Gage Sub-Assy, Oil Level[04.2010 - 08.2012] 2ZRFAE..ZRT260,265 |
15301-37010 |
from US $10.37 |
||
|
15301
|
15301
15301-37030 Gage Sub-Assy, Oil Level[08.2012 - 08.2013] 2ZRFAE..ZRT260,265 |
15301-37030 |
US $11.07 |
||
| replacement | |||||
|
15301
|
15301
15301-37010 Gage Sub-Assy, Oil Level[08.2012 - 08.2013] 2ZRFAE..ZRT260,265 |
15301-37010 |
from US $10.37 |
||
|
15708
|
15708
15708-37011 Nozzle Sub-Assy, Oil, No.1[04.2010 - 11.2012] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
15708-37011 |
US $16.42 |
||
| replacement | |||||
|
15708
|
15708
15708-37012 Nozzle Sub-Assy, Oil, No.1[04.2010 - 11.2012] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
15708-37012 |
from US $8.27 |
||
|
15708
|
15708
15708-37012 Nozzle Sub-Assy, Oil, No.1[11.2012 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
15708-37012 |
from US $8.27 |
||
|
9011006040
|
9011006040
90110-06040 BOLT HEXAGON SOCKET |
90110-06040 |
US $1.08 |
||
|
9011906938
|
9011906938
90119-06938 BOLT WWASHER |
90119-06938 |
from US $0.64 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
from US $0.66 |
||
|
9025311021
|
9025311021
90253-11021 Pin, Ring |
90253-11021 |
from US $1.44 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.78 |
||
