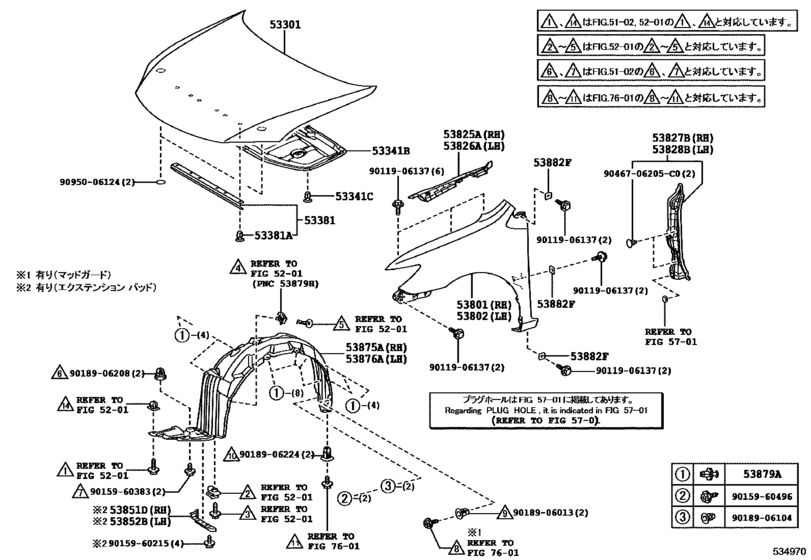

Hood & Front Fender ([06.2016 - ] (1606- )) Diagram Toyota PREMIO/ ALLION
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- ZRT265
- ENGINE
- 2ZRFAE
- Model
- PREMIO
- From
- 04.2010
- Vehicle Model
- Premio
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-20630 Hood Sub-Assy[04.2010 - 06.2016] NZT260,ZRT26#..PRM..CBU |
53301-20630 |
from US $440.08 |
||
|
53301
|
53301
53301-20650 Hood Sub-Assy[06.2016 -] NZT260,ZRT26#..CBU |
53301-20650 |
from US $453.34 |
||
|
53341B
|
53341B
53341-20351
Insulator, Hood
[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53341-20351 |
— | ||
| replacement | |||||
|
53341B
|
53341B
53341-20360 Insulator, Hood[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53341-20360 |
US $161.60 |
||
|
53341B
|
53341B
53341-20360 Insulator, Hood[06.2016 -] NZT260,ZRT26#..CBU |
53341-20360 |
US $161.60 |
||
|
53341C
|
53341C
90467-09050 Clip(For Hood Insulator)[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
90467-09050 |
from US $0.86 |
||
|
53381
|
53381
53381-20170 Seal, Hood To Radiator Support[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53381-20170 |
US $23.02 |
||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
90467-08011 |
from US $0.38 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
90467-08011-TH |
US $0.31 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [04.2010 - 06.2016] NZT260,ZRT26#..CBU |
90467-08011-83 |
US $3.60 |
||
|
53801
|
53801
53811-20A00 Fender Sub-Assy, Front Rh[04.2010 - 06.2016] NZT260,ZRT26#..PRM..CBU |
53811-20A00 |
US $663 |
||
|
53801
|
53801
53811-2B870 Fender Sub-Assy, Front Rh[06.2016 -] NZT260,ZRT26#..CBU |
53811-2B870 |
US $552.24 |
||
|
53802
|
53802
53812-20A00 Fender Sub-Assy, Front Lh[04.2010 - 06.2016] NZT260,ZRT26#..PRM..CBU |
53812-20A00 |
US $663 |
||
|
53802
|
53802
53812-2B860 Fender Sub-Assy, Front Lh[06.2016 -] NZT260,ZRT26#..CBU |
53812-2B860 |
US $552.24 |
||
|
53825A
|
53825A
53825-20040 Protector, Front Fender, Upper Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53825-20040 |
US $29.74 |
||
|
53825A
|
53825A
53825-20060 Protector, Front Fender, Upper Rh[06.2016 -] NZT260,ZRT26#..CBU |
53825-20060 |
US $24.53 |
||
|
53826A
|
53826A
53826-20040 Protector, Front Fender, Upper Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53826-20040 |
US $37.30 |
||
|
53826A
|
53826A
53826-20060 Protector, Front Fender, Upper Lh[06.2016 -] NZT260,ZRT26#..CBU |
53826-20060 |
US $29.23 |
||
|
53827B
|
53827B
53827-20110 Protector, Front Fender Side Panel[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53827-20110 |
US $40.66 |
||
|
53828B
|
53828B
53828-20110 Protector, Front Fender Side Panel, Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53828-20110 |
US $41.33 |
||
|
53851D
|
53851D
53851-21010 Pad, Front Wheel Opening Extension, Rh[04.2010 - 06.2016] ZRT26#..CBU |
53851-21010 |
US $26.04 |
||
|
53852B
|
53852B
53852-21010 Pad, Front Wheel Opening Extension, Lh[04.2010 - 06.2016] ZRT26#..CBU |
53852-21010 |
from US $25.72 |
||
|
53875A
|
53875A
53875-20370 Liner, Front Fender, Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53875-20370 |
US $90.20 |
||
|
53876A
|
53876A
53876-20420 Liner, Front Fender, Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53876-20420 |
US $90.20 |
||
|
53879A
|
53879A
90467-07214 Clip, Front Fender Liner[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
90467-07214 |
from US $0.84 |
||
|
53882F
|
53882F
53882-16030 Pad, Rear Bumper, Center[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53882-16030 |
from US $0.80 |
||
|
9011906137
|
9011906137
90119-06137 BOLT |
90119-06137 |
from US $0.68 |
||
|
9015960215
|
9015960215
90159-60215 SCREW |
90159-60215 |
from US $1.09 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
|
9015960496
|
9015960496
90159-60496 SCREW WWASHER |
90159-60496 |
from US $0.62 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.70 |
||
|
9018906104
|
9018906104
90189-06104 CLIP |
90189-06104 |
from US $1.17 |
||
|
9018906208
|
9018906208
90189-06208 GROMMET SCREW |
90189-06208 |
from US $0.92 |
||
|
9018906224
|
9018906224
90189-06224 GROMMET SCREW |
90189-06224 |
US $1.79 |
||
|
9046706205C0
|
9046706205C0
90467-06205-C0 Clip, Front Fender Side Panel Protector, No.1 |
90467-06205-C0 |
from US $0.68 |
||
|
9095006124
|
9095006124
90950-06124 Tape, Seal |
90950-06124 |
from US $1.54 |
||
